Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line, 2005 Saturn Ion 3, 2005 Saturn Ion 2, and 2005 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the cooling fan motors and bolts.
Tighten: Tighten the bolts to 8 N.m (70 lb in).

Fig 1: View Of Cooling Fan Motors

Courtesy of GENERAL MOTORS CORP.

Align the scribe marks on the cooling fan blades and motor shafts.
Install the cooling fan blades.

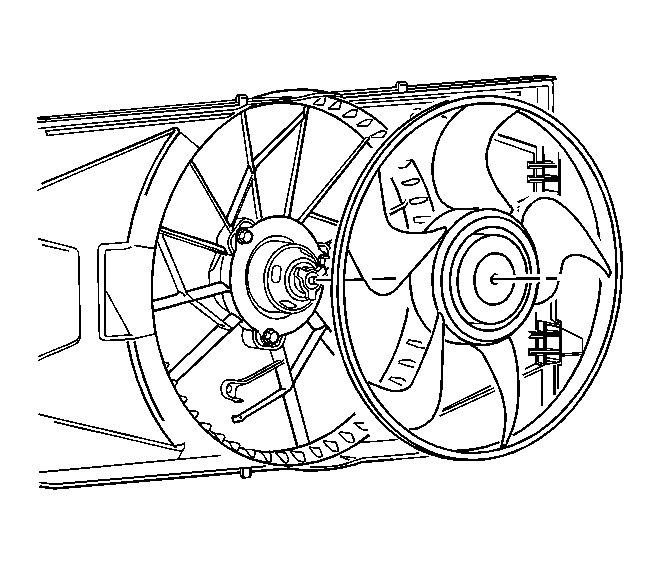

Fig 2: View Of Cooling Blade Fans

Courtesy of GENERAL MOTORS CORP.

Install new retaining clips to the cooling fan blades.

Fig 3: View Of Cooling Fan Blade Retaining Clips

Courtesy of GENERAL MOTORS CORP.

Install the cooling fan assembly into the vehicle. Refer to Cooling Fan and Shroud Replacement (2.2L (L61)) or Cooling Fan and Shroud Replacement (2.0L (LSJ)) .
