Power Roof Systems Component Views

WARNING: This page is about a different car, the 2005 Saturn Ion Red Line, 2005 Saturn Ion 3, 2005 Saturn Ion 2, and 2005 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

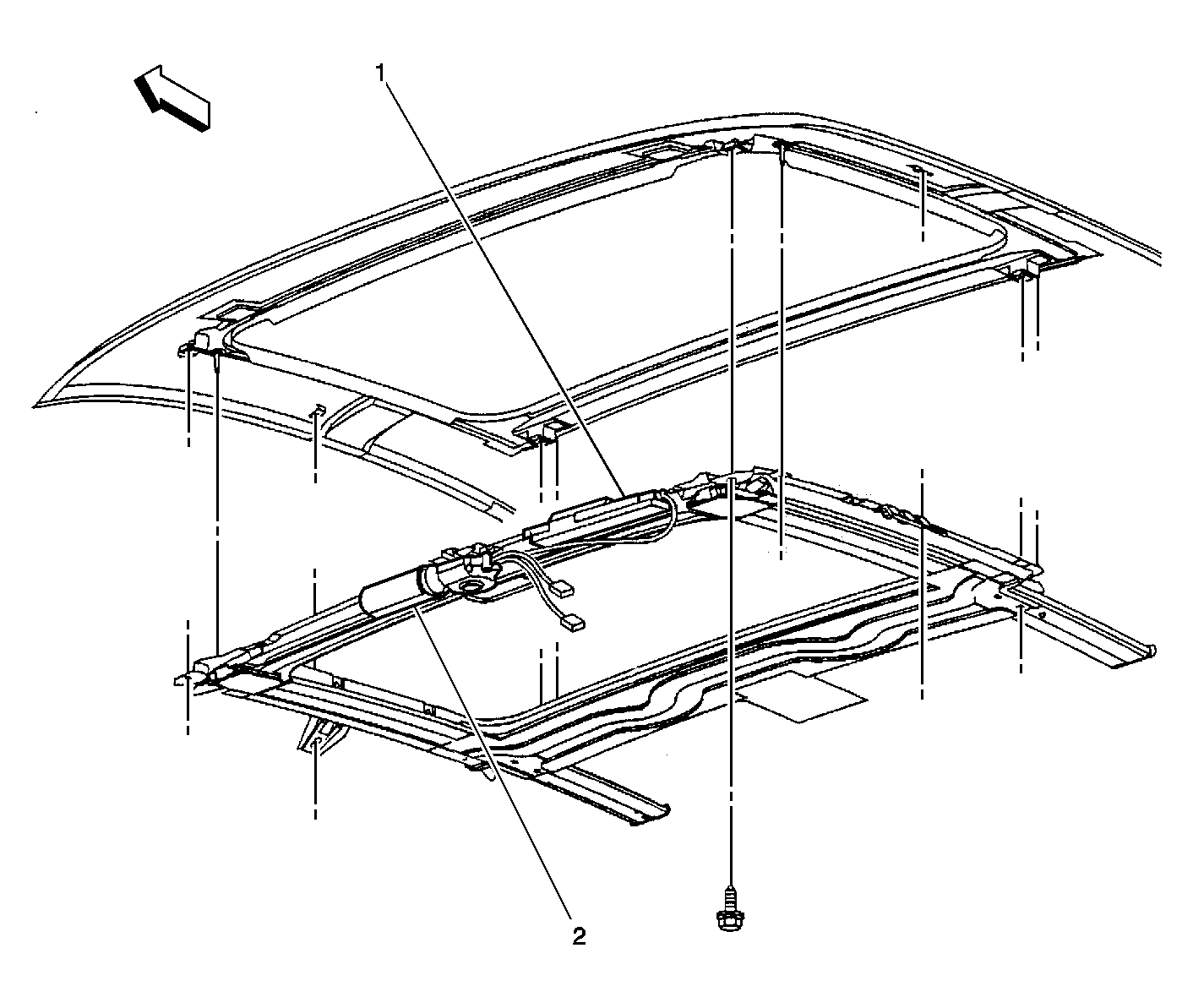

Fig 1: Sunroof Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Module
2	Sunroof Motor

Fig 2: Roof/Headliner (CF5 w/o C74) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch

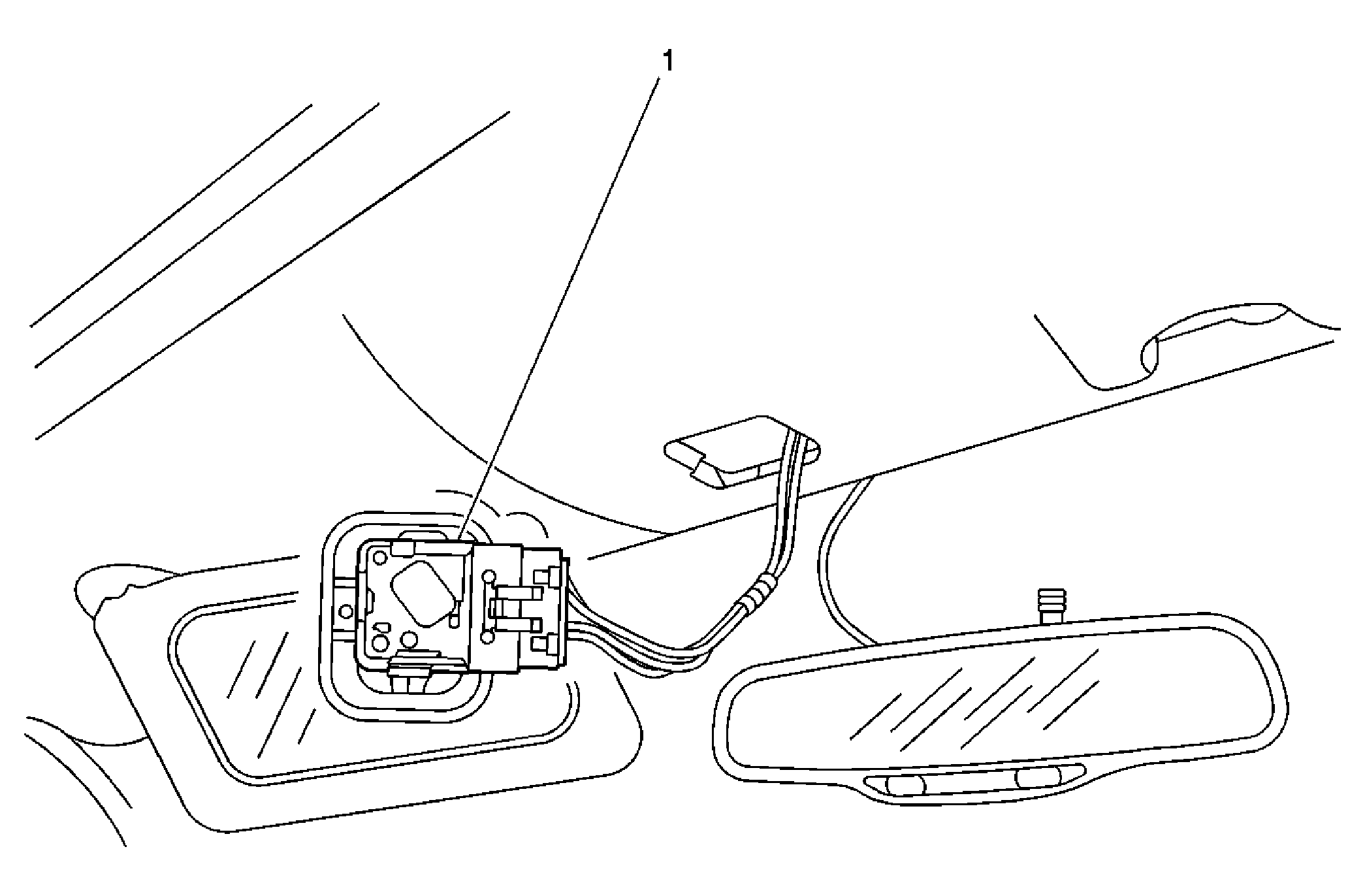

Fig 3: Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp (C74)
2	Sunroof Switch (CF5)
3	Sunroof Module (CF5)
4	Dome Lamp
