Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the engine support fixture long bar (2), from the SA9105E  across the engine compartment.
  2. Install the Engine support fixture legs (3) from theJ 43405  on the engine support fixture long bar and center above the engine.
  3. Install the engine support fixture hooks (4) and engine support fixture handle to the engine support cross bar.
  4. Place the engine support cross bar over the engine support long bar and connect the hooks to the engine lift brackets.

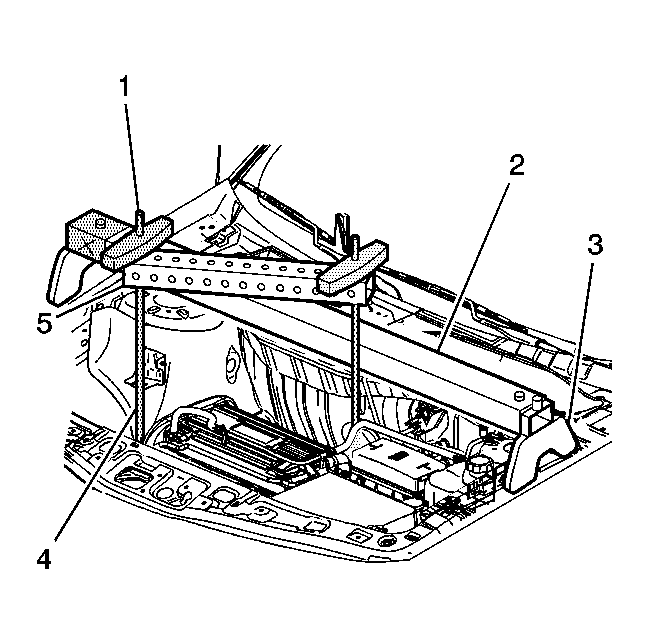

    5. Fig 1: View Of Engine Support Fixture
    GM854302Courtesy of GENERAL MOTORS CORP.
