Installation Procedure

  1. Install the anchor assembly into the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the anchor assembly bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

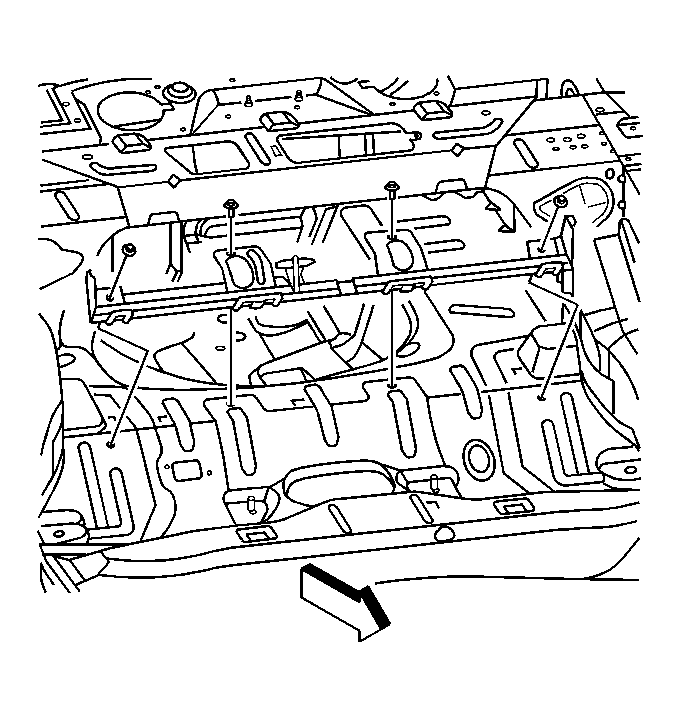

    3. Fig 1: View Of Lower Anchor Assembly
    GM876615Courtesy of GENERAL MOTORS CORP.
  3. Install the battery cable fastener to the anchor assembly.
  4. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear (Coupe) or Seat Cushion Replacement - Rear (Sedan) in Seats.
  5. Install the rear seat backs. Refer to Seat Back Replacement - Rear Split Folding in Seats.
