Shift Linkage Assemble

  1. Install the gear position guide on the shaft. Press the shaft until the middle groove is located centrally on the opening in the gear position guide.
  2. Install the dual interlock on the shaft and install a NEW rollpin.
  3. Install the tension spring taut with the spring ends on each side of the pin.
  4. Install the lockring. Do not place the preload washer on until the gear-changing mechanism has been fitted in the gear box.
    5. Fig 1: Exploded View Of Shaft
    GM1407802Courtesy of GENERAL MOTORS CORP.
  5. If any shift forks, shift shafts, or shift shaft blocks were disassembled, reassemble the shift shafts by driving new retaining pins into the shift forks or shift shaft blocks.
    6. Fig 2: Exploded View Of Shift Shaft Fork
    GM895303Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: While assembling shafts, ensure that the shift shaft block notches line up.
  6. Install all shift shafts partially onto the shift control bracket assembly. Partial insertion of the shift shafts provide considerable end play during the installation of the gear shift mechanism.
    7. Fig 3: Locating Shift Shaft Assemblies
    GM1591692Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the gear position mechanism engages the shift blocks.
  7. Install the gear position mechanism with the spring ends on each side of the guide lug and the dual interlock in the driver groove.
    8. Fig 4: Installing Gear Position Mechanism
    GM1407801Courtesy of GENERAL MOTORS CORP.

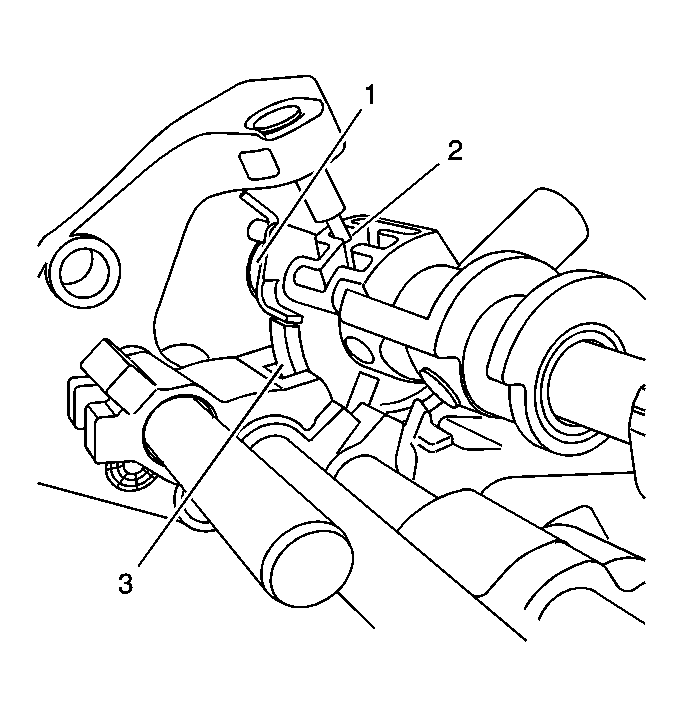

  8. While installing the gear shift mechanism, simultaneously align the following:
    • the shift position mechanism's shaft to the shift control bracket assembly hole (1).
    • the shift control bracket pin to the shift position mechanism shift pattern (2).
    • The brass double position blocker to the shift shaft block notches (3). The brass double position blocker should be aligned properly with the shift cylinder.
    9. Fig 5: Aligning Gear Shift Mechanism
    GM1591696Courtesy of GENERAL MOTORS CORP.
  9. Set the shift linkage assembly upright to encourage components to settle into position.
    10. Fig 6: Identifying Shift Linkage Assembly
    GM1591699Courtesy of GENERAL MOTORS CORP.
  10. Align the shift forks with synchronizer sleeves and install the shift linkage to the clutch housing case.
    11. Fig 7: View Of Shift Linkage Assembly
    GM1591714Courtesy of GENERAL MOTORS CORP.
