Home › Saturn › 2004 › L300 4D Wagon, 2.2 F › Repair and Diagnosis › Engine Performance › System › Engine Controls - 2.2L (L61) (Introduction) › Repair Instructions › Intake Air Temperature (IAT) Sensor Replacement › Installation Procedure

Installation Procedure

  1. Install the IAT sensor.
  2. Connect the IAT sensor harness connector. Push in the connector until a click is heard, and then pull back to confirm a positive engagement.

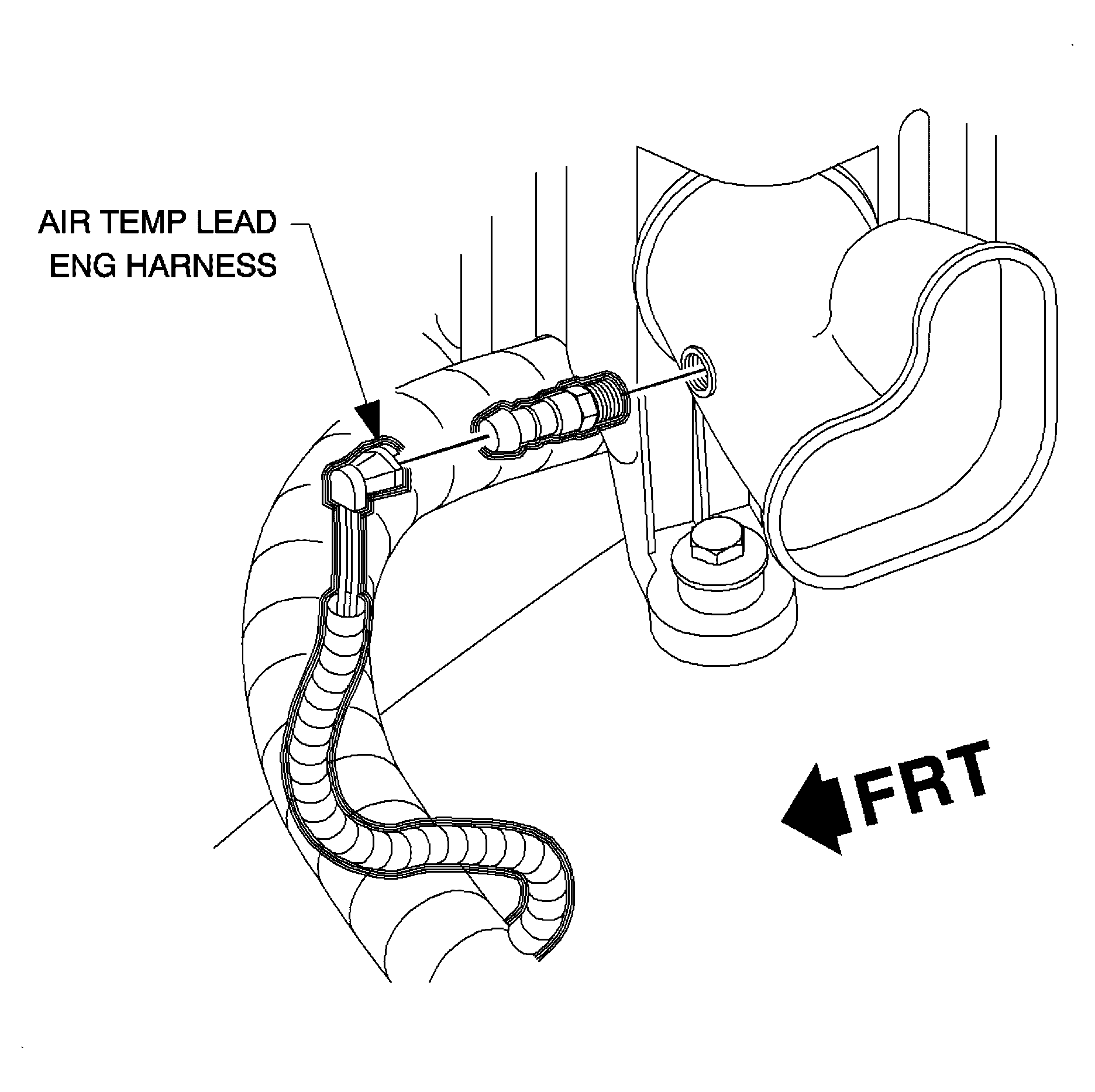

    3. Fig 1: Removing & Installing Intake Air Temperature Sensor
    GM870620Courtesy of GENERAL MOTORS CORP.
