Power Seat Systems Component Views

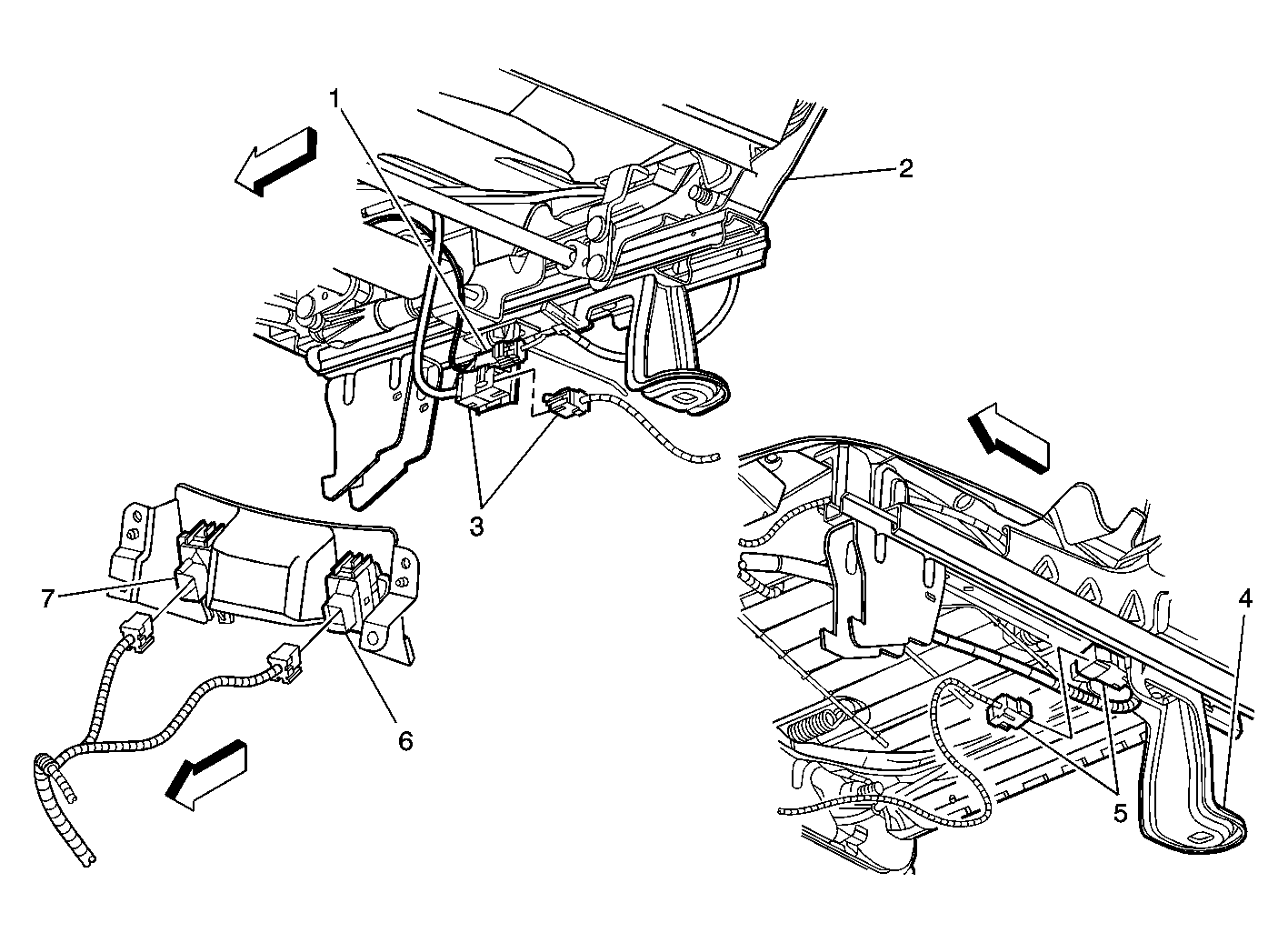

Fig 1: View Of Power Seat Systems Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Not Used - Early Production
2	Seat - Driver
3	C305 - To the Driver Power/Heated Seat (w/ AG1,KA1)
4	Seat - Front Passenger
5	C306 - To the Front Passenger Heated Seat (w/ KA1)
6	Driver Heated Seat Switch (w/ KA1) (Mounted Near the Shifter Assembly)
7	Front Passenger Heated Seat Switch (w/ KA1) (Mounted Near the Shifter Assembly)
