ABS Schematics

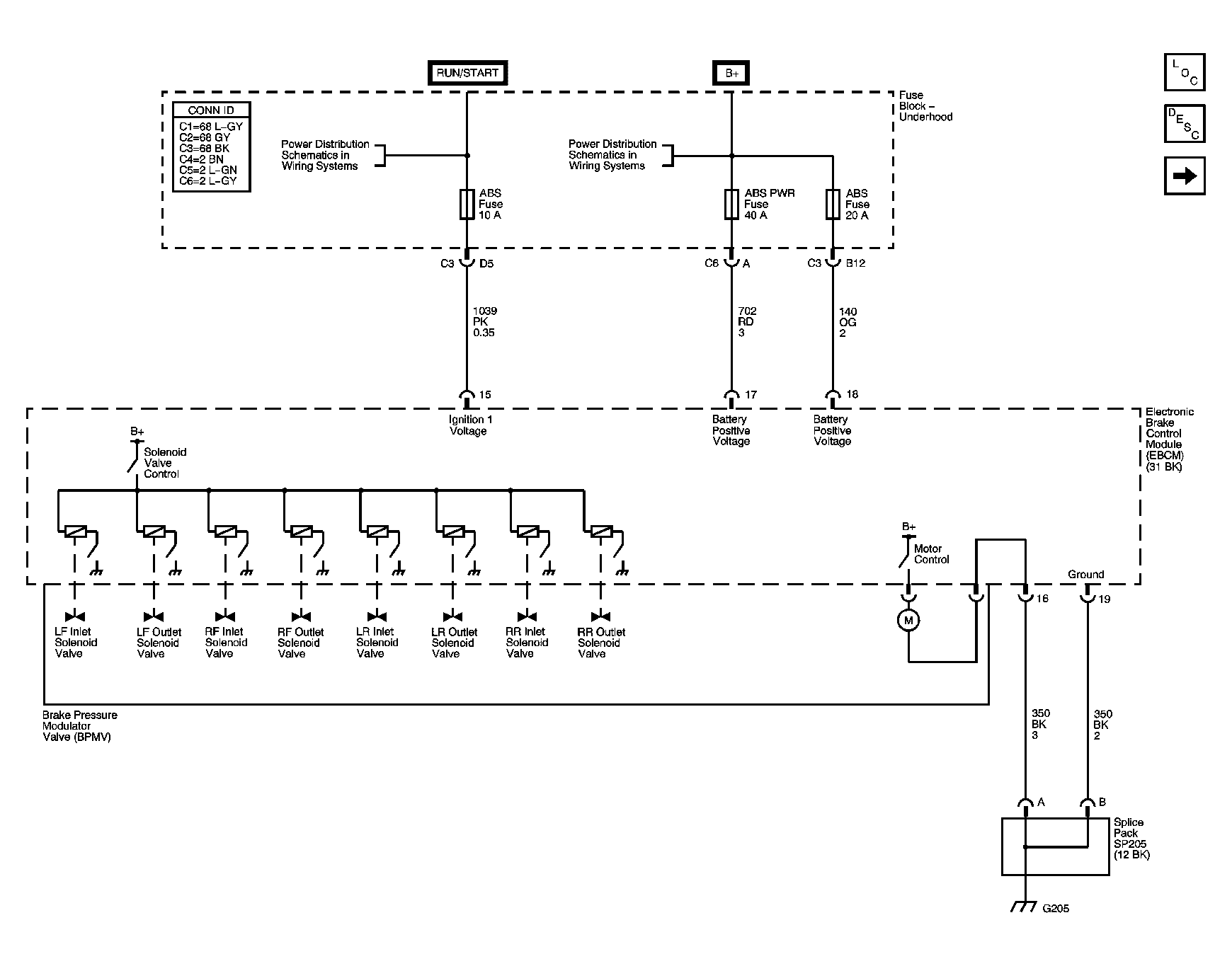

Fig 1: View Of EBCM Power and Ground Schematic
GM1339384Courtesy of GENERAL MOTORS CORP.

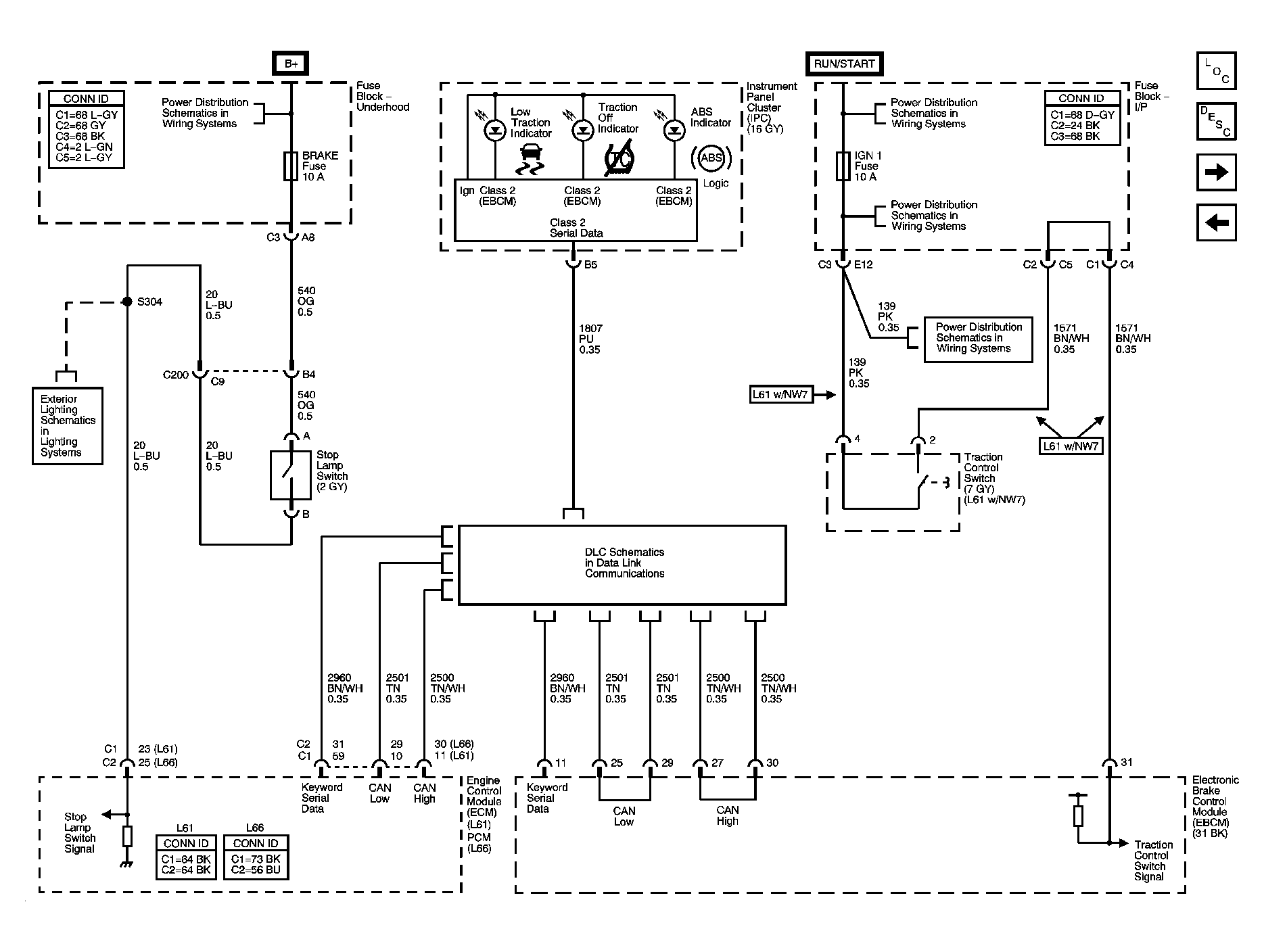

Fig 2: View Of Indicators and TC Switch Schematic
GM1339386Courtesy of GENERAL MOTORS CORP.
Fig 3: View Of Wheel Speed Sensors Schematic
GM1181397Courtesy of GENERAL MOTORS CORP.
