Installation Procedure

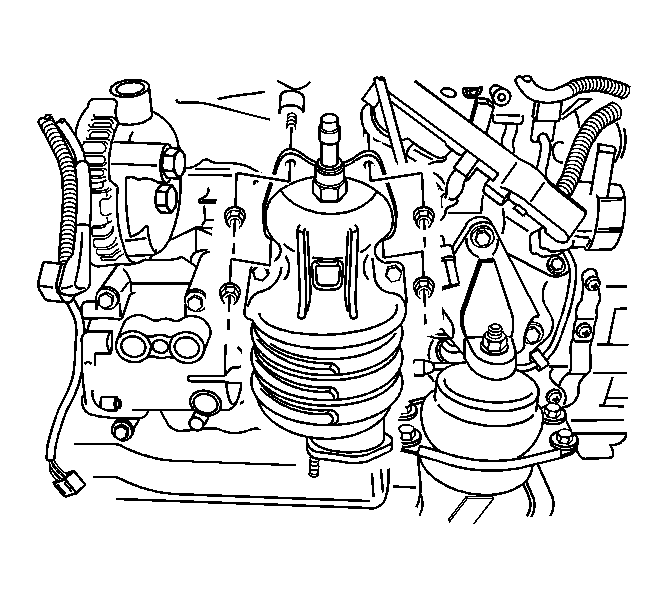

    Fig 1: View Of Catalytic Converter
    GM1227050Courtesy of GENERAL MOTORS CORP.
  1. Install the catalytic converter.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the converter nuts.

    Tighten:  Tighten the nuts to 18 N.m (13 lb ft).

  3. Move the radiator assembly to its original position.
  4. Install the exhaust manifold pipe. Refer to Exhaust Manifold Pipe Replacement (L66)  or Exhaust Manifold Pipe Replacement (L61) .

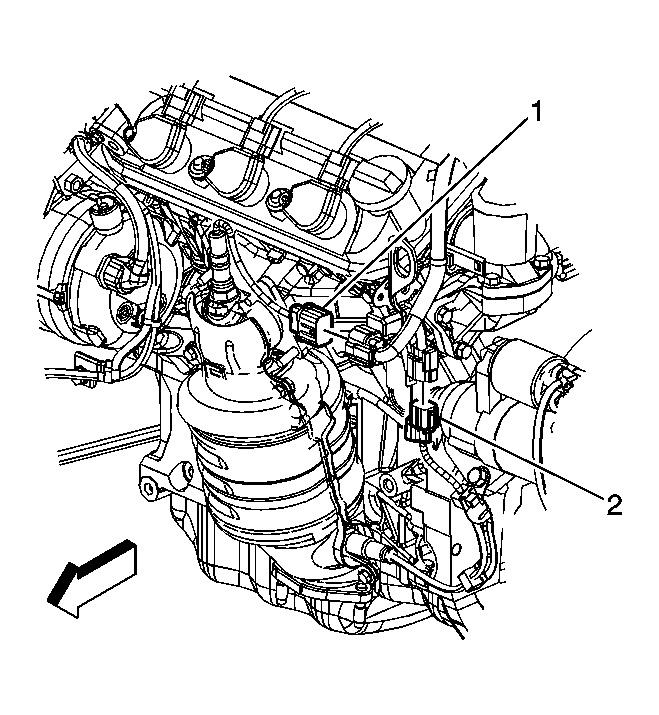

    5. Fig 2: View Of 2 Sensors
    GM1228621Courtesy of GENERAL MOTORS CORP.
  5. Connect the 02 sensors (1, 2).
    6. Fig 3: View Of Front Lower Air Deflector
    GM930960Courtesy of GENERAL MOTORS CORP.
  6. Install the front lower air deflector.
  7. Lower the vehicle.
