Range Selector Displays Incorrect Range: Notes

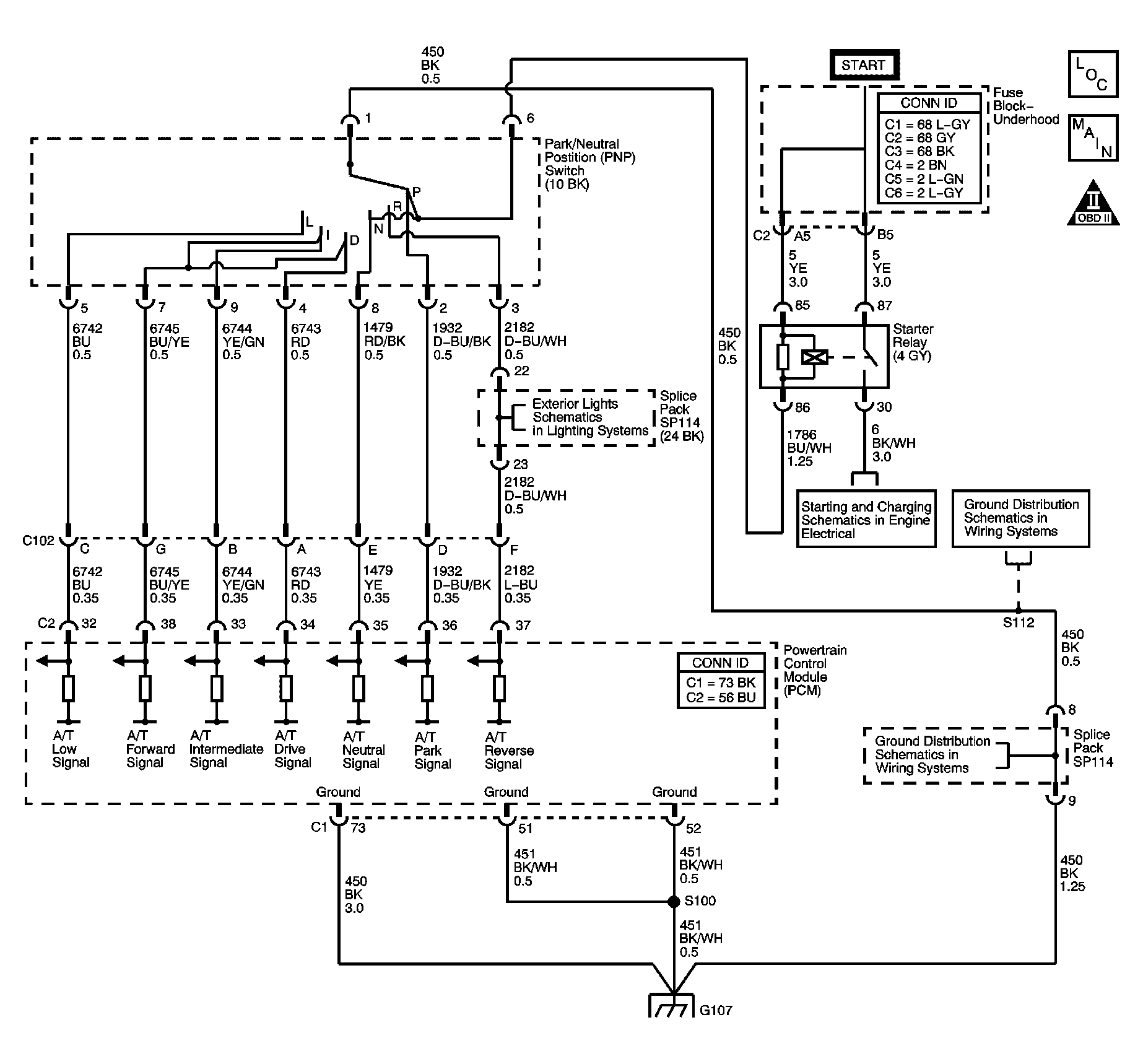

Fig 1: Range Selector Displays Incorrect Range Schematics
GM1246907Courtesy of GENERAL MOTORS CORP.
