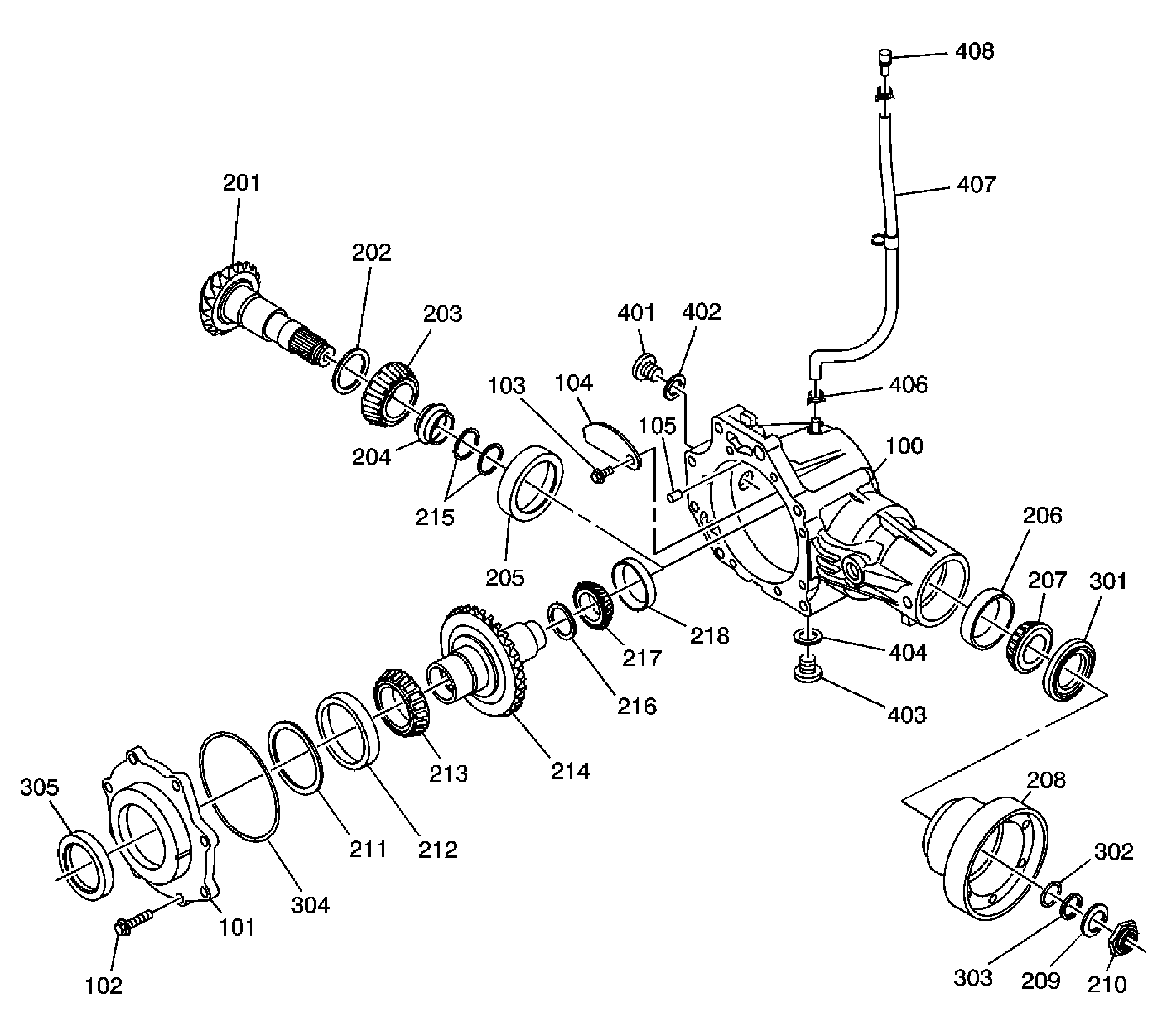

Transfer Case Disassembled View
| Callout | Component Name |
|---|---|
| 100 | Case |
| 101 | Cover |
| 102 | Bolt |
| 103 | Bolt |
| 104 | Ventilation Baffle |
| 105 | Locating Pin - Transfer Case-to-Transaxle |
| 201 | Output Shaft |
| 202 | Shim - 40 mm |
| 203 | Bearing |
| 204 | Spacer |
| 205 | Race |
| 206 | Race |
| 207 | Bearing |
| 208 | Output Yoke |
| 209 | Washer |
| 210 | Nut |
| 211 | Shim - 80 mm |
| 212 | Race |
| 213 | Bearing |
| 214 | Input Gear |
| 215 | Washer |
| 216 | Shim - 25 mm |
| 217 | Bearing |
| 218 | Race |
| 301 | Seal - Output Shaft |
| 302 | O-Ring |
| 303 | Sealing Washer |
| 304 | O-Ring |
| 305 | Seal - Input Shaft |
| 401 | Fill Plug |
| 402 | Washer |
| 403 | Drain Plug |
| 404 | Washer |
| 406 | Clamp |
| 407 | Ventilation Hose |
| 408 | Ventilation Valve |
