Front Differential Assembly Installation

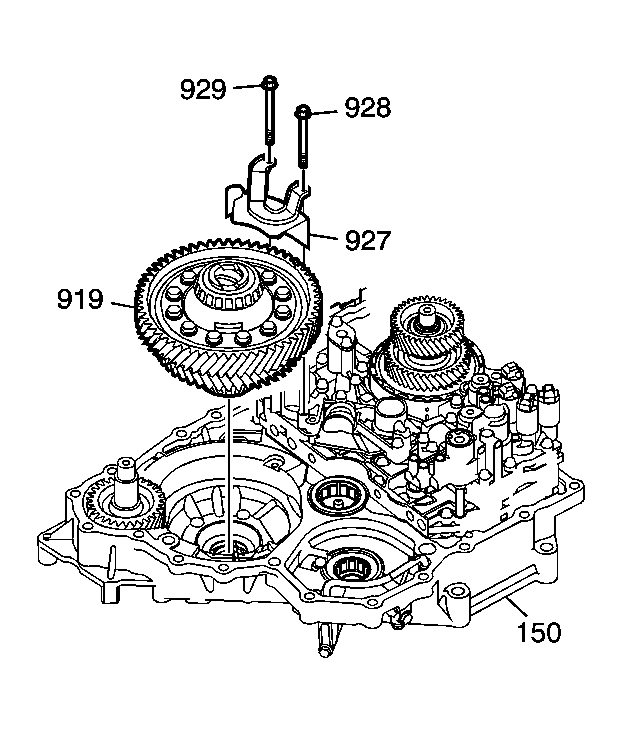

Fig 1: Front Differential Assembly, Automatic Transmission Fluid Baffle & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the front differential assembly (919) into the torque converter housing assembly (150).
Install the automatic transmission fluid baffle (927), ensuring that the differential is clear of the baffle.
Install the fluid baffle M6x1.0x80 mm bolt (928) and the M6x1.0x95 mm bolt (929).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the fluid baffle bolts.
Tighten: Tighten the bolts to 12 N.m (106 lb in).
