DTC P0121: Notes

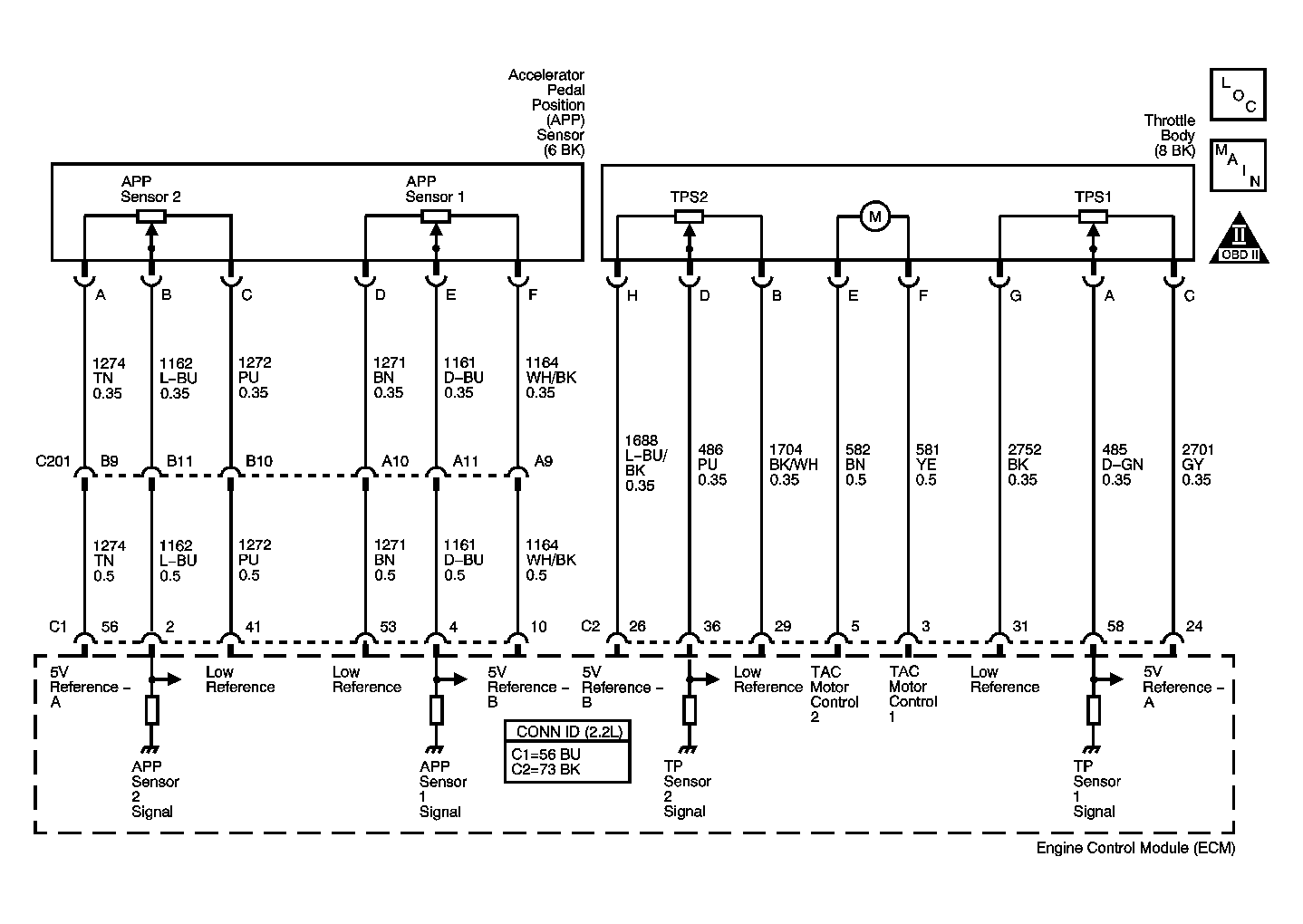

Fig 1: Engine Control Module (ECM) Circuit
GM1523060Courtesy of GENERAL MOTORS CORP.
