Checkballs Installation

Install the seven checkballs into the proper locations on the channel plate.

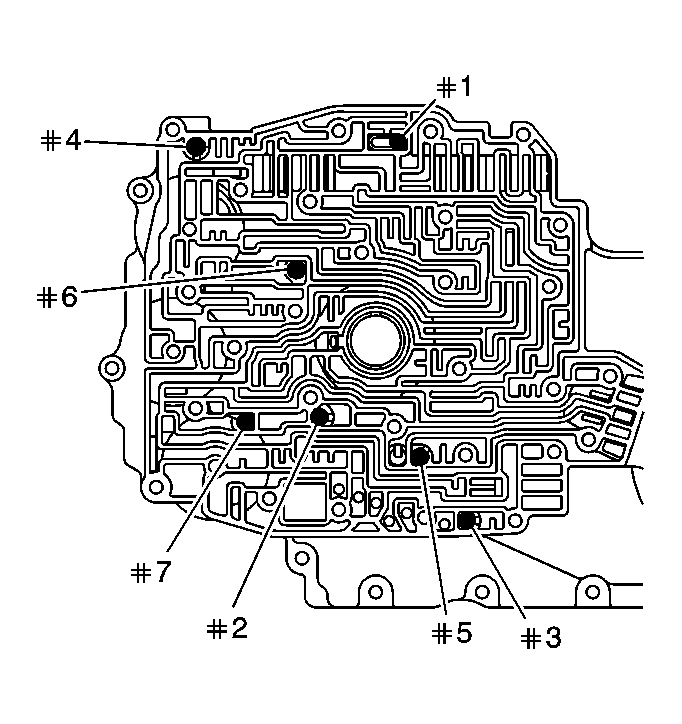

Fig 1: Identifying Channel Plate Checkballs
GM55094Courtesy of GENERAL MOTORS CORP.
