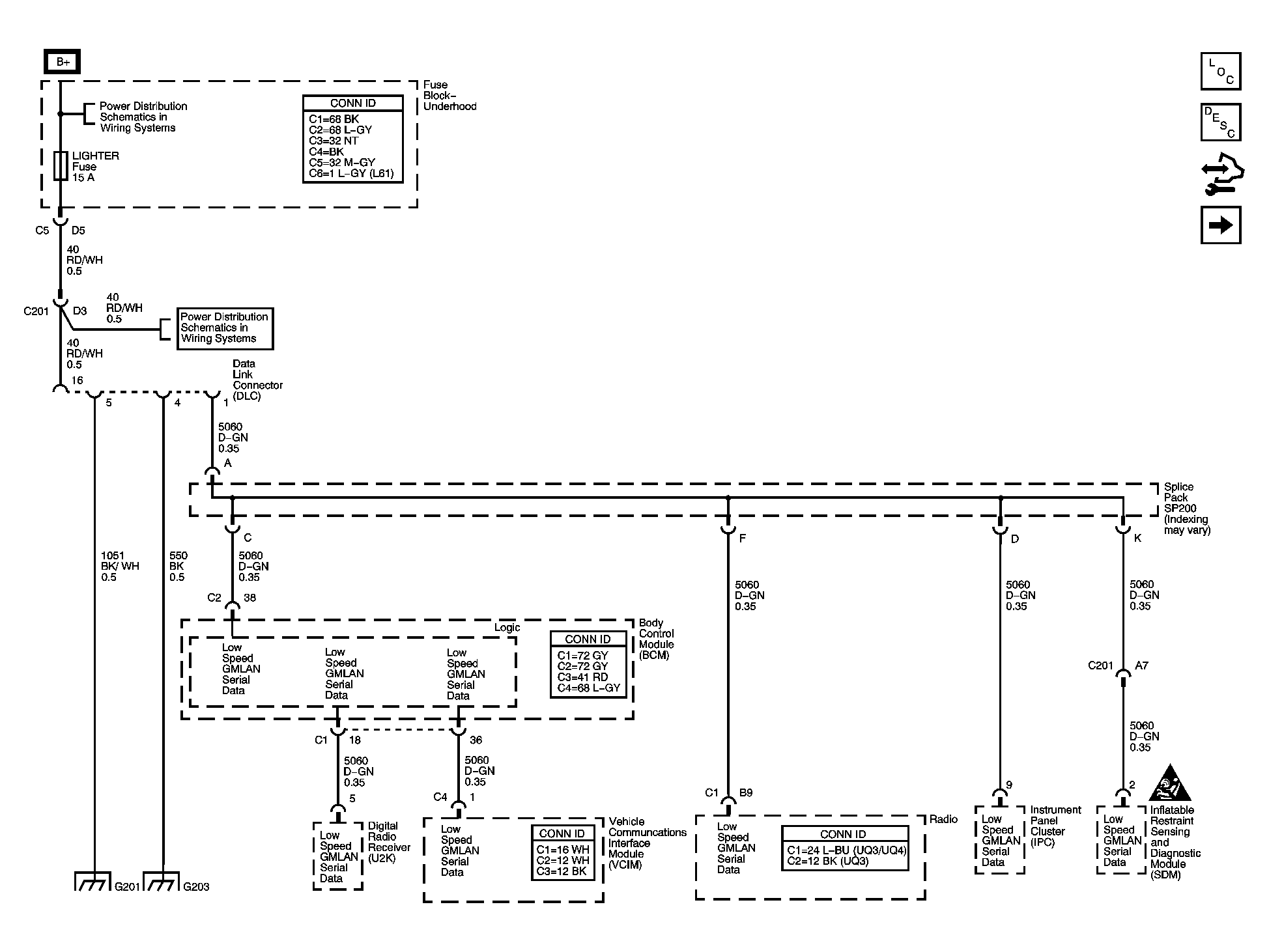

Fig 1: DLC Power, Ground, and Low Speed GMLAN Schematic
Courtesy of GENERAL MOTORS CORP.

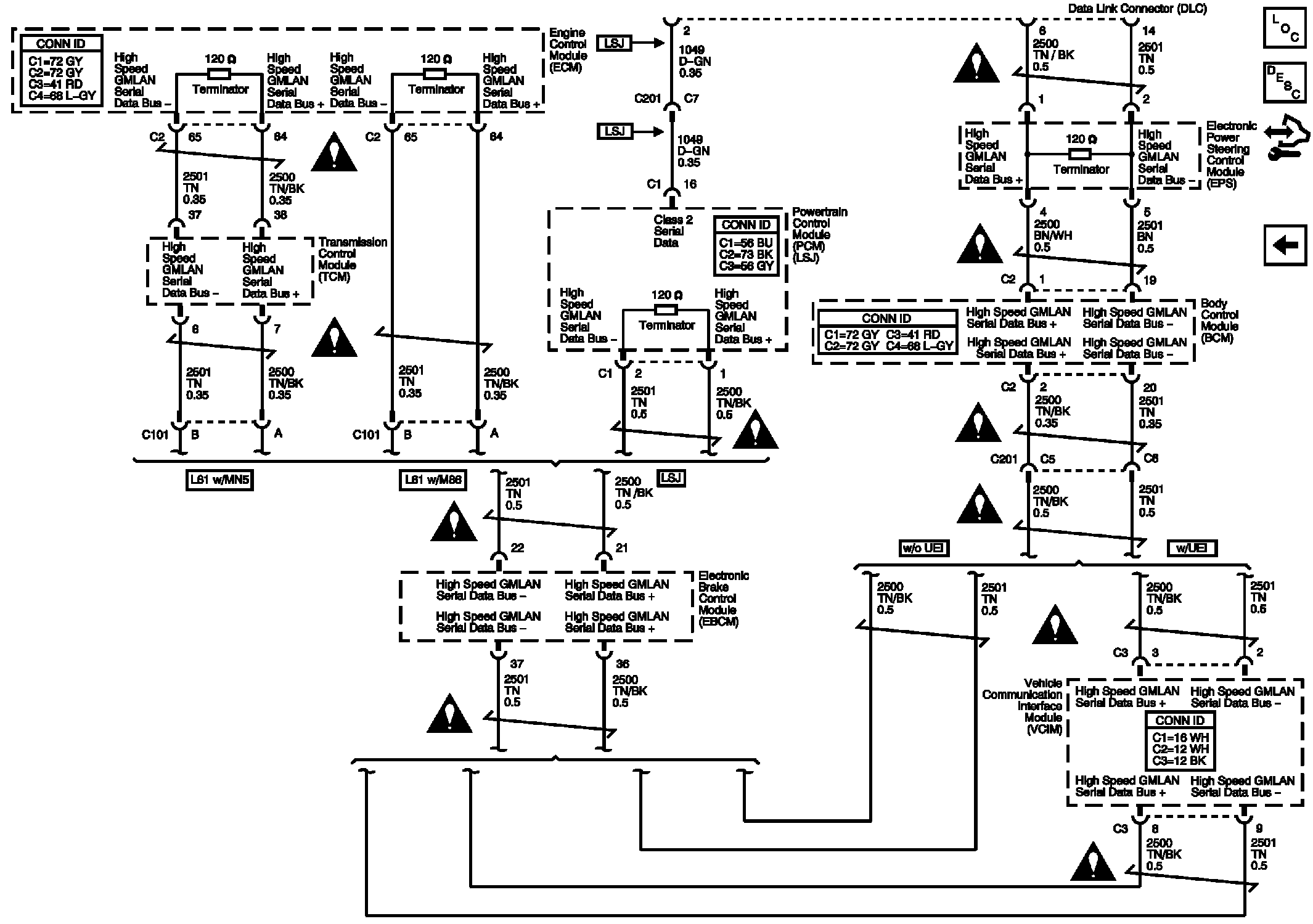

Fig 2: DLC High Speed, Serial Data, and Class 2 Schematic
