ABS Schematics
ABS Schematics

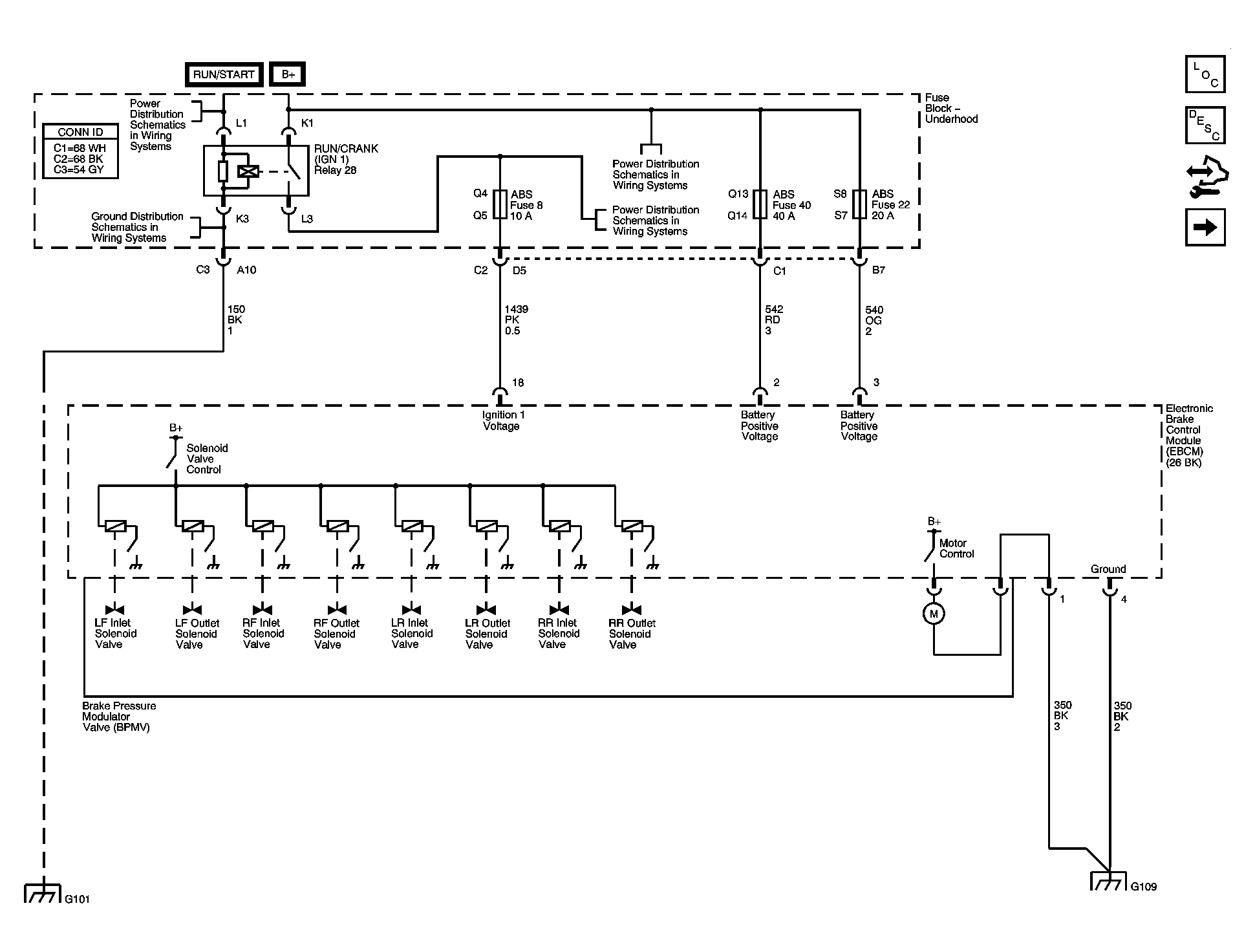

Fig 1: Power, Ground, and BPMV Controls Schematics
Courtesy of GENERAL MOTORS CORP.

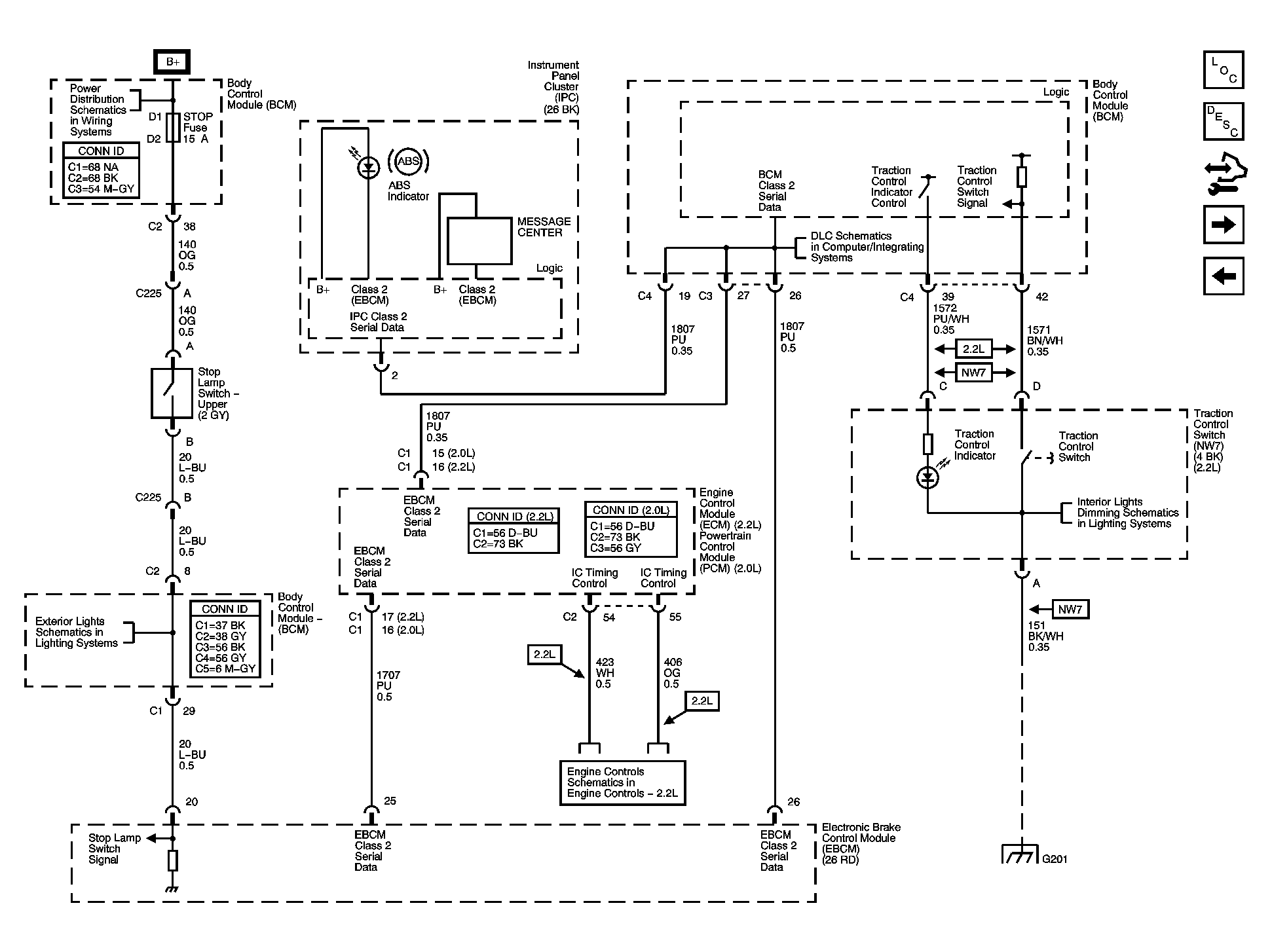

Fig 2: Traction Control, DLC, and Indicators Schematics
Courtesy of GENERAL MOTORS CORP.

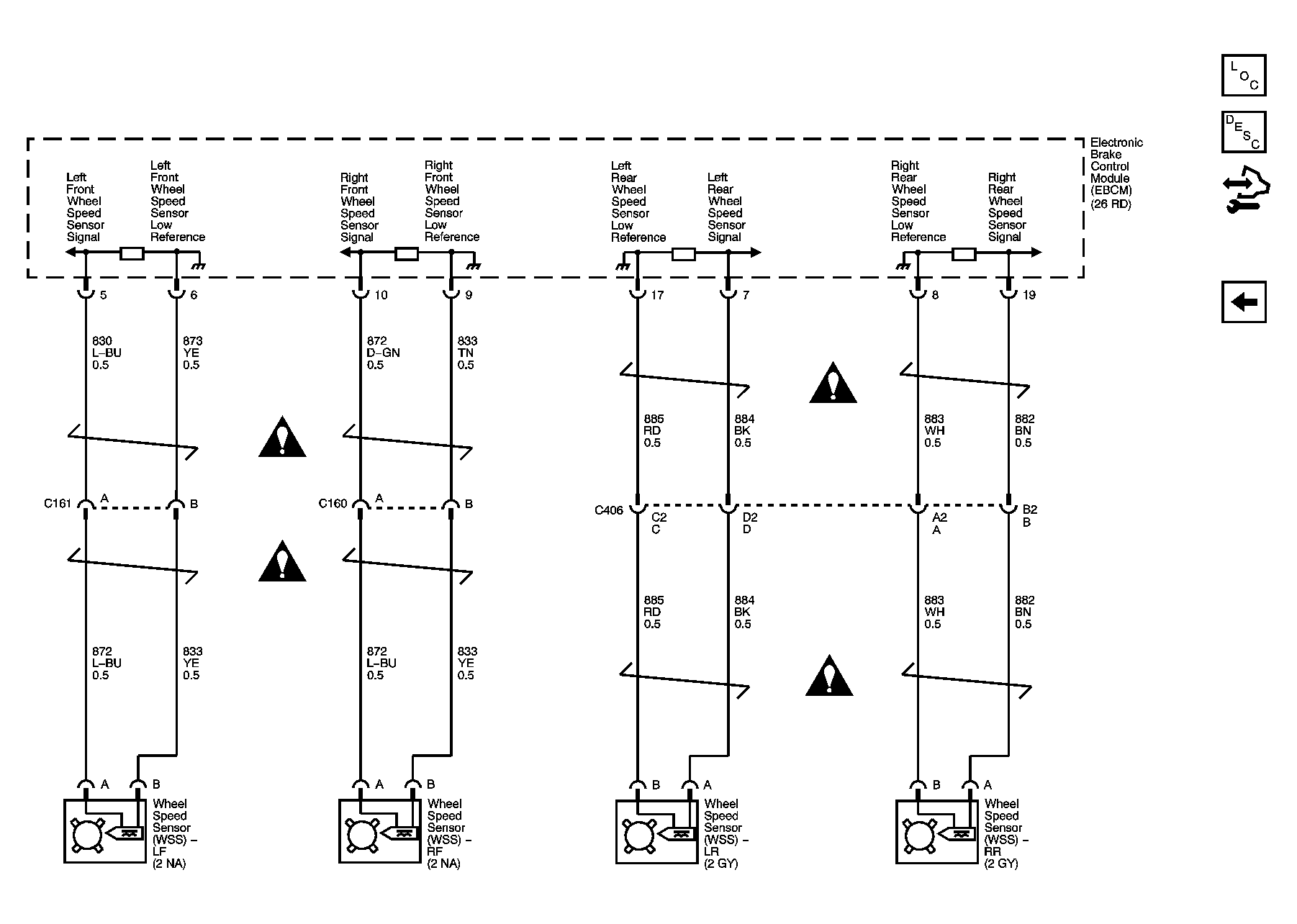

Fig 3: Wheel Speed Sensors Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
