Home › Saturn › 2005 › Ion Red Line › Repair and Diagnosis › Engine Performance › System › Engine Controls - DTC P0341 - DTC P1680 › Diagnostic Information & Procedures › DTC P0449 › Notes

DTC P0449: Notes

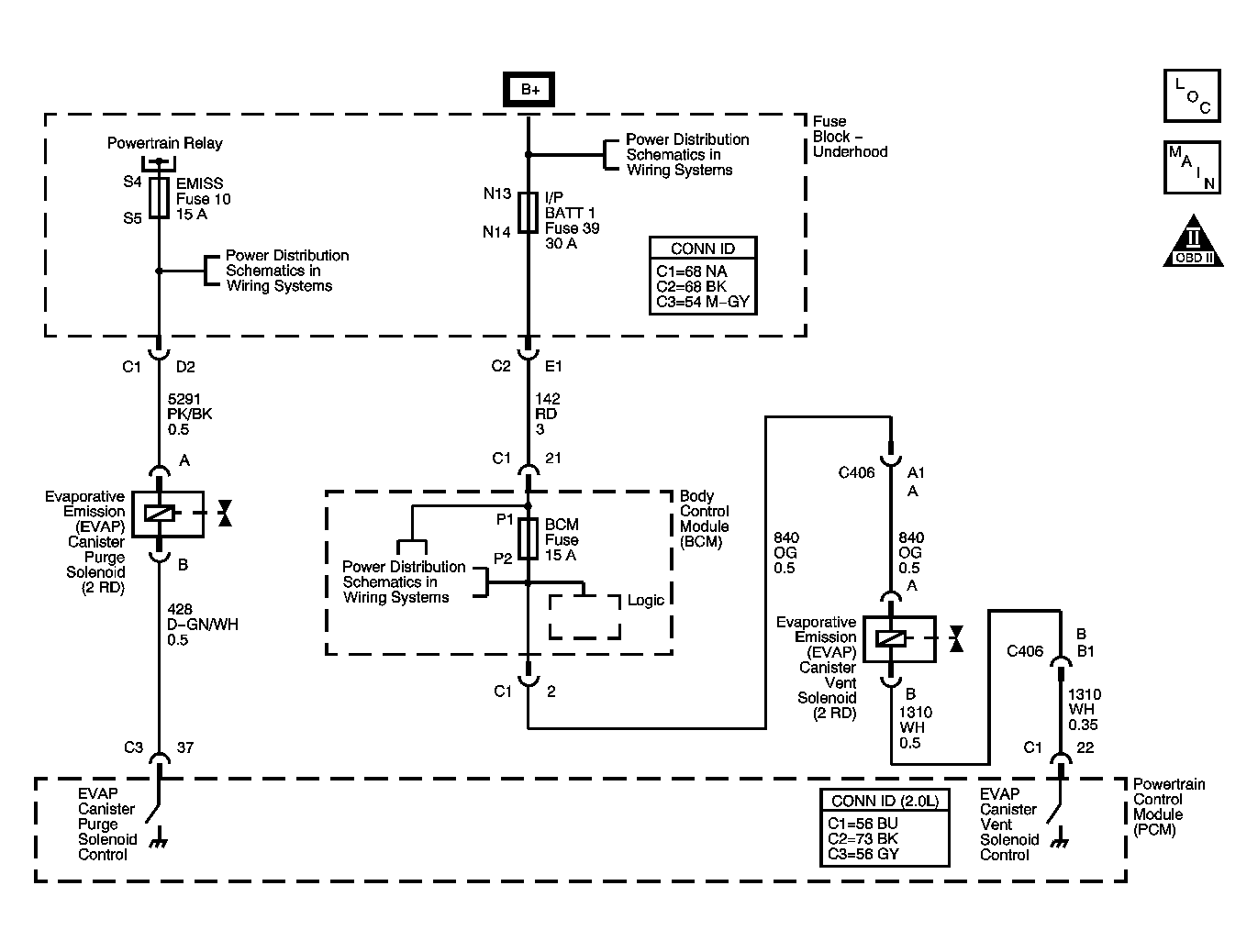

Fig 1: EVAP Canister Purge And Vent Solenoid Valves Circuit
GM1397297Courtesy of GENERAL MOTORS CORP.
