Home › Saturn › 2005 › Ion Red Line › Repair and Diagnosis › Engine Performance › System › Engine Controls - DTC P1682 - DTC P2229 › Diagnostic Information & Procedures › DTC P2229 › Notes

DTC P2229: Notes

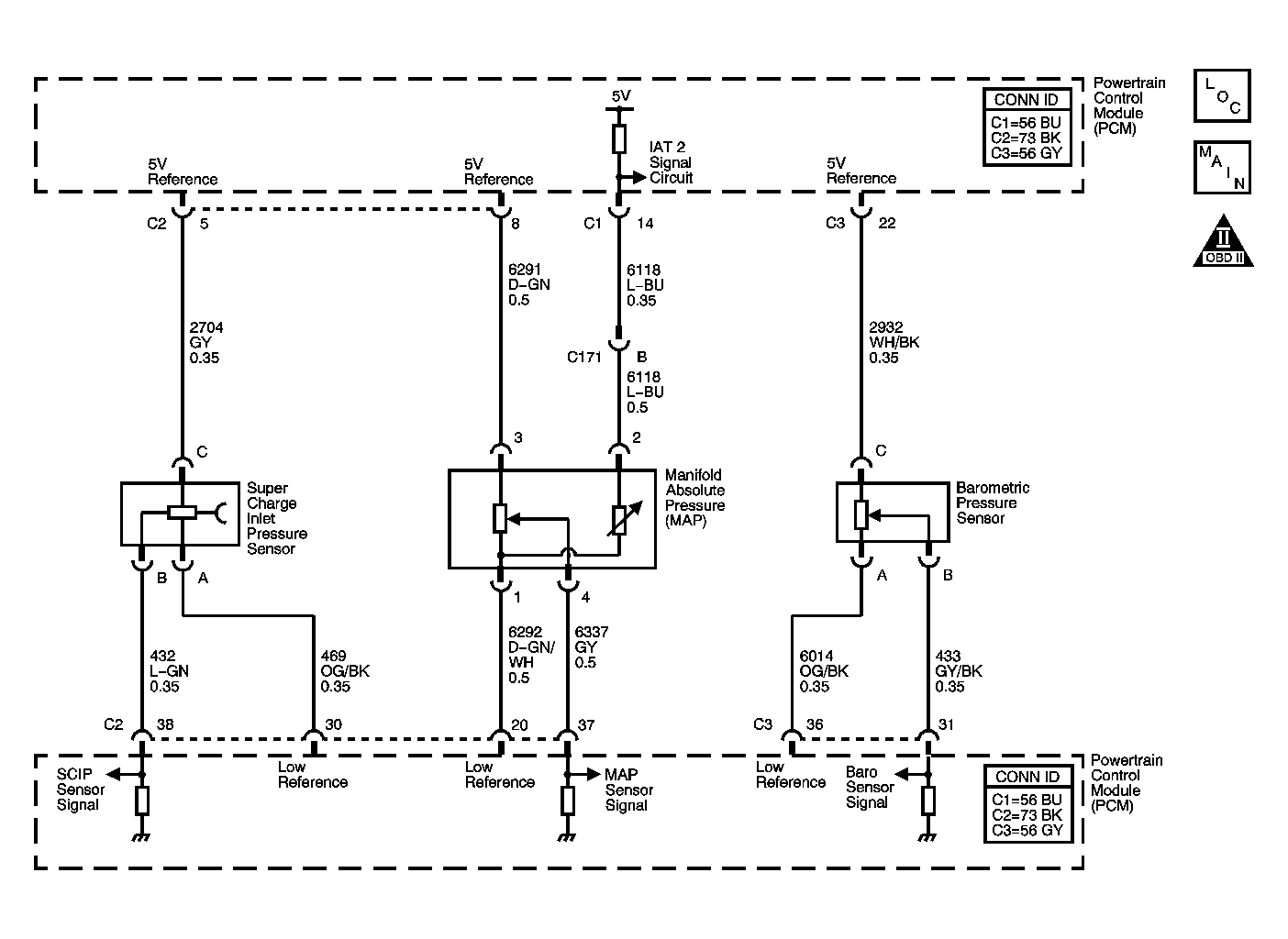

Fig 1: BARO Sensor, MAP Sensor, & SCIP Sensor Circuit
GM1403221Courtesy of GENERAL MOTORS CORP.
