Steering Wheel Control Switch Assembly Replacement

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

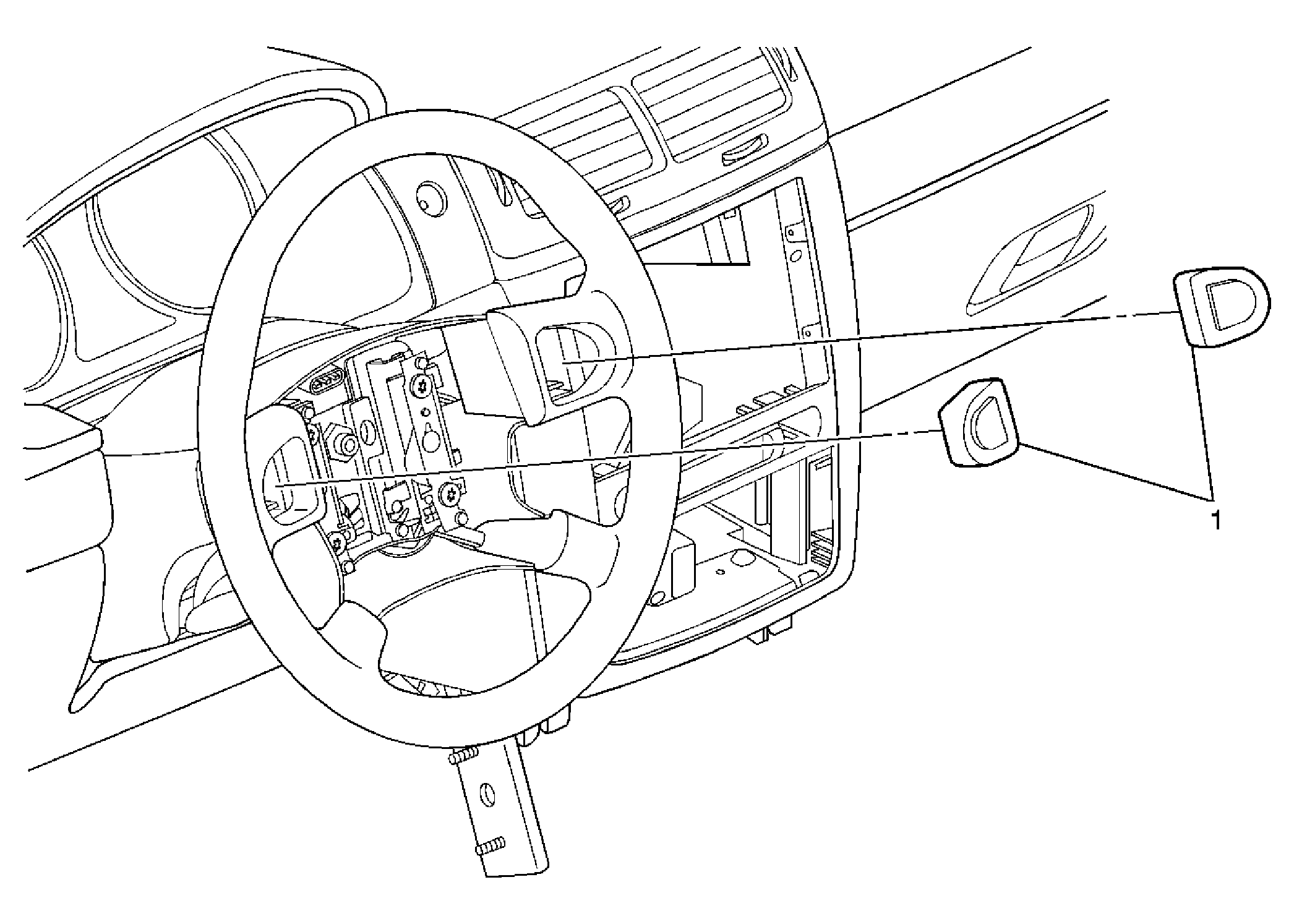

Fig 1: Steering Wheel Control Switch Assembly
GM1549896Courtesy of GENERAL MOTORS CORP.
Steering Wheel Control Switch Assembly Replacement

Callout Component Name
1 Steering Wheel Control Switch Assembly
Tip:
  • Pry out the switch using a small flat-bladed tool.
  • Disconnect the electrical connectors.
