Door Lock/Indicator Schematics

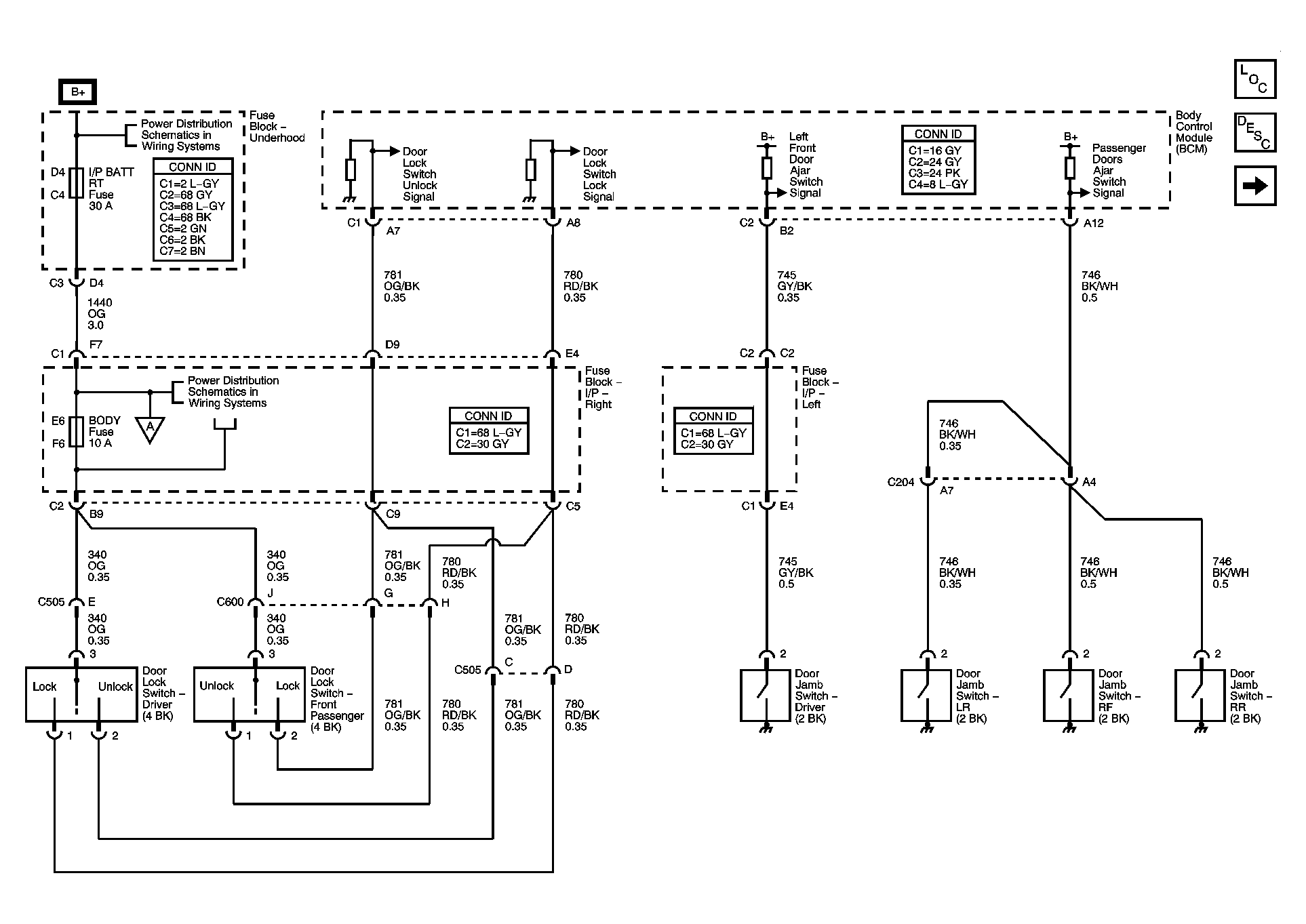

Fig 1: Door Lock Switches & Door Jamb Switches Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

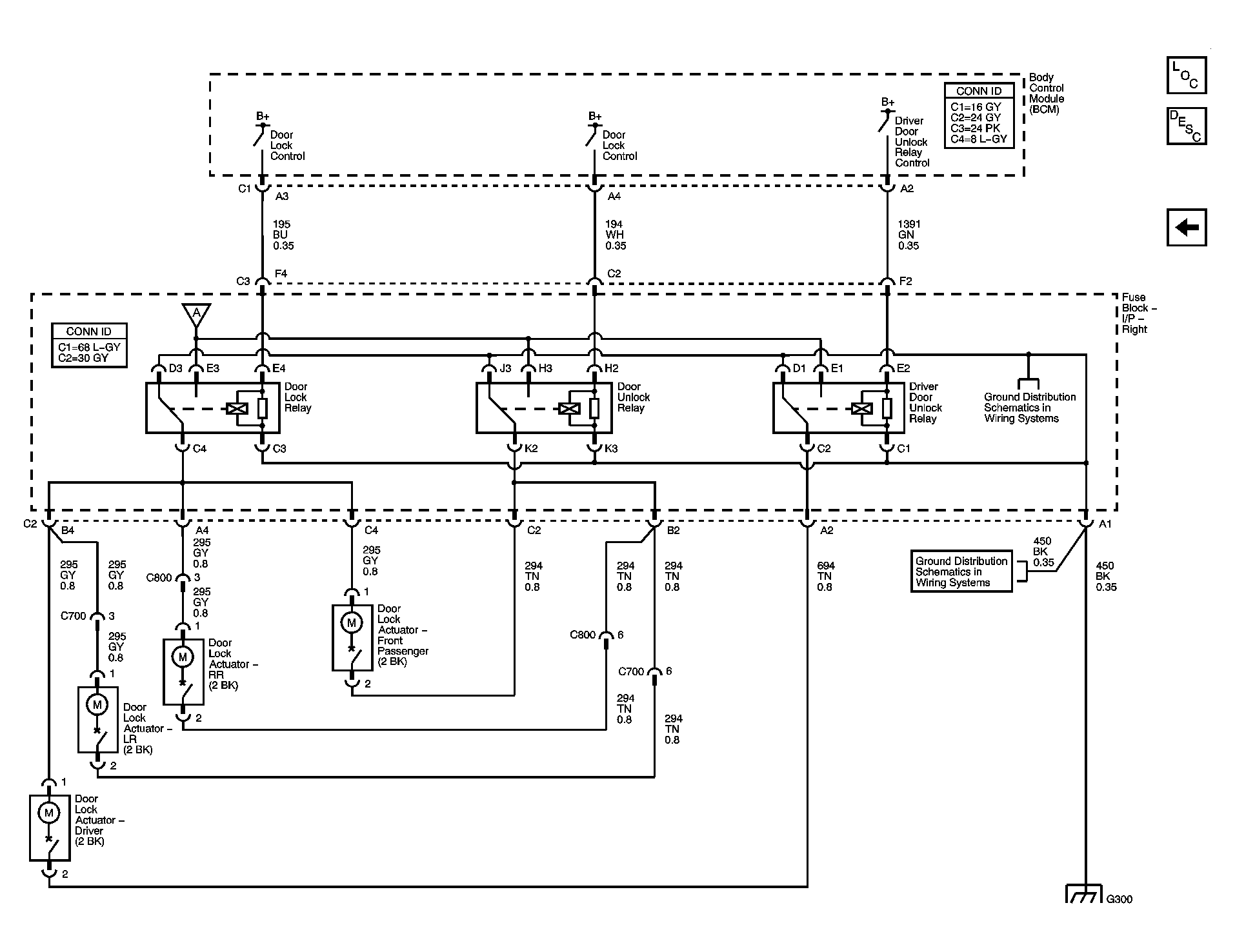

Fig 2: Door Lock Actuators Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
