DTC C0245: Notes

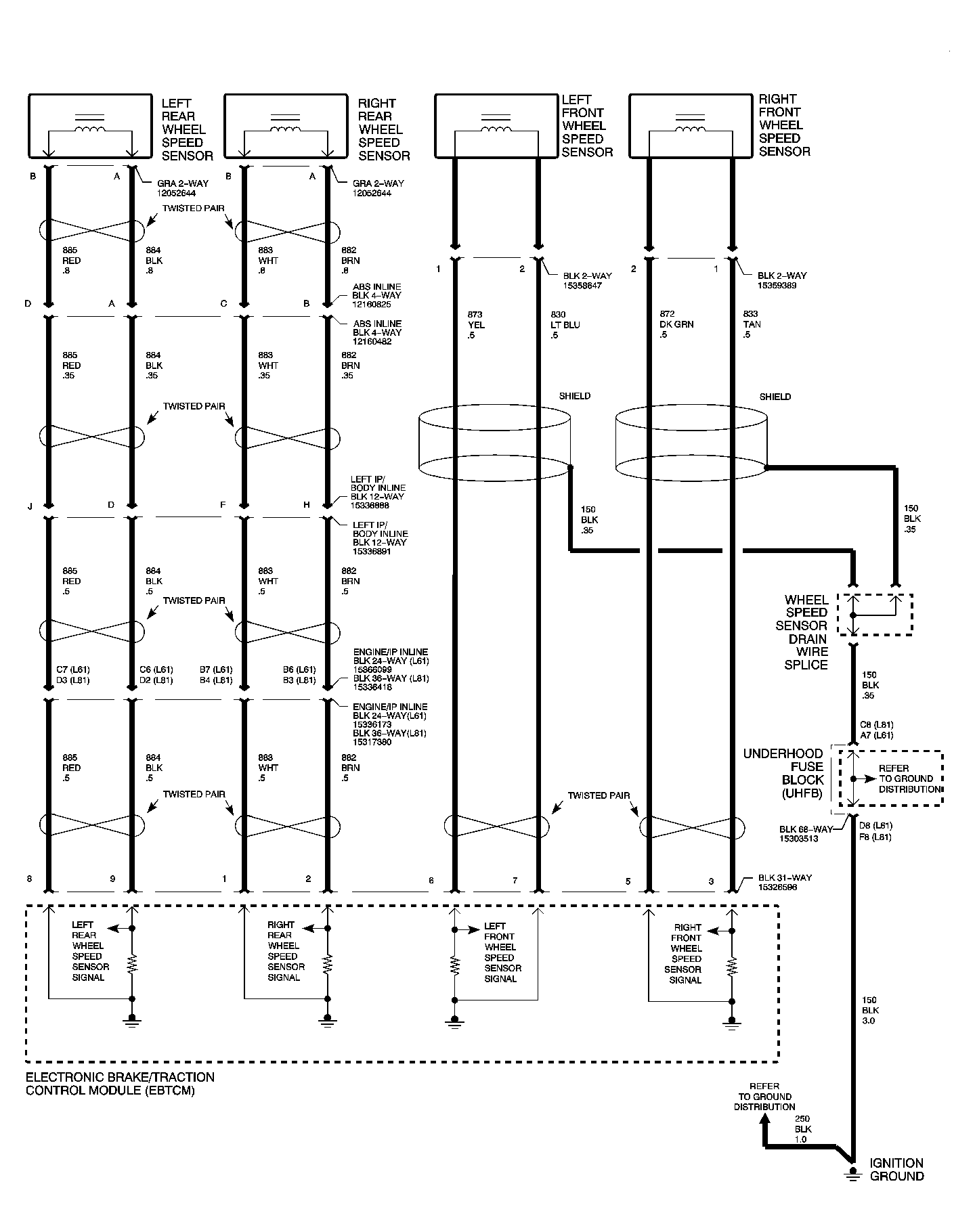

Fig 1: Wheel Speed Sensors Wiring Schematic
GM895647Courtesy of GENERAL MOTORS CORP.
