Automatic Transmission Electronic Component Views

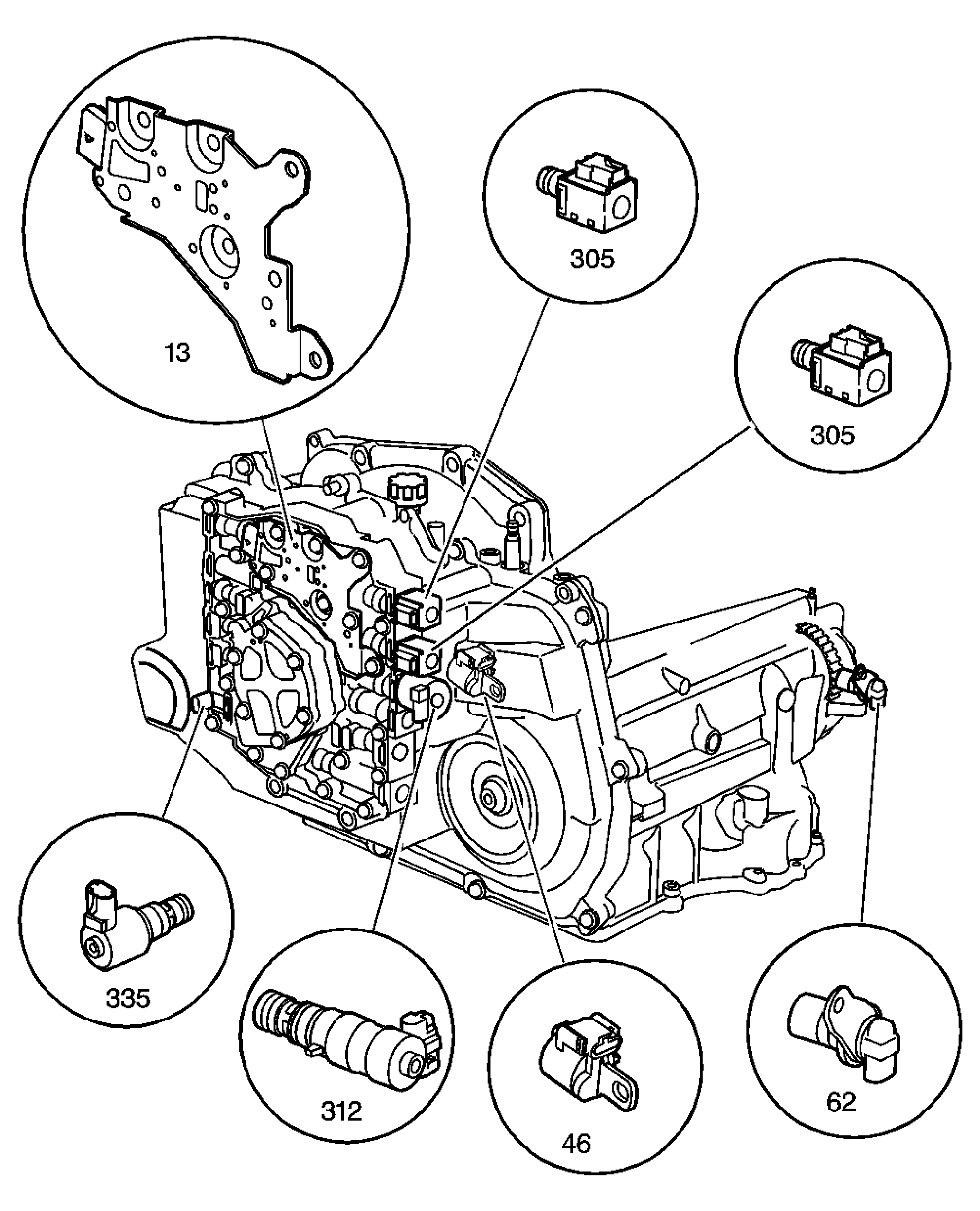

Fig 1: Electronic Components Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
13	TFP Manual Valve Position Switch Assembly
46	Input Speed Sensor
62	Output Speed Sensor
305	1-2 and 2-3 Shift Solenoid Valves
305	1-2 and 2-3 Shift Solenoid Valves
312	Pressure Control Solenoid
335	TCC Control PWM Solenoid
