Torque Converter Installation

Tools Required

J 21366  Torque Converter Holding Strap. See Special Tools .

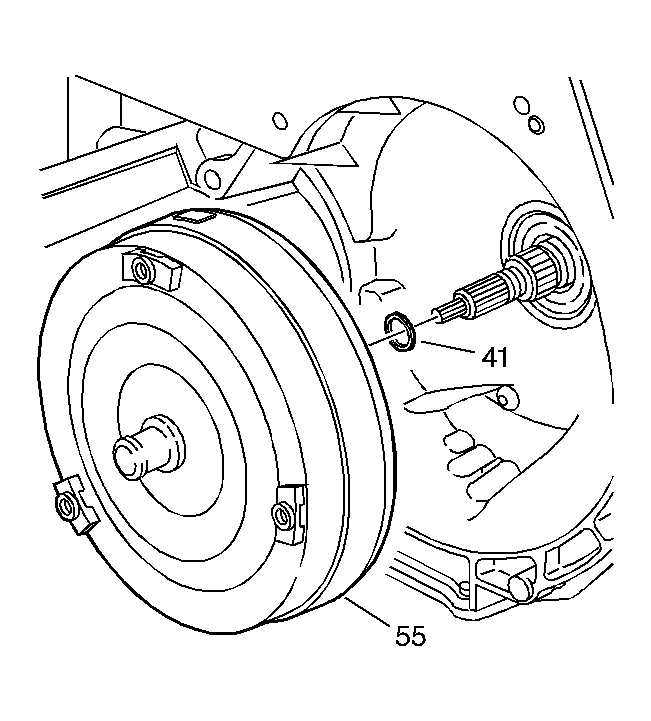

Fig 1: View Of Turbine Shaft O-Ring
Courtesy of GENERAL MOTORS CORP.
1. Install a new turbine shaft O-ring (41) on the end of the turbine shaft.
CAUTION: The torque converter weighs approximately 65 lbs. Personal injury may result if you lift the torque converter improperly.
2. Install the torque converter onto the transmission.
3. Install the J 21366  . See Special Tools .
4. Remove the transmission from the holding fixture.
