Automatic Transmission Controls Schematics

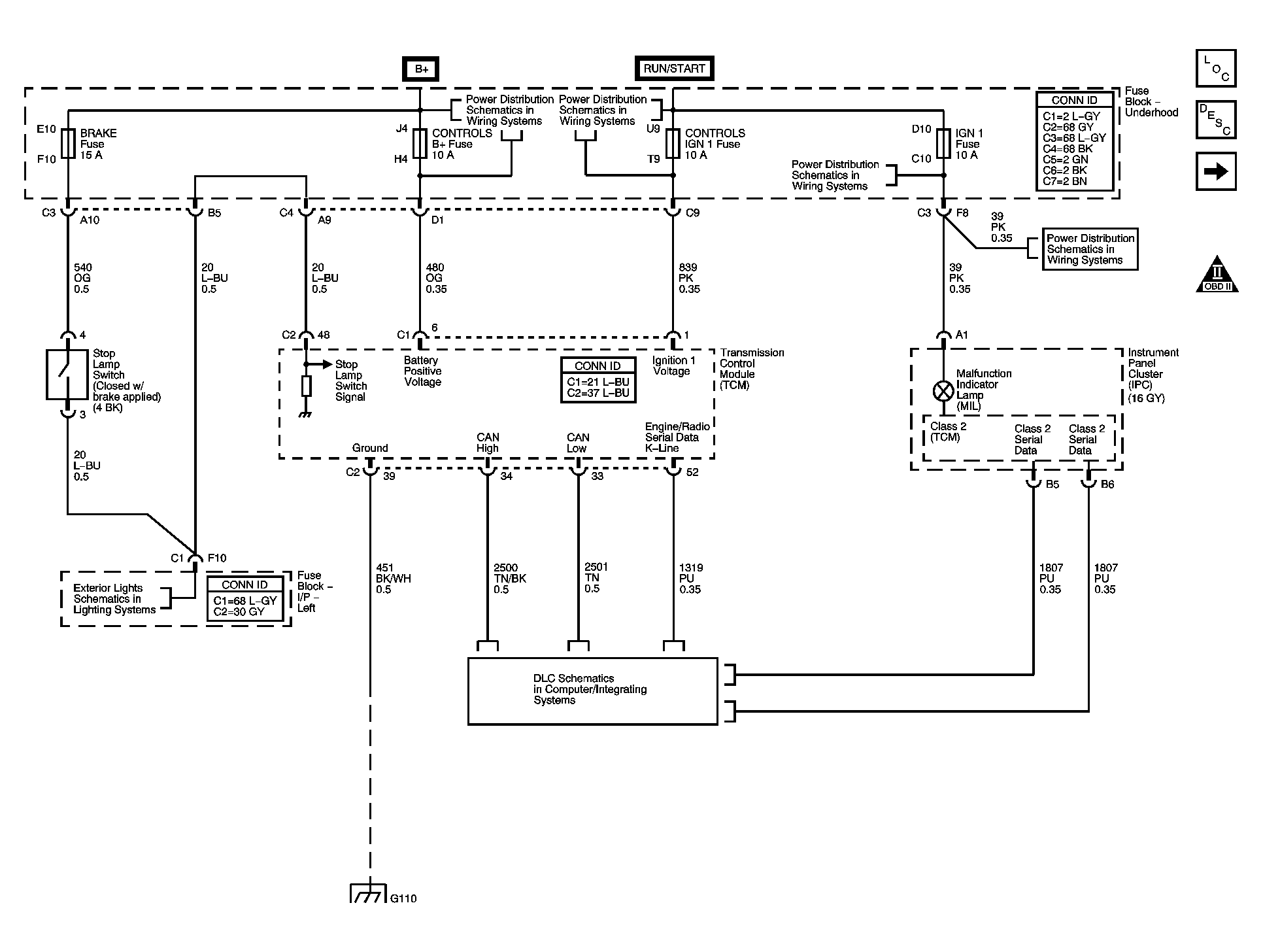

Fig 1: TCM Power, Ground, MIL and Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

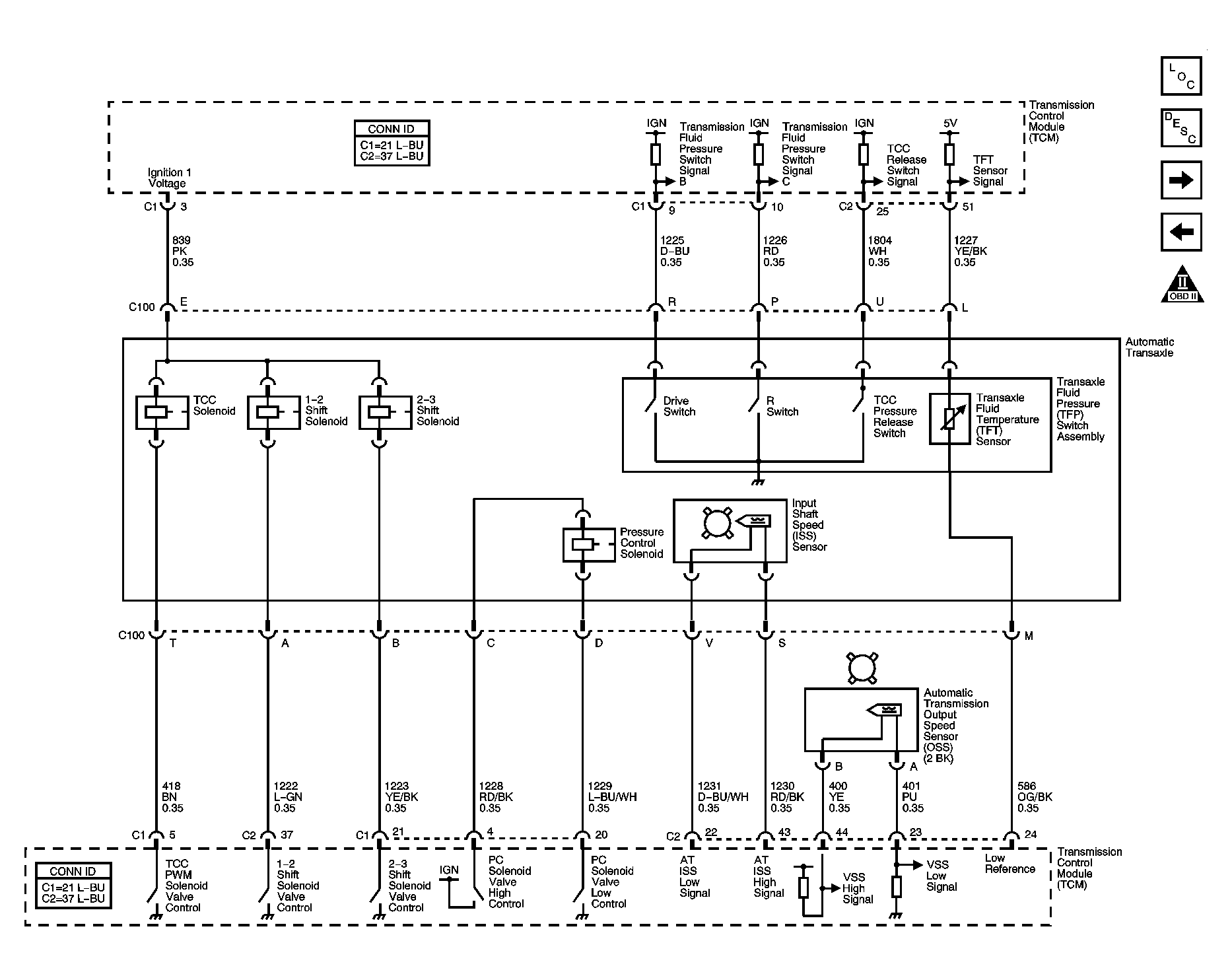

Fig 2: Sensors & Solenoids

Courtesy of GENERAL MOTORS CORP.

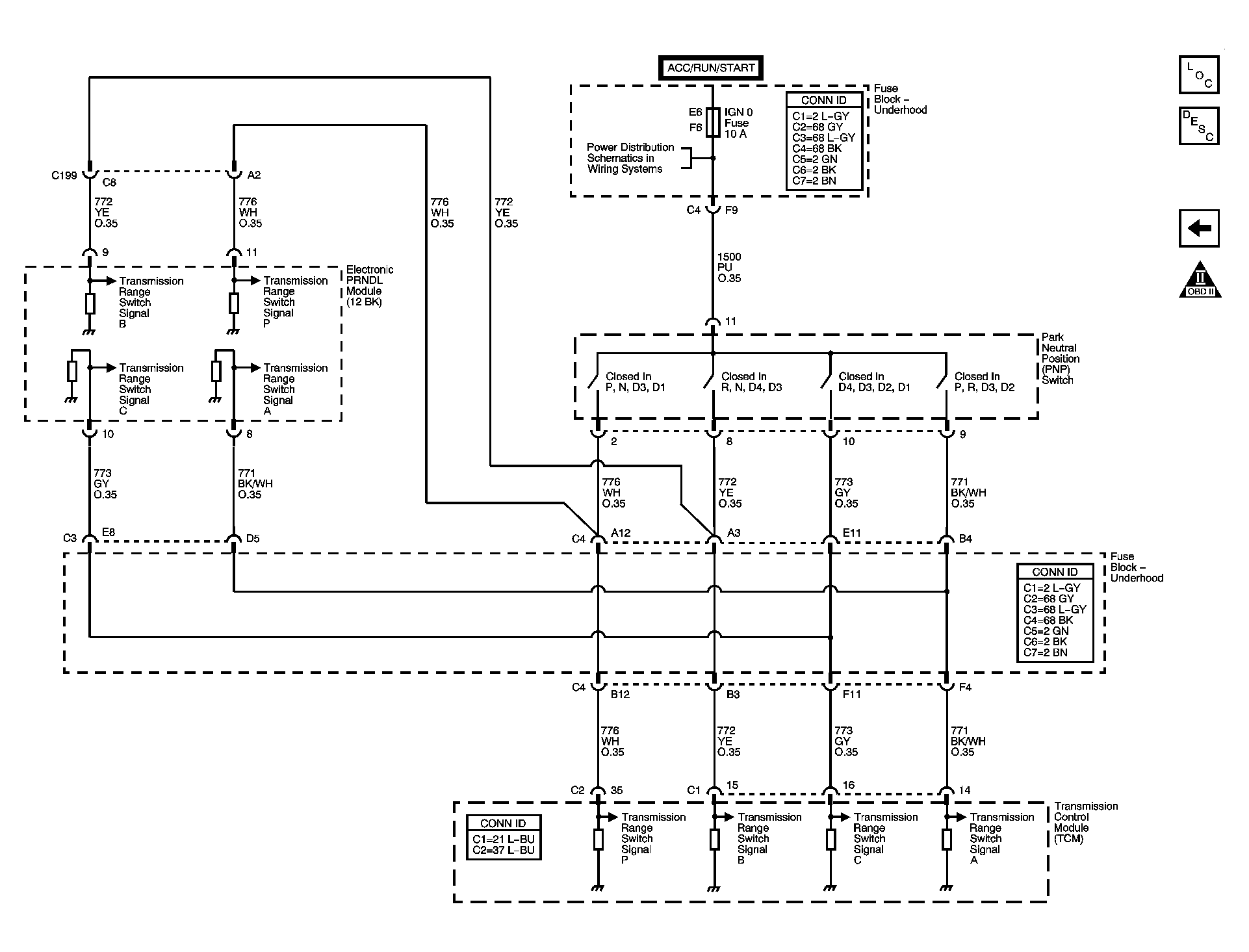

Fig 3: PNP Switch & PRNDL

Courtesy of GENERAL MOTORS CORP.
