Seat Back Protector Replacement - Rear

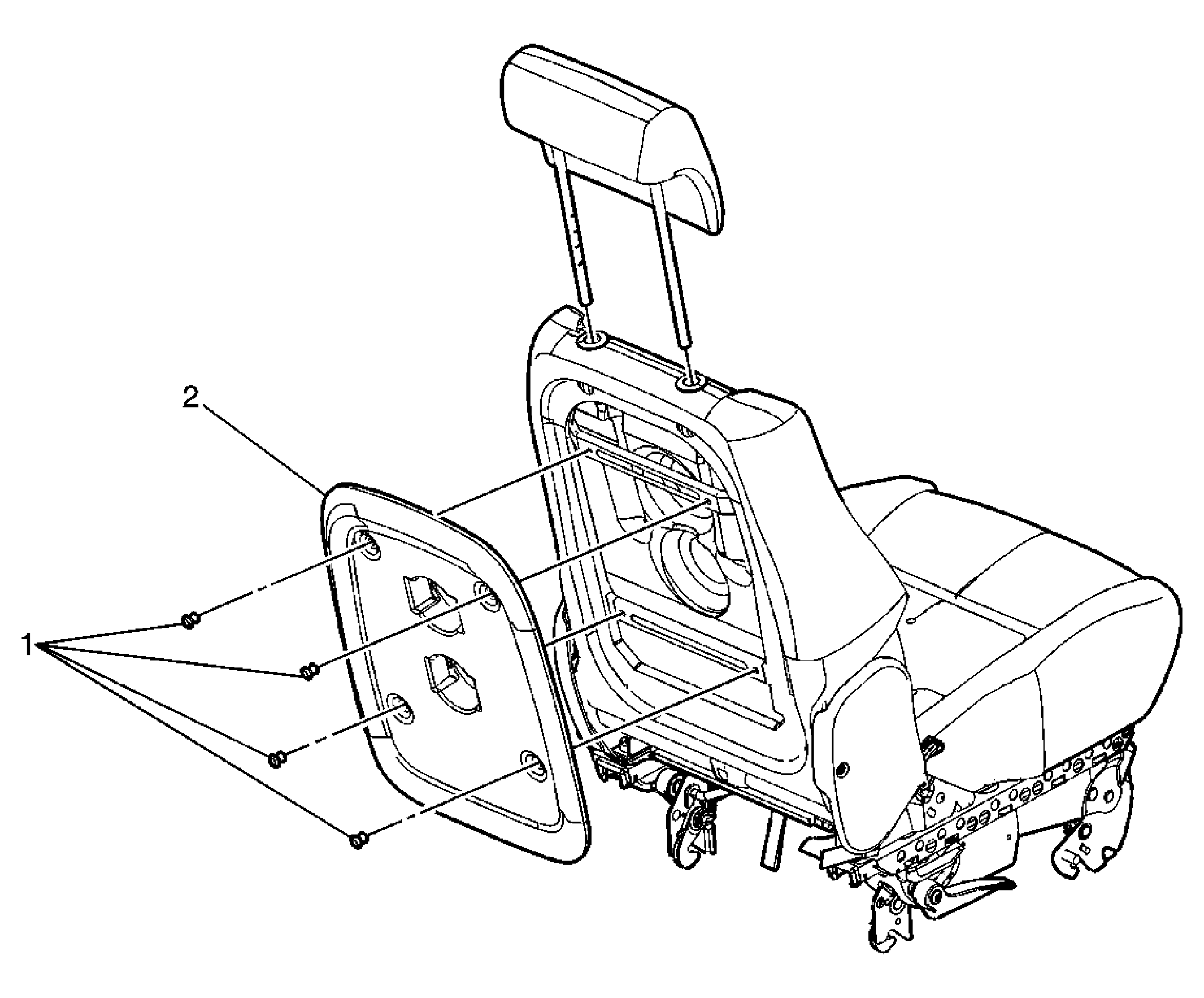

Fig 1: View Of Seat Back Protector - Rear

Courtesy of GENERAL MOTORS CORP.

Seat Back Protector Replacement - Rear

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Retainer, Rear Seat Back Cushion Protector (Qty: 4)
2	Protector, Rear Seat Back Cushion
