Removal Procedure
- Remove the right rear quarter lower trim panel. Refer to Trim Panel Replacement - Rear Quarter (Right)
or Trim Panel Replacement - Rear Quarter (Left)
in Interior Trim.
Courtesy of GENERAL MOTORS CORP.
- Disconnect the electrical connectors from the power sliding door (PSD) actuator control module.

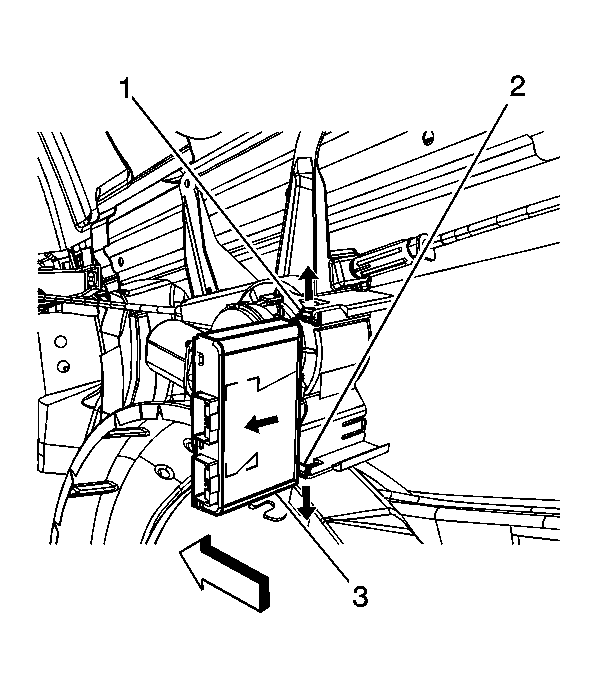

- Release the integral clips (1, 2) securing the actuator module (3) at the rear motor bracket.
- Pull the PSD actuator control module (3) inboard in order to release the control module from the actuator motor bracket.
