Removal Procedure

  1. Remove the left rear quarter lower trim panel. Refer to Trim Panel Replacement - Rear Quarter (Right) or Trim Panel Replacement - Rear Quarter (Left) in Interior Trim.

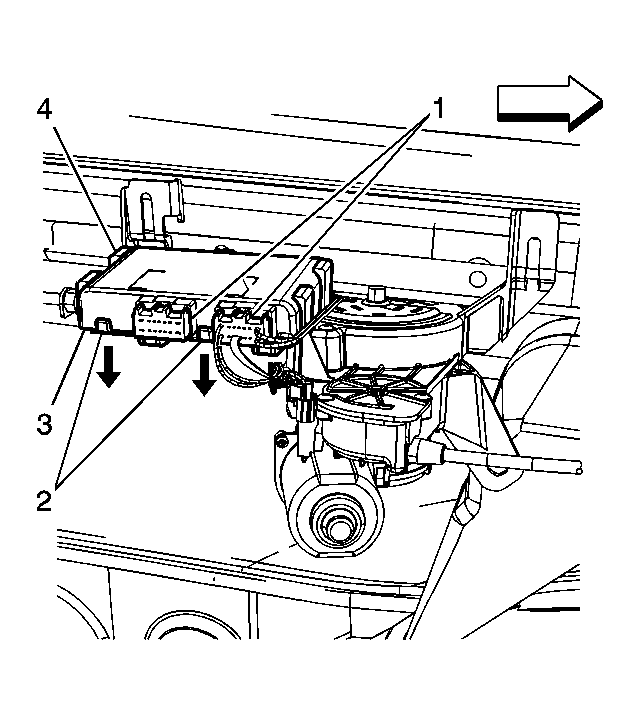

    2. Fig 1: Removing/Installing Actuator Control Module - PSD (With RPO E59 LH)
    GM1562675Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors (1) from the power sliding door (PSD) actuator control module (3).
  3. Release the integral clips (2) securing the actuator module to the top side of the motor module bracket (4).
  4. Pull the PSD actuator control module (3) inboard in order to release the control module from the actuator motor module bracket.
