Trim Panel Replacement - Side Front Door

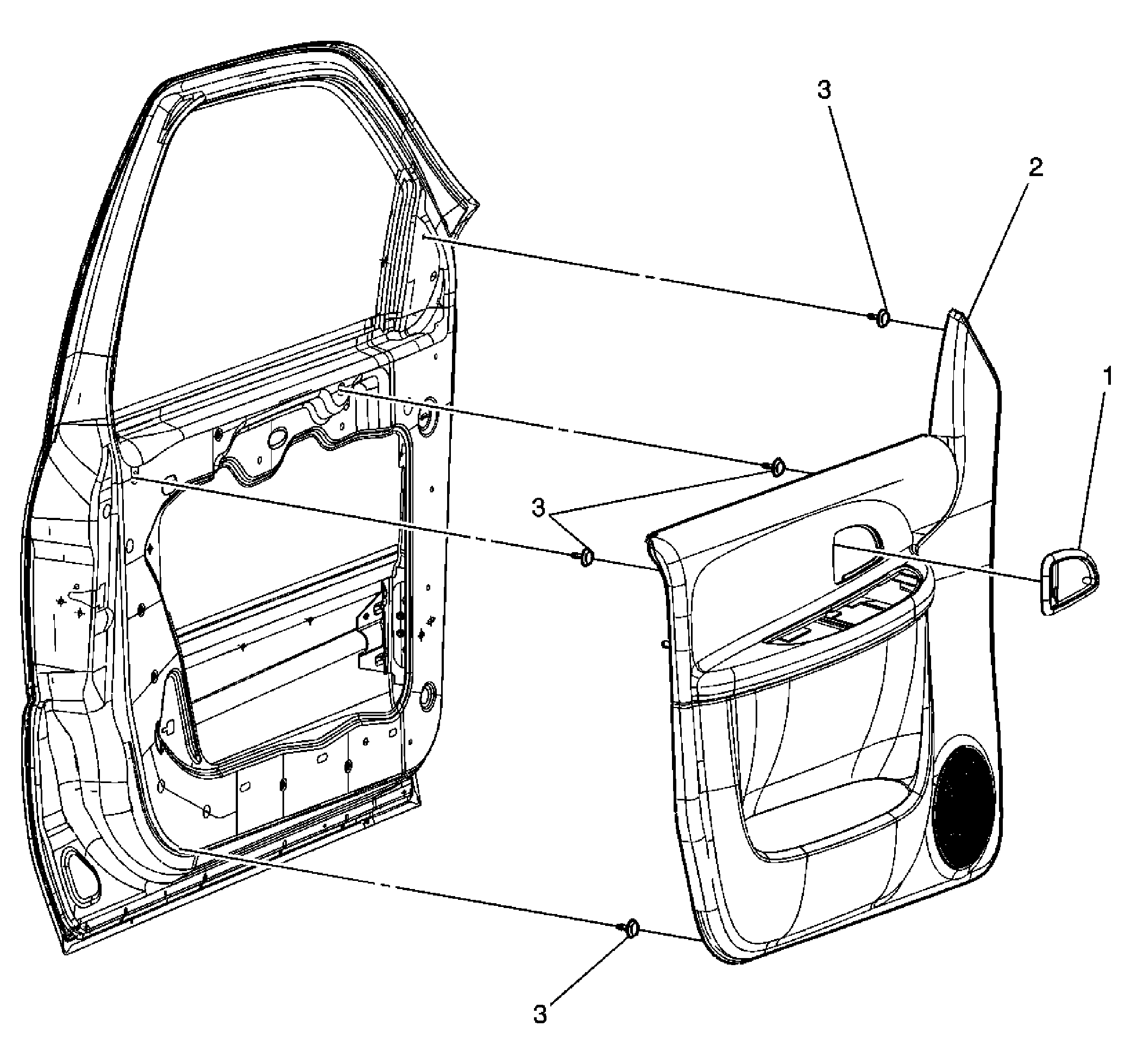

Fig 1: Replacing Trim Panel - Side Front Door
GM1547370Courtesy of GENERAL MOTORS CORP.
Trim Panel Replacement - Side Front Door

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
NOTE: Refer to Fastener Notice in Cautions and Notices.

Preliminary Procedure:
Remove the power window switch bezel. Refer to Power Window Switch Replacement - Left Front  or Power Window Switch Replacement - Right Front .
1 Bezel, Door Handle
2 Panel, Door Trim
Tip:  Use J 38778  Door Trim Pad Clip Remover to aid in the removal.
3 Fastener, Door Trim Panel (Qty: 14)
