Door Lock/Indicator Schematics

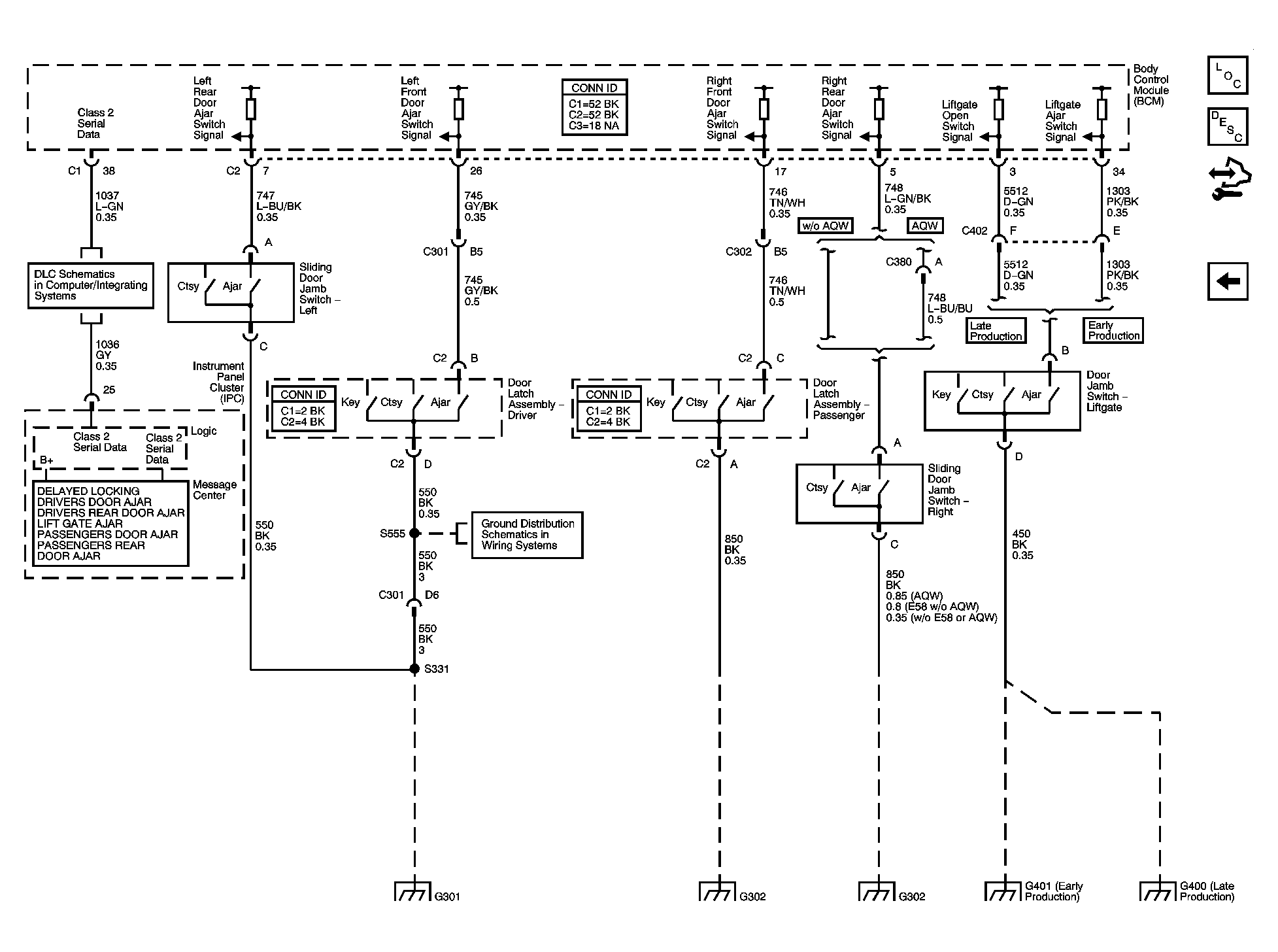

Fig 1: Door Lock/Indicator Switches Schematic

Courtesy of GENERAL MOTORS CORP.

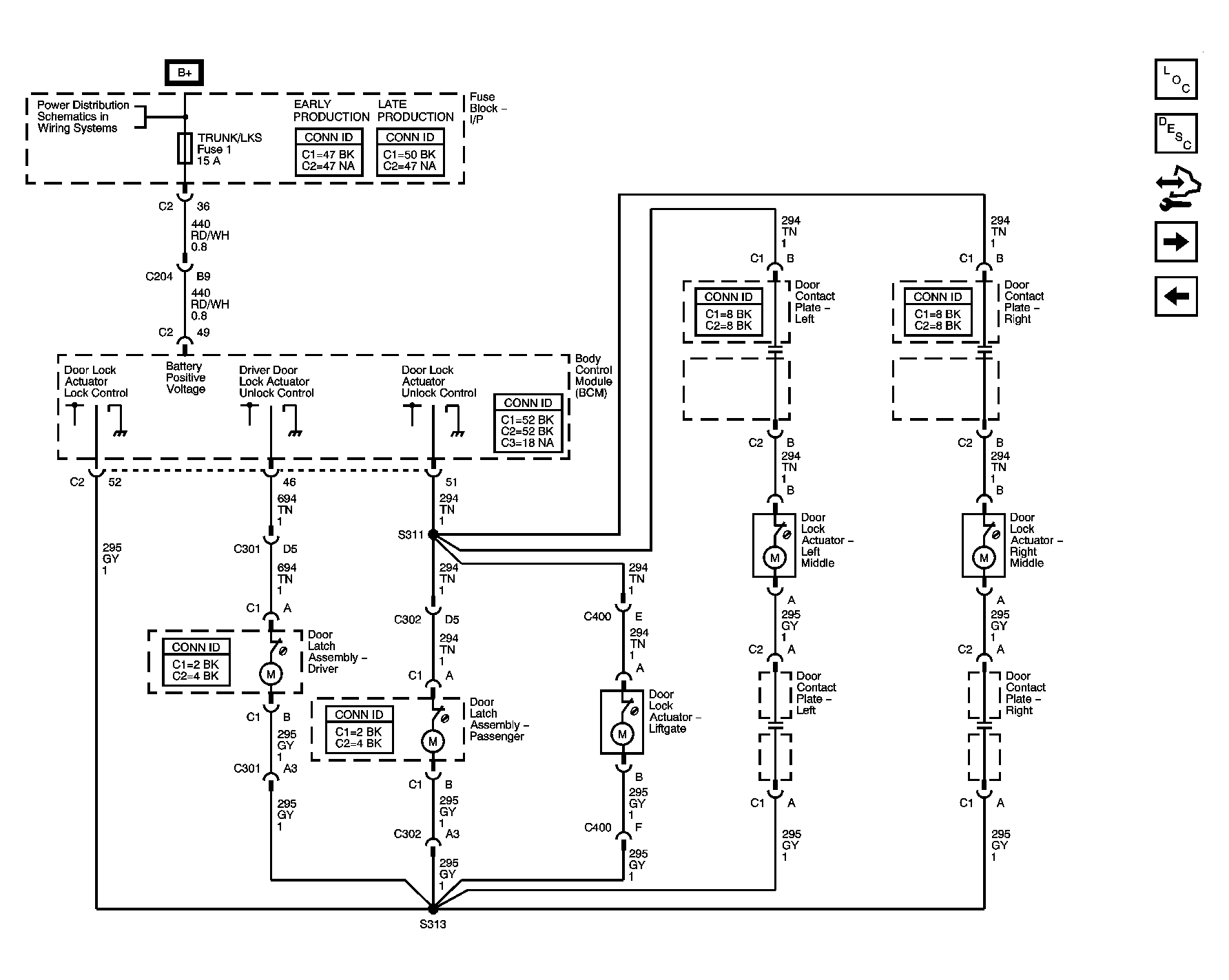

Fig 2: Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

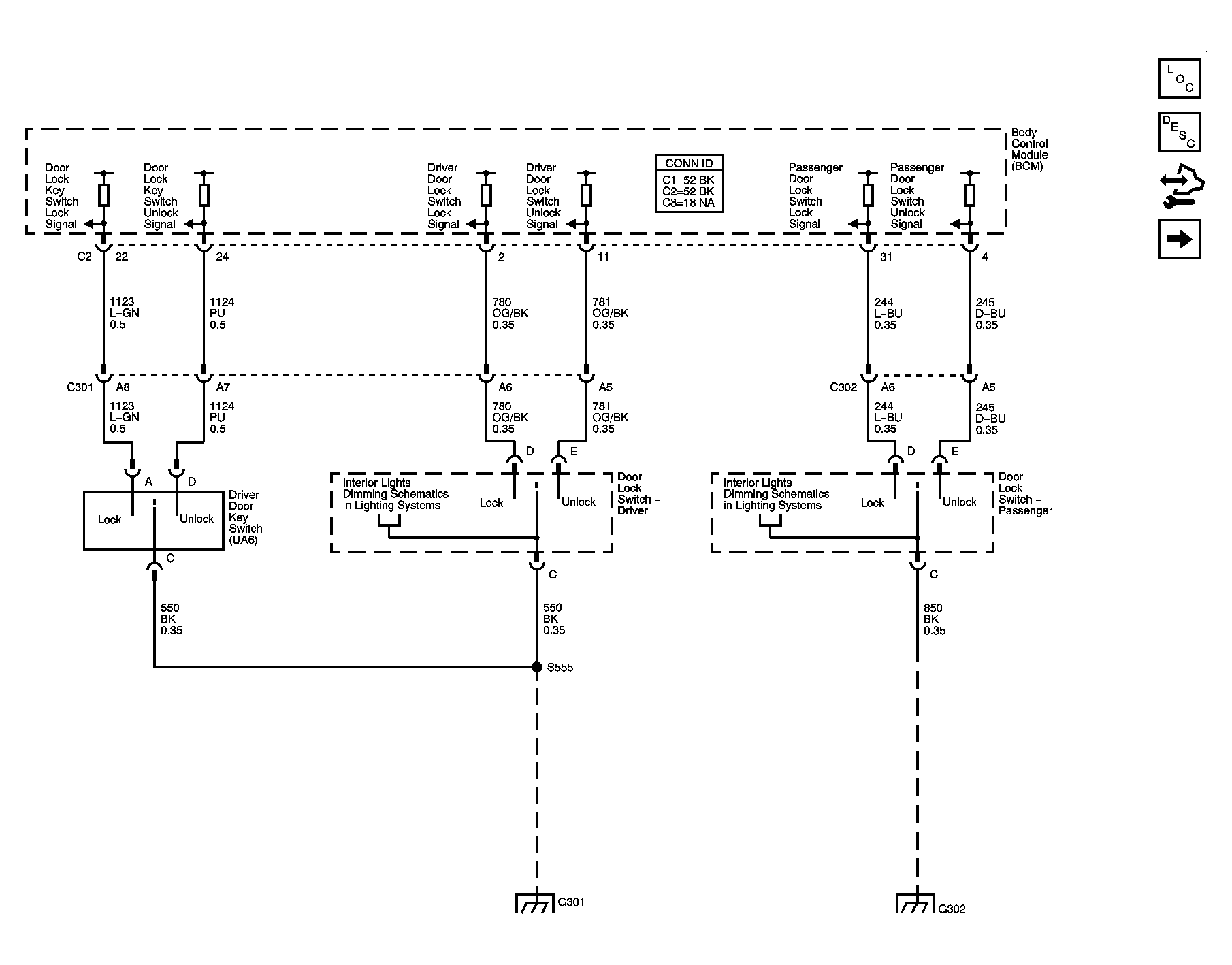

Fig 3: Indicators Schematic

Courtesy of GENERAL MOTORS CORP.
