Left Sliding Door Module (LSDM) Connector End View C2 (E59)

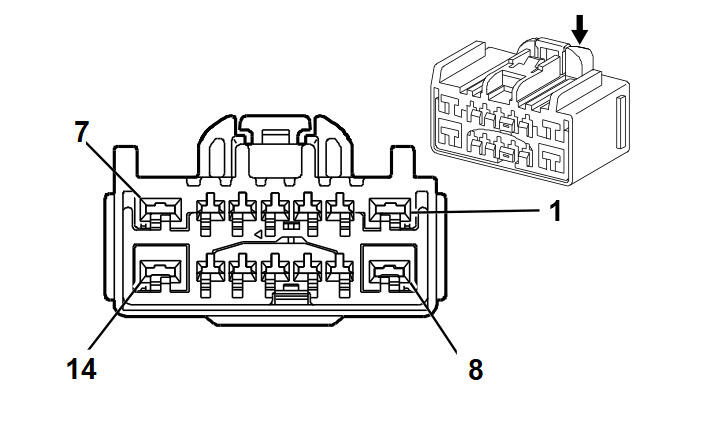

Fig 1: Left Sliding Door Module (LSDM) C2 (E59) Connector End View
GM1540775Courtesy of GENERAL MOTORS CORP.
Power Door Systems Connector End Views

Connector Part Information
  • OEM: 7283-5623-60
  • Service: See Catalog
  • Description: 14-Way F YESC/USCAR Class III (GN)
Terminal Part Information
  • Terminal: Not Serviced in Kit
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
Left Sliding Door Module (LSDM) C2 (E59)

Pin Wire Color Circuit No. Function
1 RD - Left Sliding Door Motor Open Control
2-6 - - Not Used
7 BN - Left Sliding Door Clutch Control
8 YE - Left Sliding Door Motor Close Control
9 - - Not Used
10 BK/WH - Left Sliding Door Sensor 1 Signal
11 WH - Left Sliding Door Sensor 2 Signal
12 WH - Left Sliding Door Sensor Voltage Reference
13 WH - Left Sliding Door Sensor Low Reference
14 D-GN - Ground
