Removal Procedure

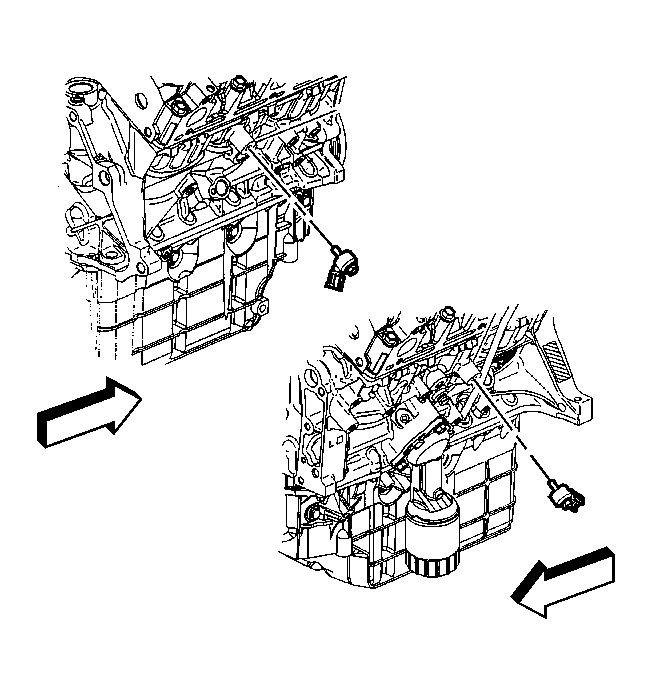

Fig 1: View Of Knock Sensors

GM909629

Courtesy of GENERAL MOTORS CORP.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Disconnect the knock sensor wiring harness electrical connector.
Remove the knock sensor.
