Engine Splash Shield Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

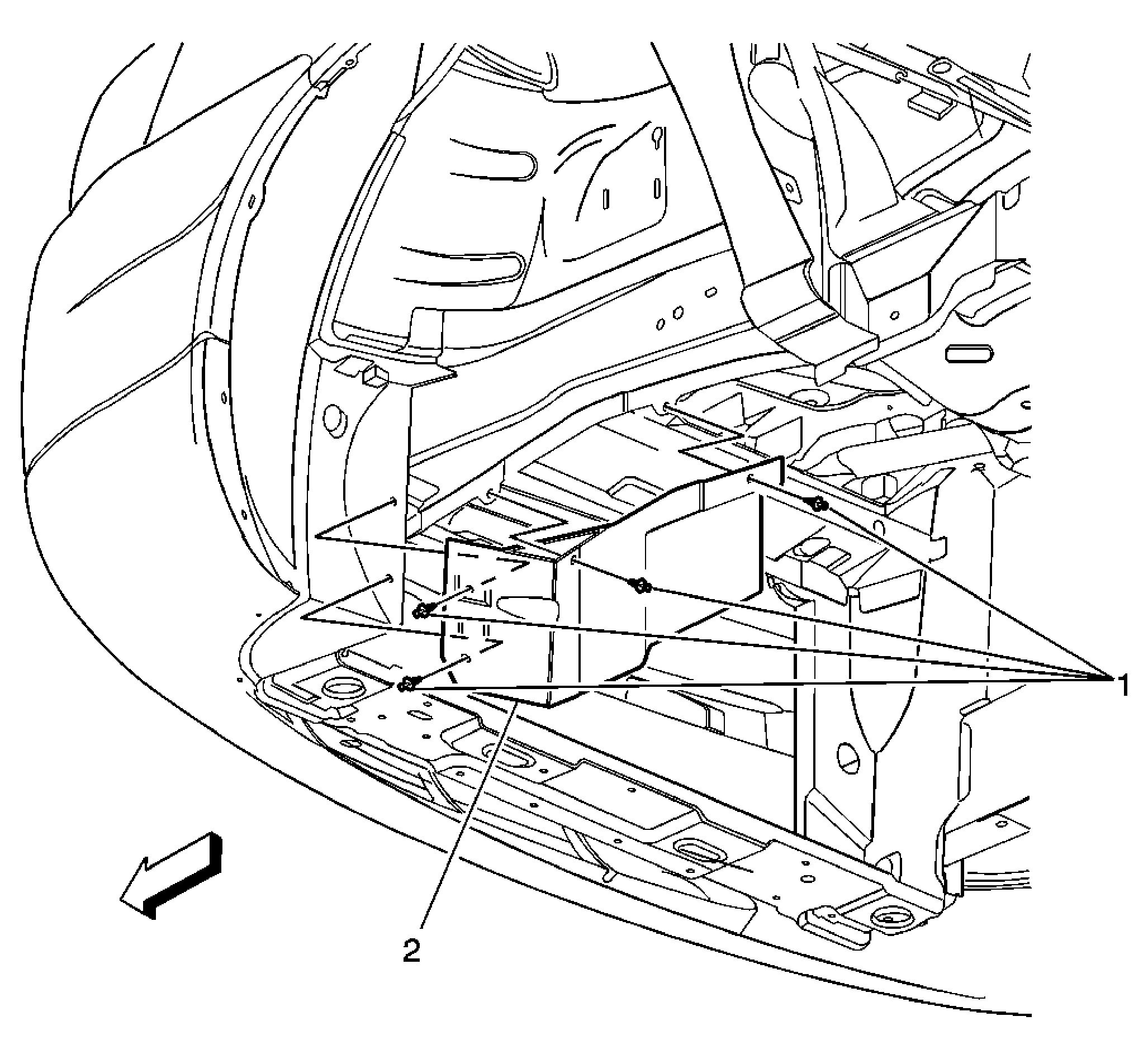

Fig 1: Engine Splash Shield Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Splash Shield Retainer (Qty: 4)
2	Engine Splash Shield Assembly
