HVAC Component Views

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

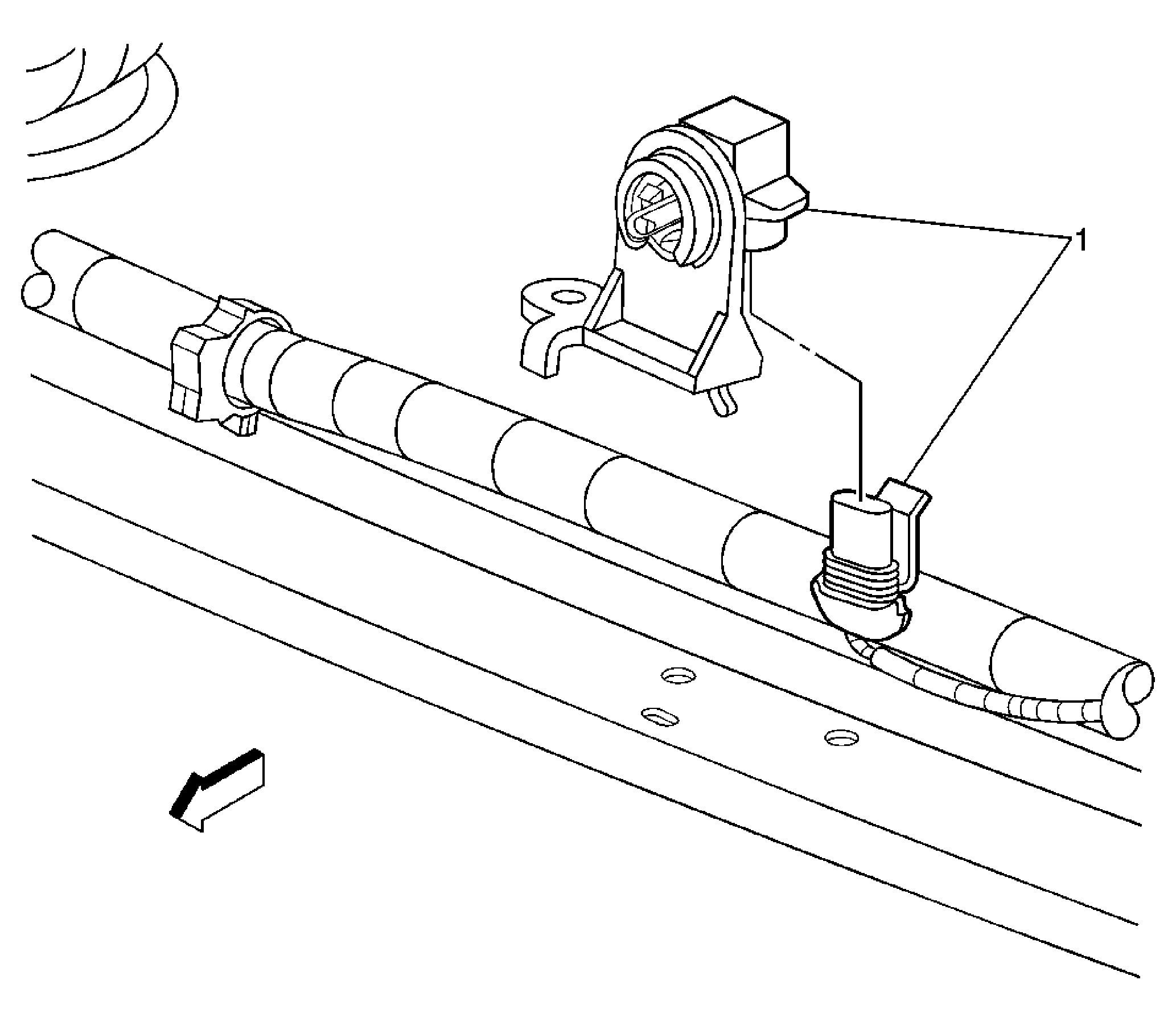

Fig 1: View Of HVAC Components On Front Impact Bar
GM1265795Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Air Temperature Sensor

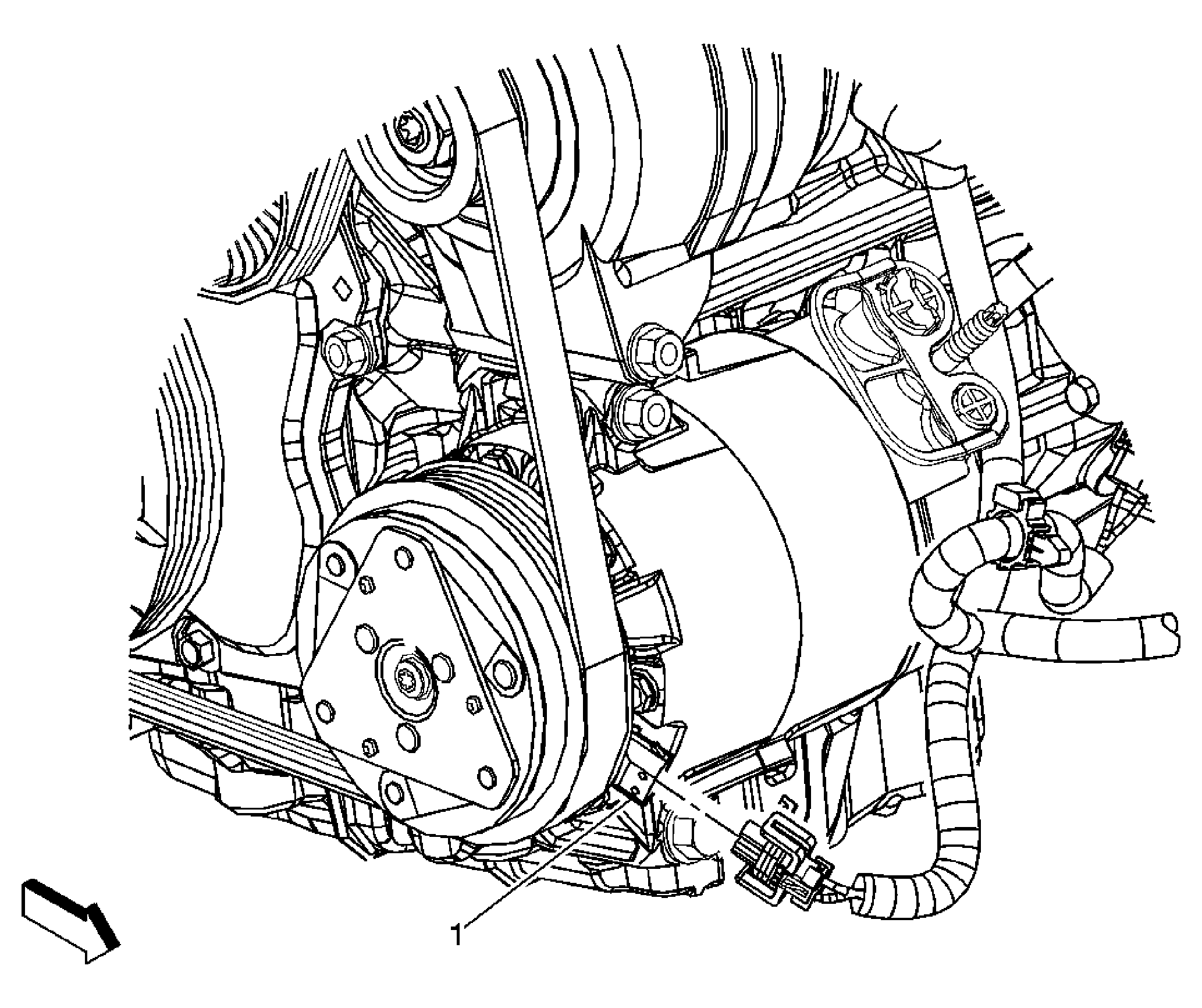

Fig 2: Lower Right Front of Engine Component Views - L61
GM1265627Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Compressor Clutch
Fig 3: Lower Right Front of Engine Component Views - LX9
GM1265644Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Compressor Clutch

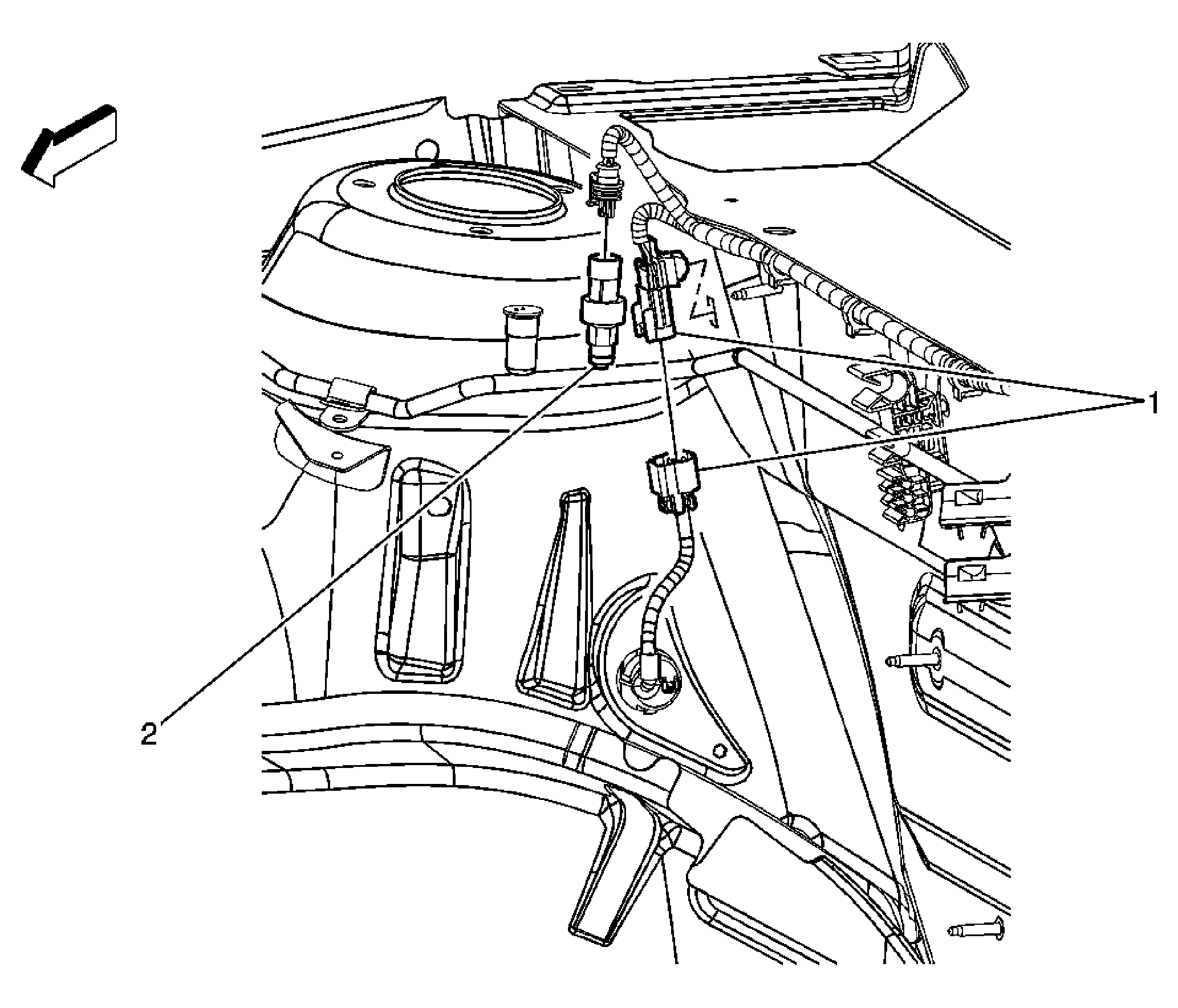

Fig 4: Right Rear of Engine Compartment Component Views
GM1266783Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C102 (C101 Similar)
2 A/C Refrigerant Pressure Sensor
Fig 5: Instrument Panel Component Views
GM1360206Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Steering Wheel Controls - Left
3 Instrument Panel Cluster (IPC)
4 Steering Wheel Controls - Right
5 Windshield Wiper/Washer Switch
6 Ignition Switch
7 Hazard Switch
8 Ambient Light Sensor
9 Radio
10 HVAC Control Module
11 Inflatable Restraint I/P Module
12 Traction Control Switch (NW7, NW9), Auxiliary Power Outlet - Front (w/o NW7, NW9)
13 Transmission Shifter
14 Cigar Lighter
15 Horn Buttons/Inflatable Restraint Steering Wheel Module
16 Data Link Connector (DLC)
17 Fog Lamp Switch (T96)
18 Dimmer Switch
19 Adjustable Pedals Position Switch (JF4)
Fig 6: Left Side of HVAC Case Component Views
GM1394449Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accelerator Pedal Position (APP) Sensor
2 Adjustable Pedals Actuator
3 Air Temp Sensor - Upper (C68)
4 Air Temperature Actuator
Fig 7: Behind Instrument Panel Compartment Left Side of HVAC Case Component Views
GM1394450Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mode Actuator
Fig 8: View Forward of BCM
GM1405474Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 Air Temp Sensor - Lower (C68)
3 G203
4 G201
Fig 9: Above Right Front Footwell Component Views
GM1394451Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor Resistor Assembly (C60), Blower Motor Control Module (C68)
2 Blower Motor
Fig 10: Right Side of HVAC Case Component Views
GM1394452Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Recirculation Actuator
