Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Position the spring on the lower control arm.
Use the jack stand to raise the lower control arm into position.

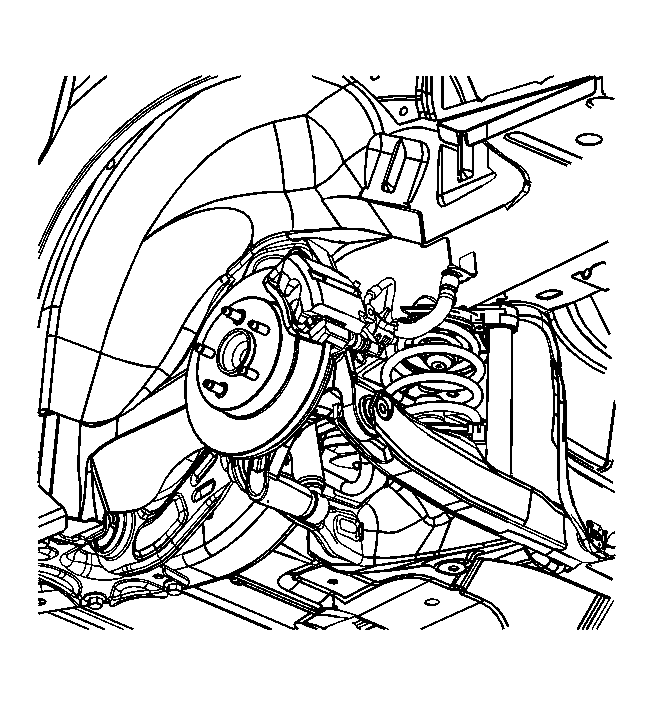

Fig 1: Removing Lower Control Arm To Knuckle Bolt And Nut

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the lower control arm to knuckle bolt and nut.
Tighten: Tighten the bolt and nut to 60 N.m (44 lb ft) plus an additional 60 degrees.

Fig 2: Replacing Coil Spring

Courtesy of GENERAL MOTORS CORP.

Remove the OTC 204-167 or equivalent on vehicle spring compressor to compress the coil spring.
Remove the jack stand.
Install the rear tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
