Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the stabilizer shaft. Refer to Stabilizer Shaft Replacement .
With the aid of an assistant, position the support assembly to the vehicle.
Using a suitable jack stand, support the support assembly.

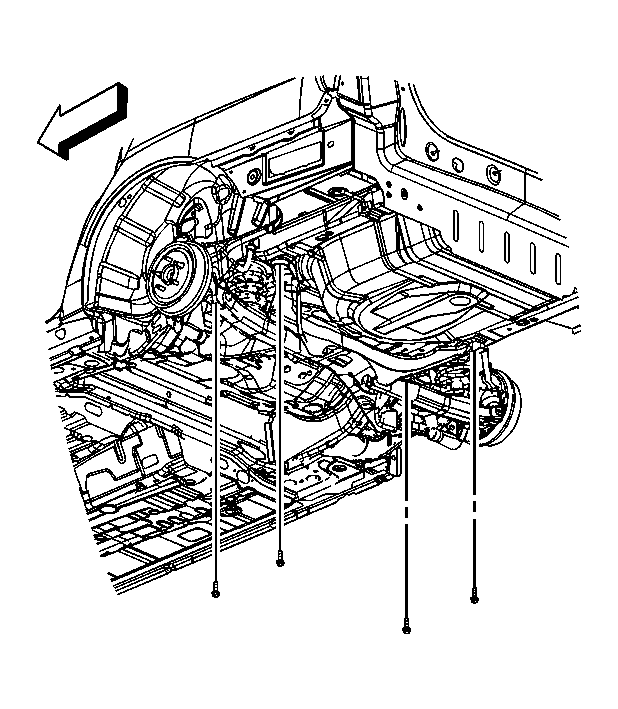

Fig 1: Removing Support Assembly To Body Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the support assembly to body bolts.
Tighten: Tighten the bolts to 90 N.m (66 lb ft) plus 60 degrees plus an additional 15 degrees.
Remove the jack stand.
Install the muffler assembly. Refer to Muffler Replacement in Engine Exhaust.
Connect the vehicle wiring harness to the clips on the support assembly.

Fig 2: Removing Stabilizer Shaft To Knuckle Bolts

Courtesy of GENERAL MOTORS CORP.

Install the stabilizer shaft to knuckle bolts.
Tighten: Tighten the bolts to 50 N.m (37 lb ft).
Install the toe links. Refer to Toe Link Replacement .

Fig 3: Removing Upper Control Arm To Support Assembly Bolts And Nuts

Courtesy of GENERAL MOTORS CORP.

Install the upper control arm to support assembly bolts and nuts.
Tighten: Tighten the bolts and nuts to 60 N.m (44 lb ft) plus an additional 60 degrees.
Install the lower control arms. Refer to Rear Axle Lower Control Arm Replacement .
Install the rear wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
Adjust the rear alignment. Refer to Measuring Wheel Alignment in Wheel Alignment.
