Schematic And Routing Diagrams
›
Data Link Connector (DLC) Schematics
Data Link Connector (DLC) Schematics

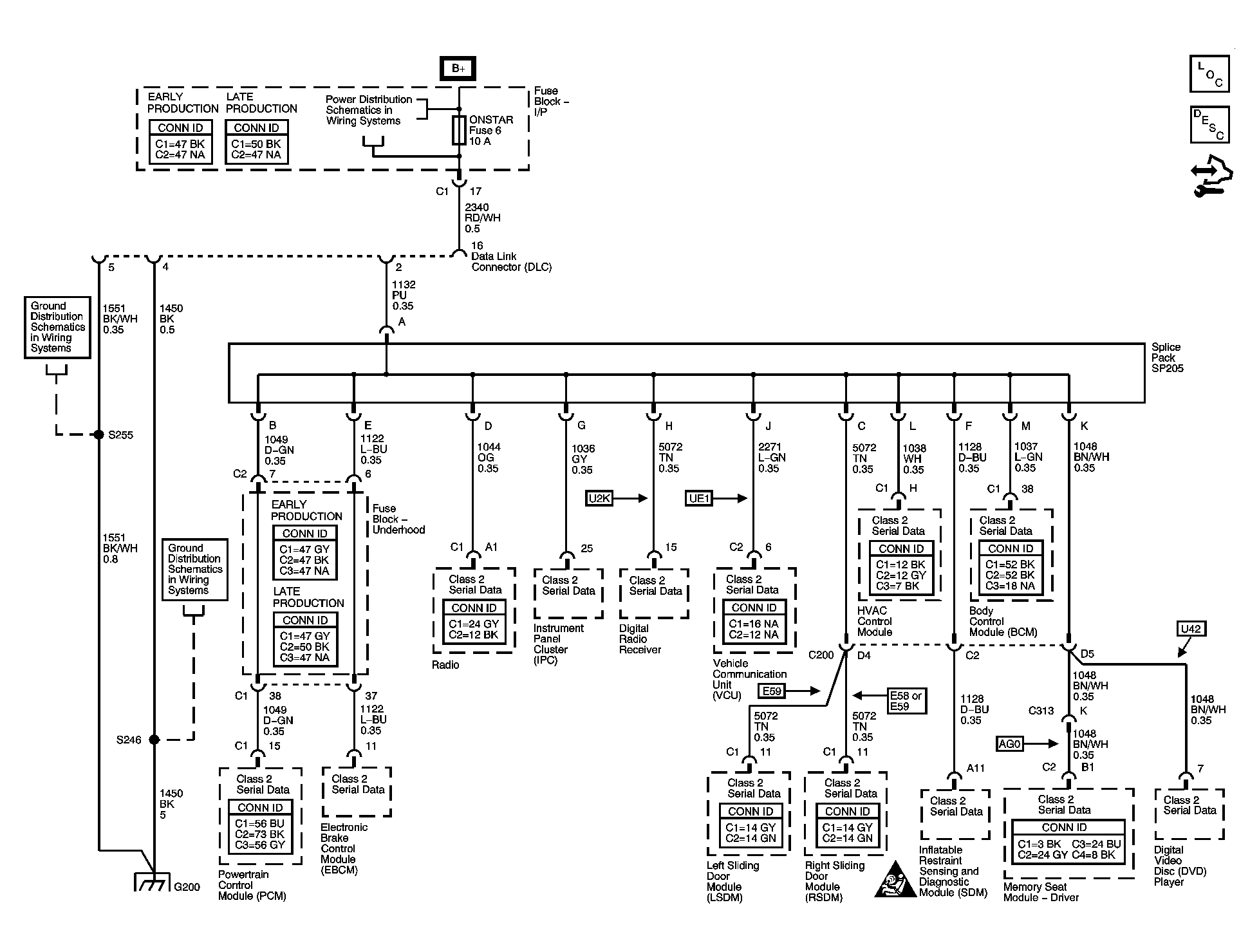

Fig 1: Data Link Connector (DLC) Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
