UNDERHOOD Compartment Fuse/Relay Center
NOTE:
Underhood compartment fuse/relay center is located in the underhood compartment, above the right front wheel well.

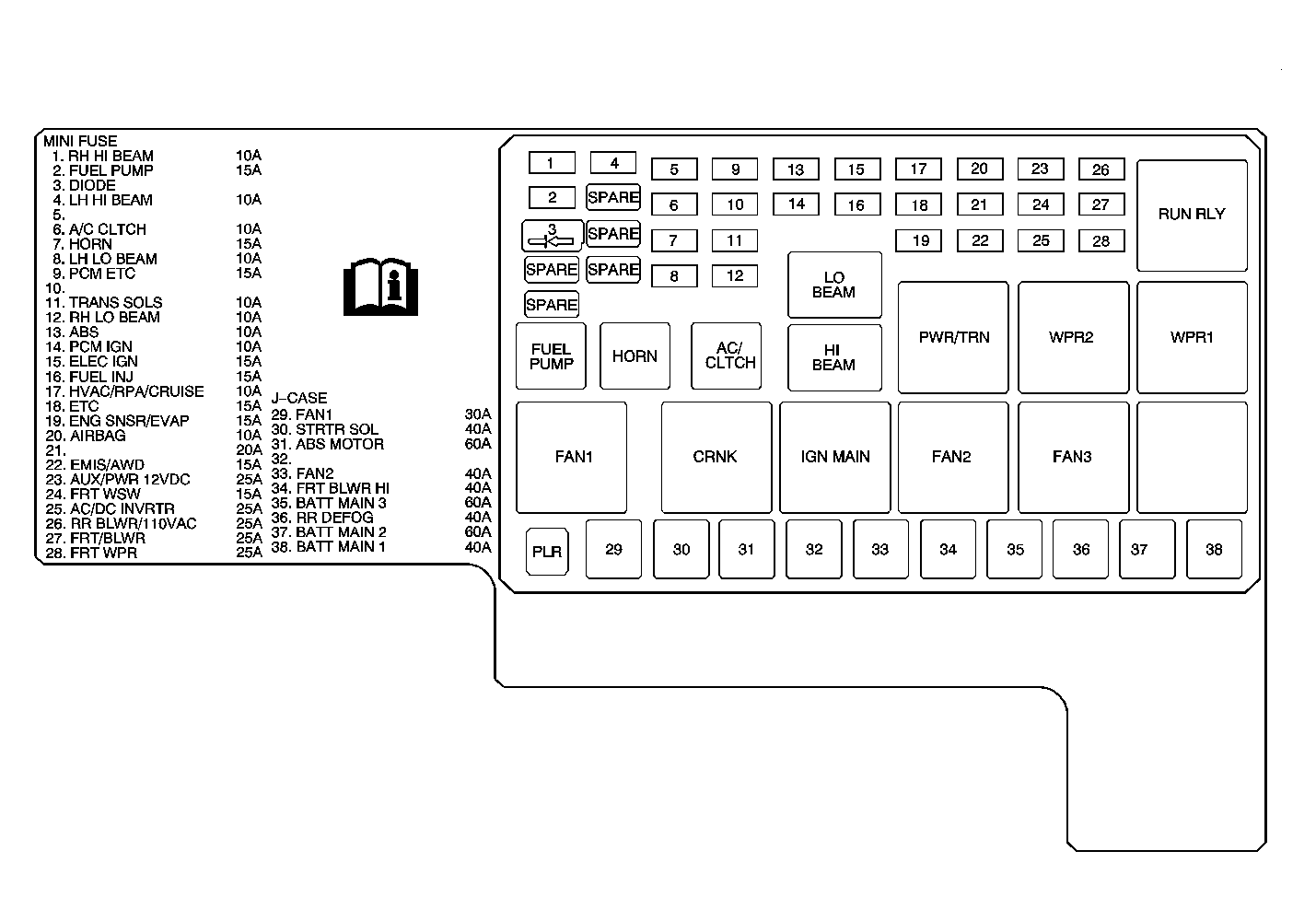

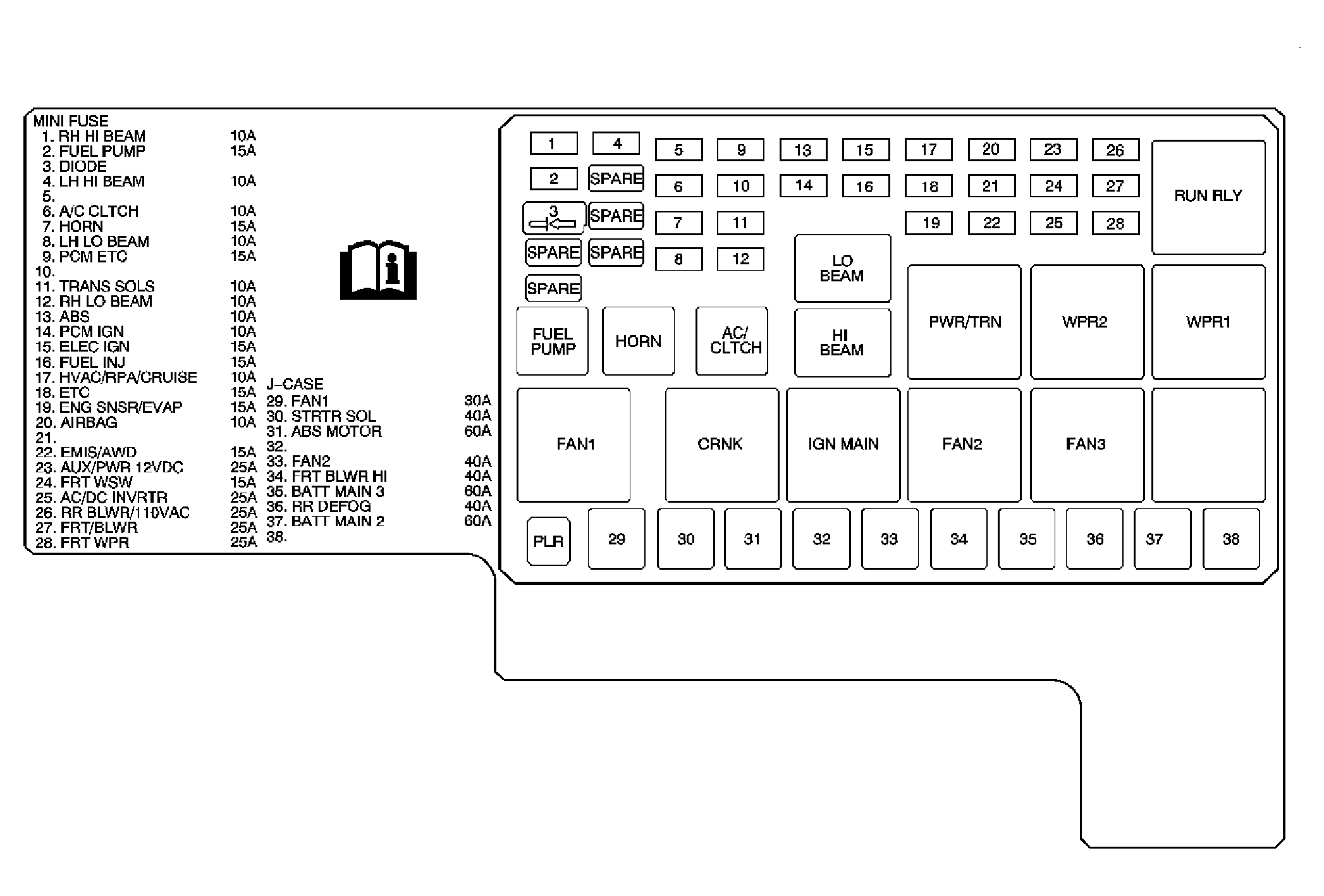

Fuse Block - Underhood Fuse And Relay Identification Legend
| No. | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|
| 1 | RH HI BEAM Fuse | 10A | Headlamp - High Beam - Right |
| 2 | FUEL PUMP Fuse | 15A | FUEL PUMP Relay |
| 3 | DIODE | - | AC/CLTCH Relay |
| 4 | LH HI BEAM Fuse | 10A | Headlamp - High Beam - Left |
| 5 | - | - | Not Used |
| 6 | A/C CLTCH Fuse | 10A | AC/CLTCH Relay |
| 7 | HORN Fuse | 15A | HORN Relay |
| 8 | LH LO BEAM Fuse | 10A | Headlamp - Low Beam - Left |
| 9 | PCM ETC Fuse | 15A | PCM |
| 10 | - | - | Not Used |
| 11 | TRANS SOLS Fuse | 10A | 1-2 SS Valve, 2-3 SS Valve, and TCC Solenoid Valve |
| 12 | RH LO BEAM Fuse | 10A | Headlamp - Low Beam - Right |
| 13 | ABS Fuse | 10A | EBCM |
| 14 | PCM IGN Fuse | 10A | CRNK Relay and PCM |
| 15 | ELEC IGN Fuse | 15A | ICM |
| 16 | FUEL INJ Fuse | 15A | Fuel Injectors 1-6 |
| 17 | HVAC/RPA/CRUISE Fuse | 10A | CRUISE/SWTCH Fuse, HVAC Control Module, and Rear Object Sensor Control Module |
| 18 | ETC Fuse | 15A | TAC Module |
| 19 | ENG SNSR/EVAP Fuse | 15A | HO2S1 and HO2S2 |
| 20 | AIRBAG Fuse | 10A | Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator, PPS Module, and SDM |
| 21 | - | 20A | Not Used |
| 22 | EMIS/AWD Fuse | 15A | Differential Clutch Pump Actuator Check Valve |
| 23 | AUX/PWR 12VDC Fuse | 25A | Auxiliary Power Outlet - Rear and Cigar Lighter |
| 24 | FRT WSW Fuse | 15A | BCM |
| 25 | AC/DC INVRTR Fuse | 25A | Accessory AC/DC Power Control Module |
| 26 | RR BLWR/110VAC Fuse | 25A | Blower Motor - Auxiliary |
| 27 | FRT/BLWR Fuse | 25A | HVAC Control Module |
| 28 | FRT WPR Fuse | 25A | WPR1 Relay |
| 29 | FAN1 Fuse | 30A | FAN1 Relay |
| 30 | STRTR SOL Fuse | 40 | CRNK Relay |
| 31 | ABS MOTOR Fuse | 60A | EBCM |
| 32 | - | - | Not Used |
| 33 | FAN2 Fuse | 40A | FAN2 and FAN3 Relays |
| 34 | FRT BLWR HI | 40A | Blower Motor Resistor Assembly |
| 35 | BATT MAIN 3 Fuse | 60A | ELC, TRUNK/LKS and Spare Fuses |
| 36 | RR DEFOG Fuse | 40A | RR DEFOG Relay |
| 37 | BATT MAIN 2 Fuse | 60A | HTD/SEATS, LH - PSD, PWR/MIR, RH - PSD, and STOP/TRN Fuses, PWR SEATS Circuit Breaker |
| 38 | BATT MAIN 1 Fuse | 40A | CNSTR/VENT, CHMSL BCK/UP, CLSTR/HVAC, INT/LAMP, ONSTAR, PRK/LAMP, PSD, RADIO AMP, and RFA MDLS Fuses (Early Production) |
| - | AC/CLTCH A/C Relay | - | DIODE 3 and A/C Compressor Clutch |
| - | CRNK Relay | - | Starter Motor |
| - | FAN1 Relay | - | Cooling Fan - Left |
| - | FAN2 Relay | - | Cooling Fan - Right |
| - | FAN3 Relay | - | Cooling Fan - Right |
| - | FUEL PUMP Relay | - | Fuel Pump and Sender Assembly |
| - | HI BEAM Relay | - | LH HI BEAM and RH HI BEAM Fuses |
| - | HORN Relay | - | Horn - Left and Horn - Right |
| - | IGN MAIN Relay | - | ABS, AIRBAG, HVAC/RPA/CRUISE, PCM IGN, and TRANS SOLS Fuses, AC/CLTCH Relay |
| - | LO BEAM Relay | - | LH LO BEAM and RH LO BEAM Fuses |
| - | PWR/TRN Powertrain Relay | - | ELEC IGN, EMIS/AWD, ENG SNSR/EVAP, ETC, FUEL INJ, and Spare Fuses |
| - | RUN RLY Relay | - | FRT/BLWR and RR BLWR/110VAC Fuses |
| - | WPR1 Wiper Relay | - | WPR2 Relay |
| - | WPR2 Wiper Relay | - | Windshield Wiper Motor |
