Steering Wheel Controls Schematics

WARNING: This page is about a different car, the 2005 Pontiac Aztek and 2005 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

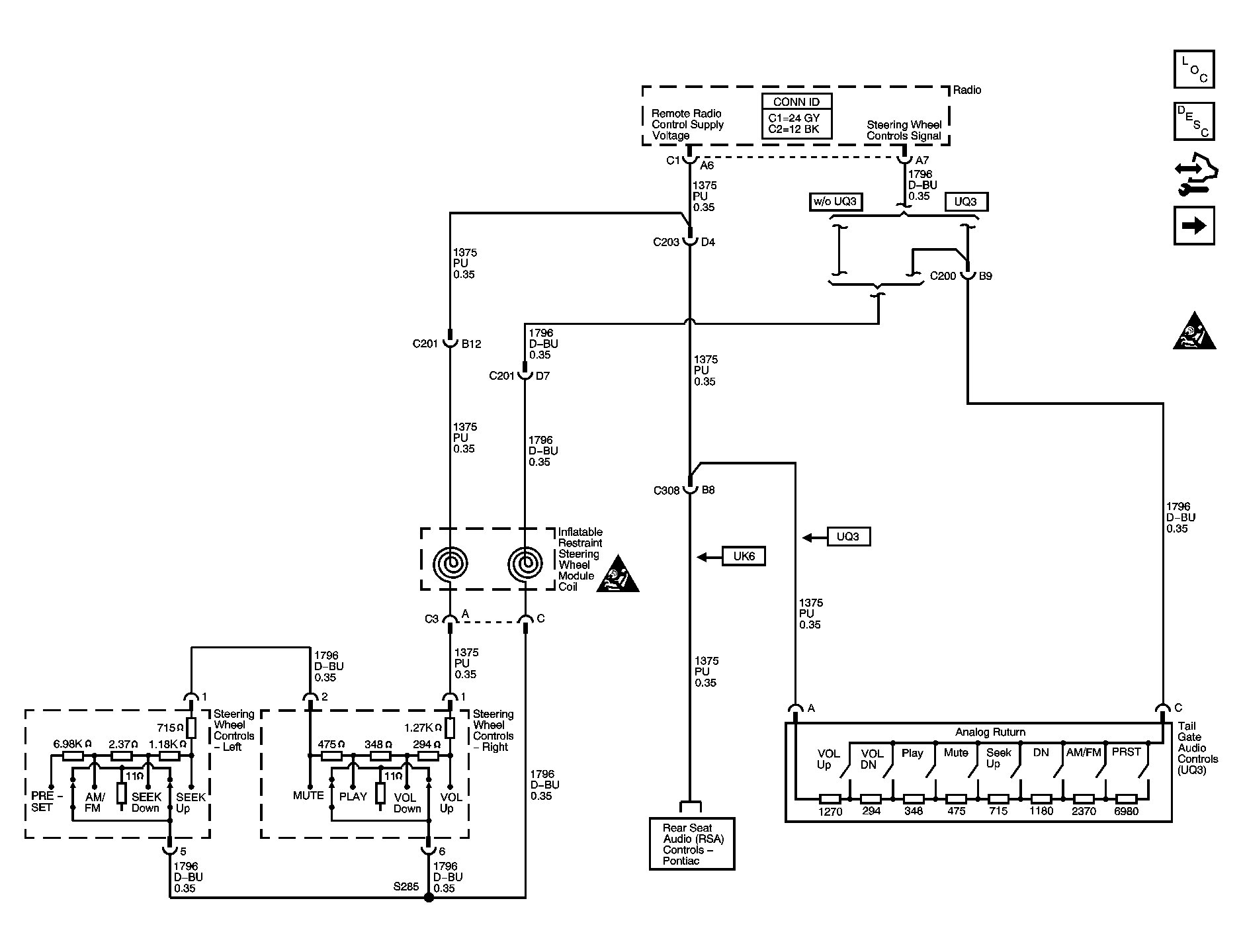

Fig 1: Steering Wheel and Tailgate Controls - Pontiac

Courtesy of GENERAL MOTORS CORP.

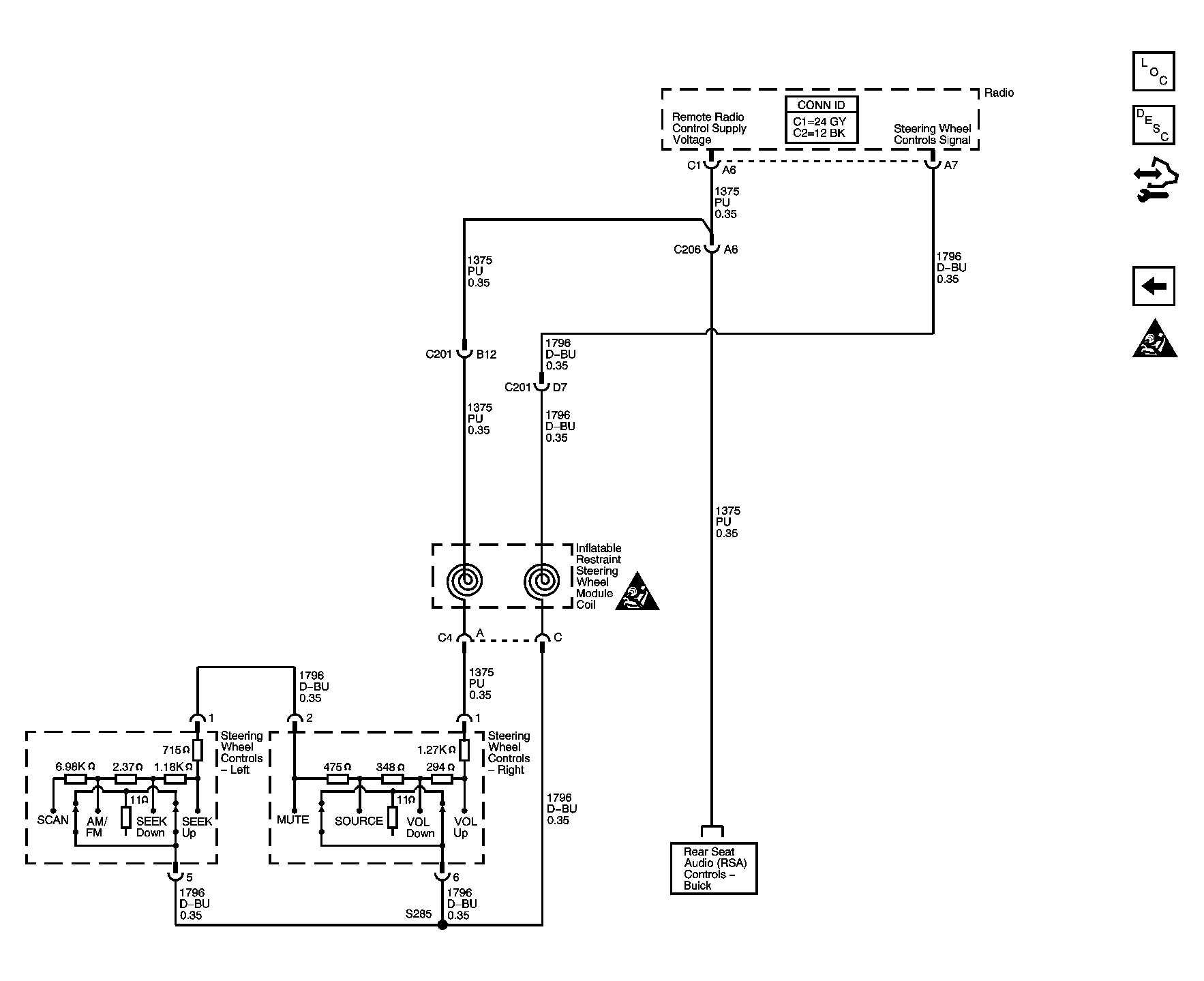

Fig 2: Steering Wheel Controls - Buick

Courtesy of GENERAL MOTORS CORP.
