Installation Procedure

  1. Install the inlet duct assembly.

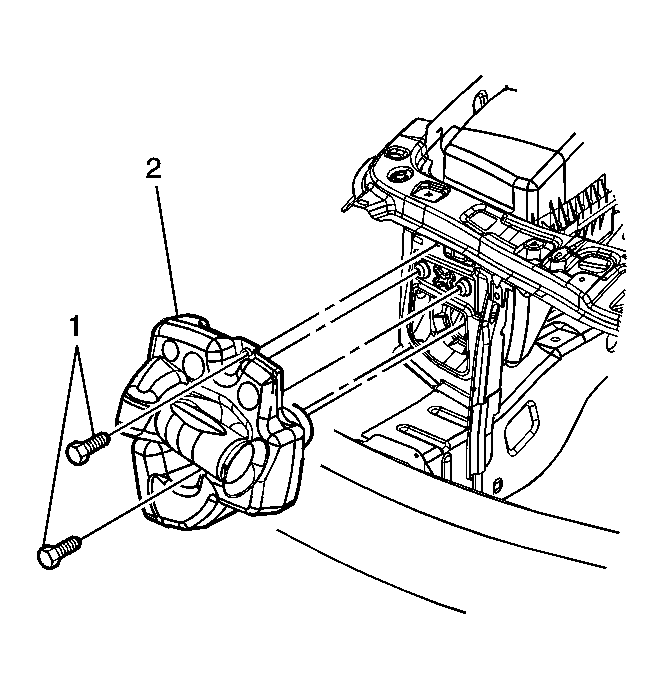

    Fig 1: View Of Inlet Duct Assembly
    GM1226391Courtesy of GENERAL MOTORS CORP.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the inlet duct assembly bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb. in.).

  3. Install the front fascia. Refer to Fascia Replacement - Front Bumper in Bumpers.
