Removal Procedure

  1. Remove the left camshaft sprocket. Refer to Camshaft Drive Sprocket Replacement - Left in Engine Mechanical - 3.5L (L66).
  2. Remove the bolt (240), sprocket (241), bolts (242), cover (244) and seal (243).

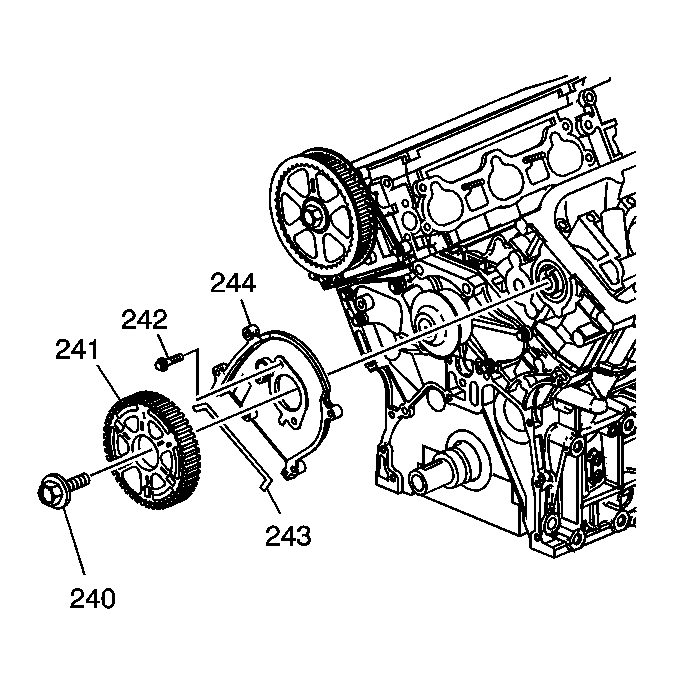

    Fig 1: View Of Camshaft Bolt, Sprocket & Rear Cover
    GM897130Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolt (723) and camshaft position (CMP) sensor (700).
    Fig 2: View Of Bolt & Camshaft Position Sensor
    GM897132Courtesy of GENERAL MOTORS CORP.
