Communication Center Call Transceiver Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

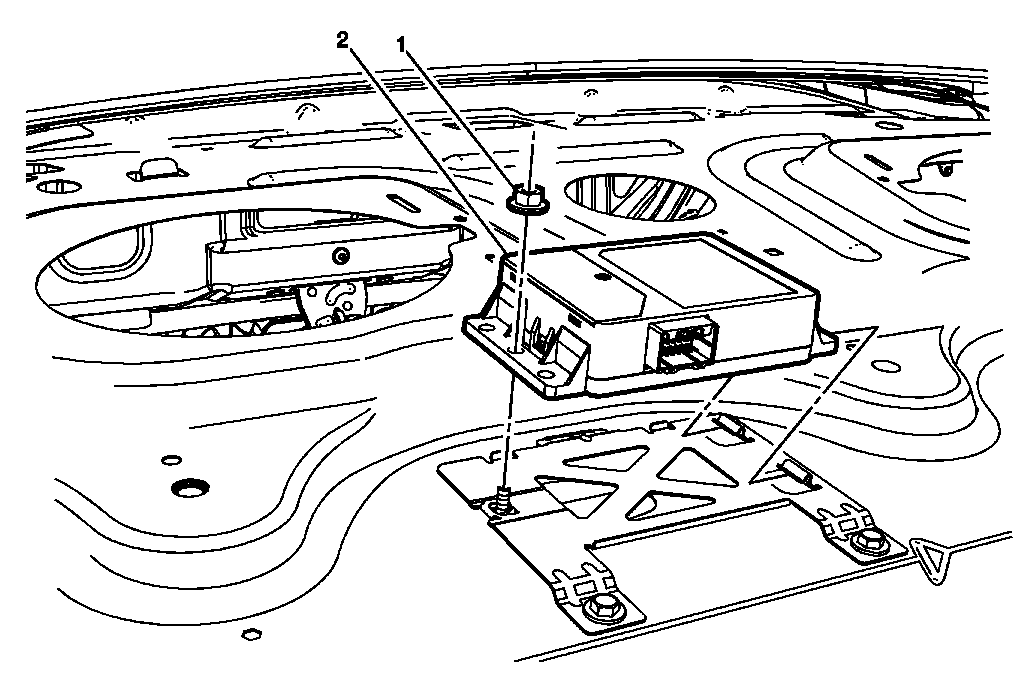

Fig 1: Communication Center Call Transceiver & Nut

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
1	Communication Center Call Transceiver Nut CAUTION: Refer to Fastener Caution .
2	Communication Center Call Transceiver Procedure Disconnect the electrical connector. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .

Communication Center Call Transceiver Nut

CAUTION:

Refer to Fastener Caution .

Communication Center Call Transceiver

Procedure

Disconnect the electrical connector.
Refer to Control Module References for programming and setup information.
