HVAC Control Assembly Replacement
WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.
HVAC Control Assembly Replacement

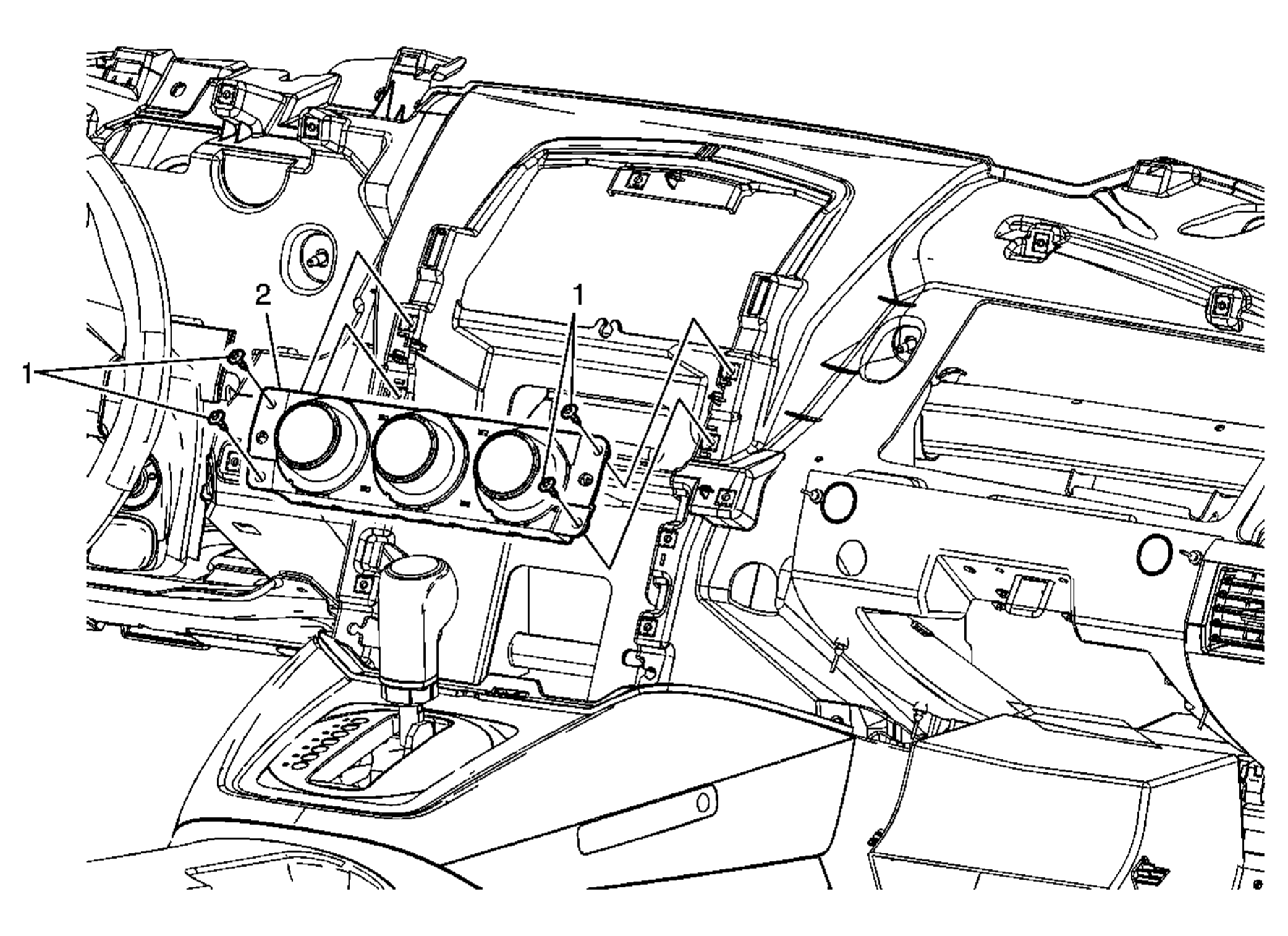

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement . |
|
| 1 | Heater and Air Conditioning Control Assembly Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 1.5 N.m (13 lb in) |
| 2 | Heater and Air Conditioning Control Assembly Tip: Disconnect the control module electrical connectors. |
