ABS Schematics
ABS Schematics

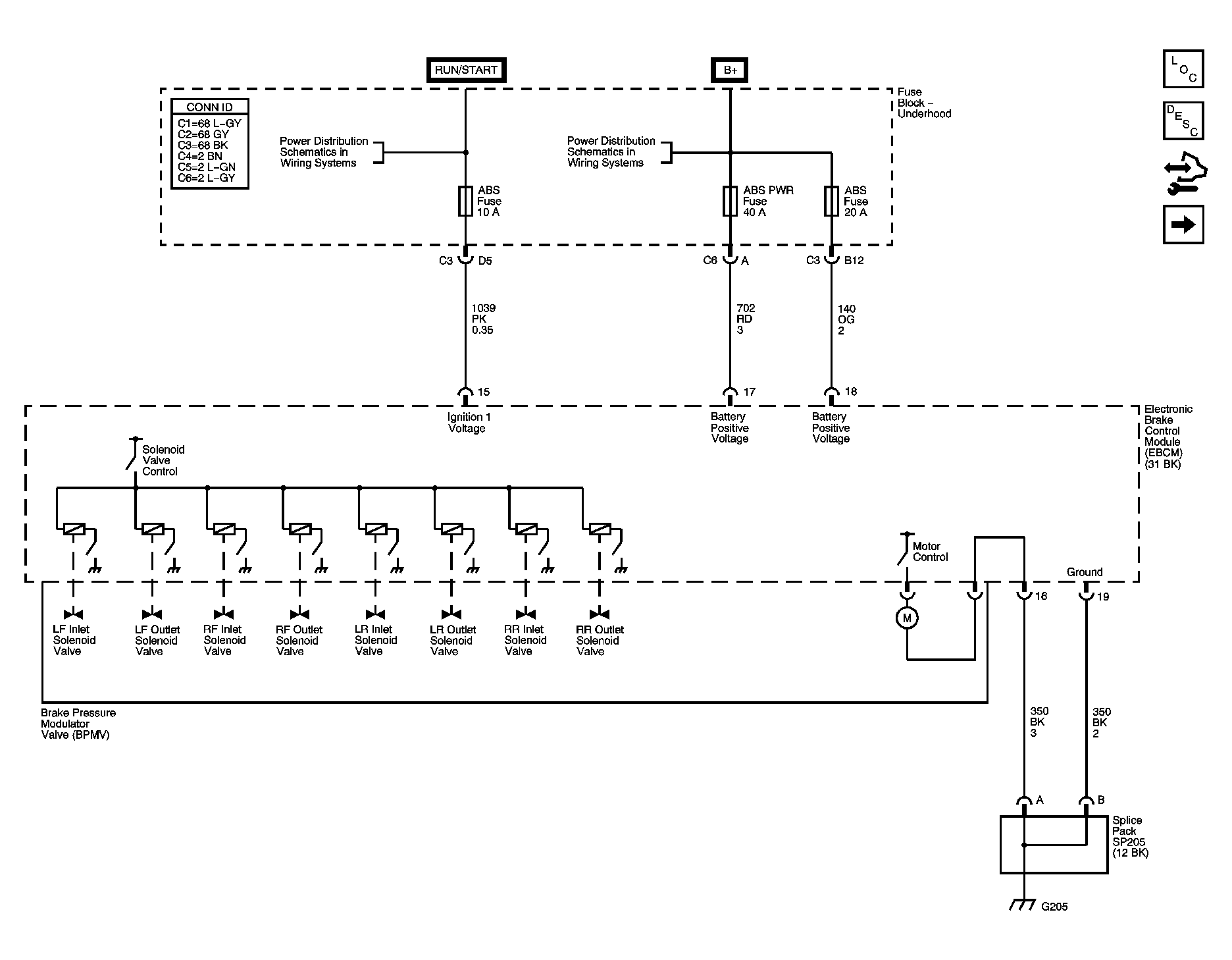

Fig 1: Power and Ground
Courtesy of GENERAL MOTORS CORP.

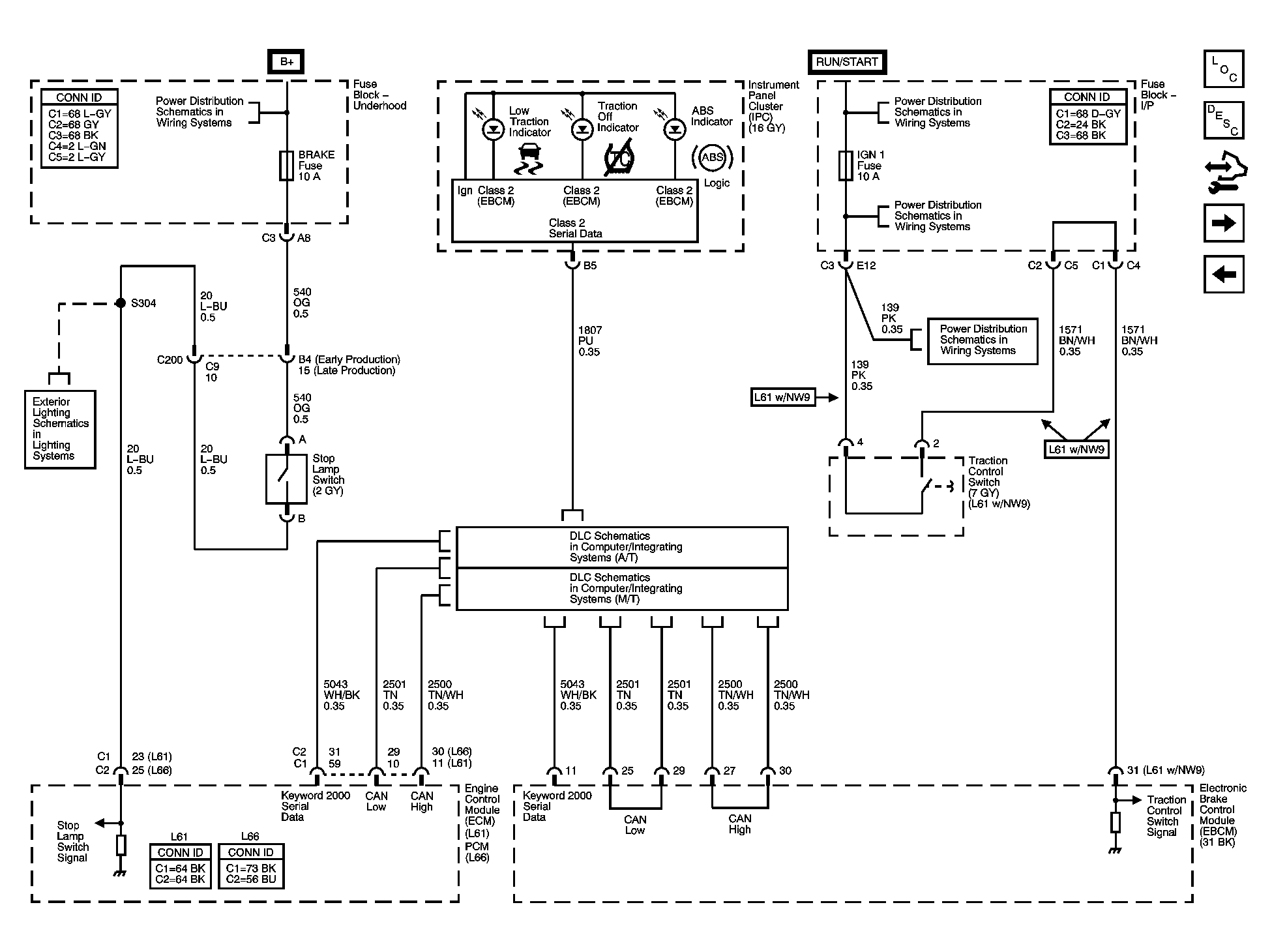

Fig 2: TC Switch, Indicators, and Stop Lamp Switch
Courtesy of GENERAL MOTORS CORP.

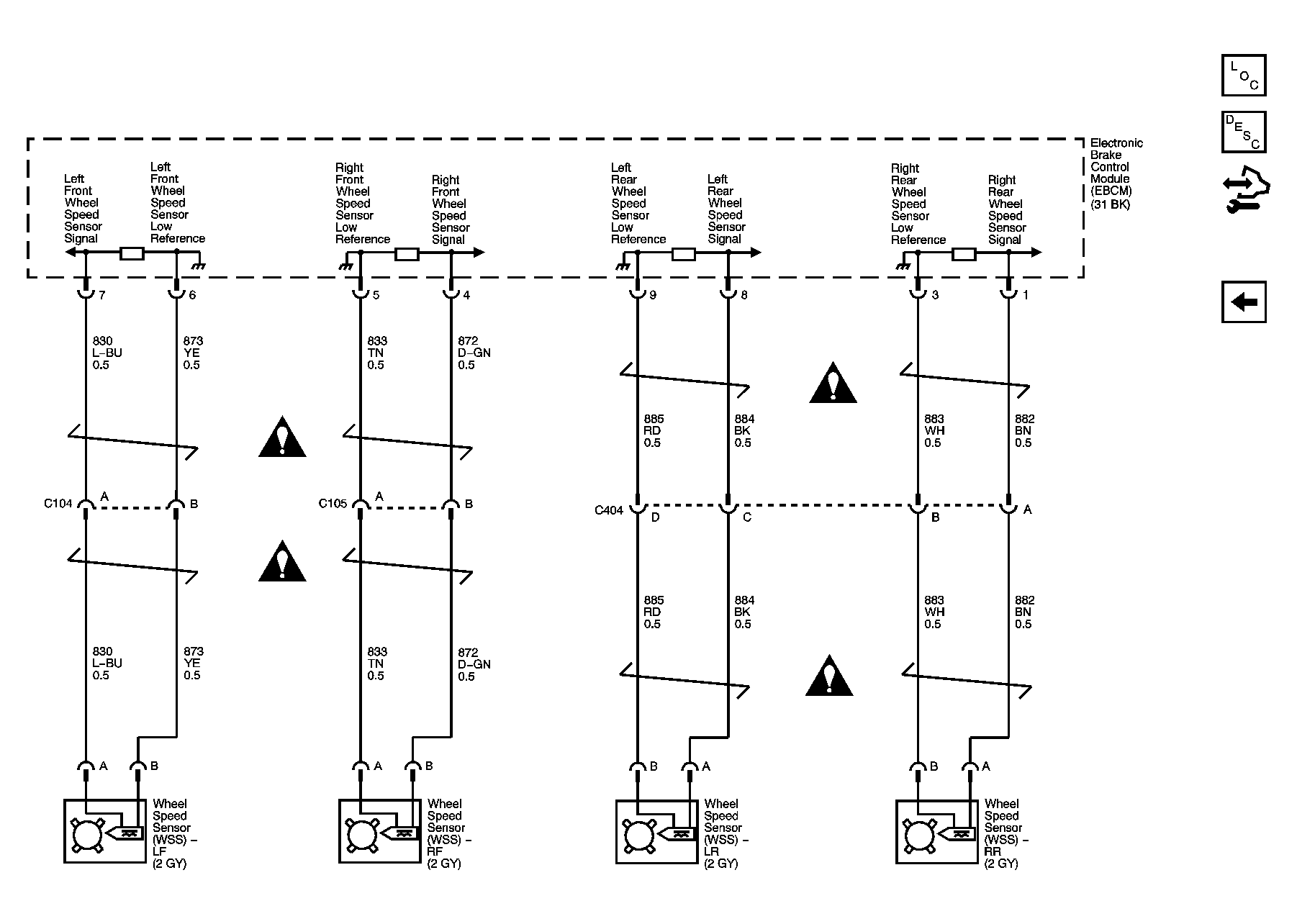

Fig 3: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
