Installation Procedure

  1. Install the EGR valve with a new gasket to the engine.

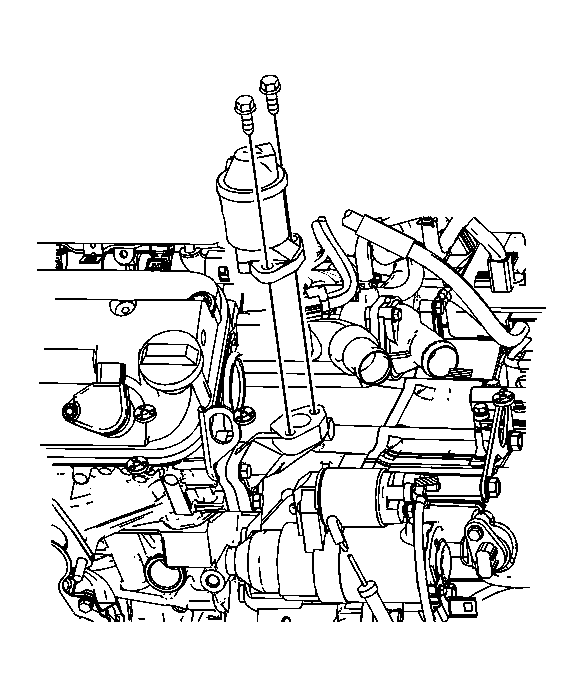

    Fig 1: View Of Exhaust Gas Recirculation (EGR) Valve
    GM1237597Courtesy of GENERAL MOTORS CORP.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the EGR valve nuts.

    Tighten:  Tighten the nuts to 22 N.m (16 lb. ft.).

  3. Connect the EGR valve electrical connector.
