Body Control System Wiring Schematics

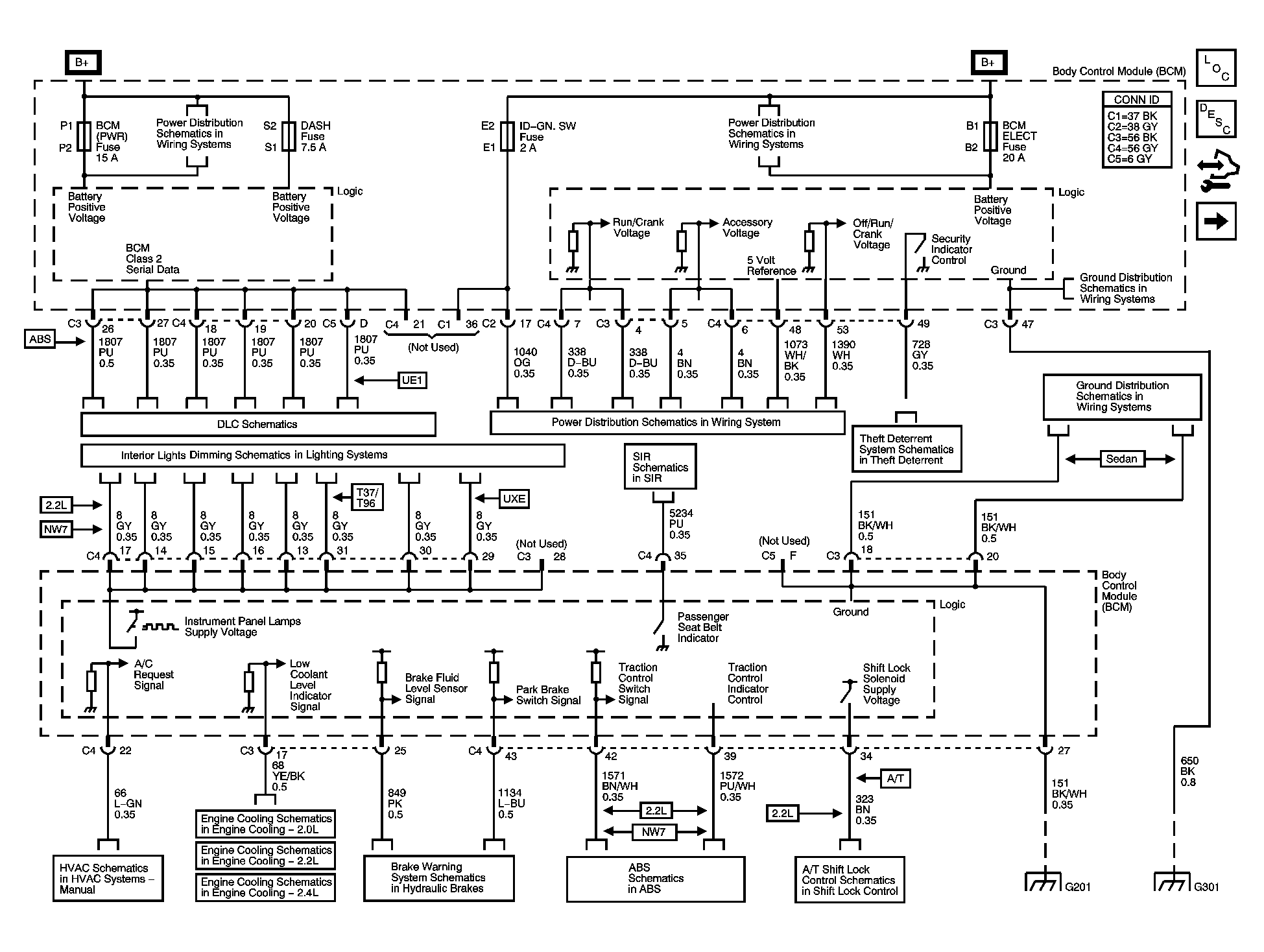

Fig 1: BCM Power, Ground, and References to Brakes, Lights Dimming, DLC, HVAC, Shift Lock, and Theft Deterrent

Courtesy of GENERAL MOTORS CORP.

Fig 2: References to Lighting 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 3: References to Body Rear End, Doors, Horns, and Lighting 2 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 4: References to Rear Defogger and Wiper/Washer

Courtesy of GENERAL MOTORS CORP.
