ABS Schematics

Fig 1: Power, Ground and BPMV Controls Schematic

GM1434115

Courtesy of GENERAL MOTORS CORP.

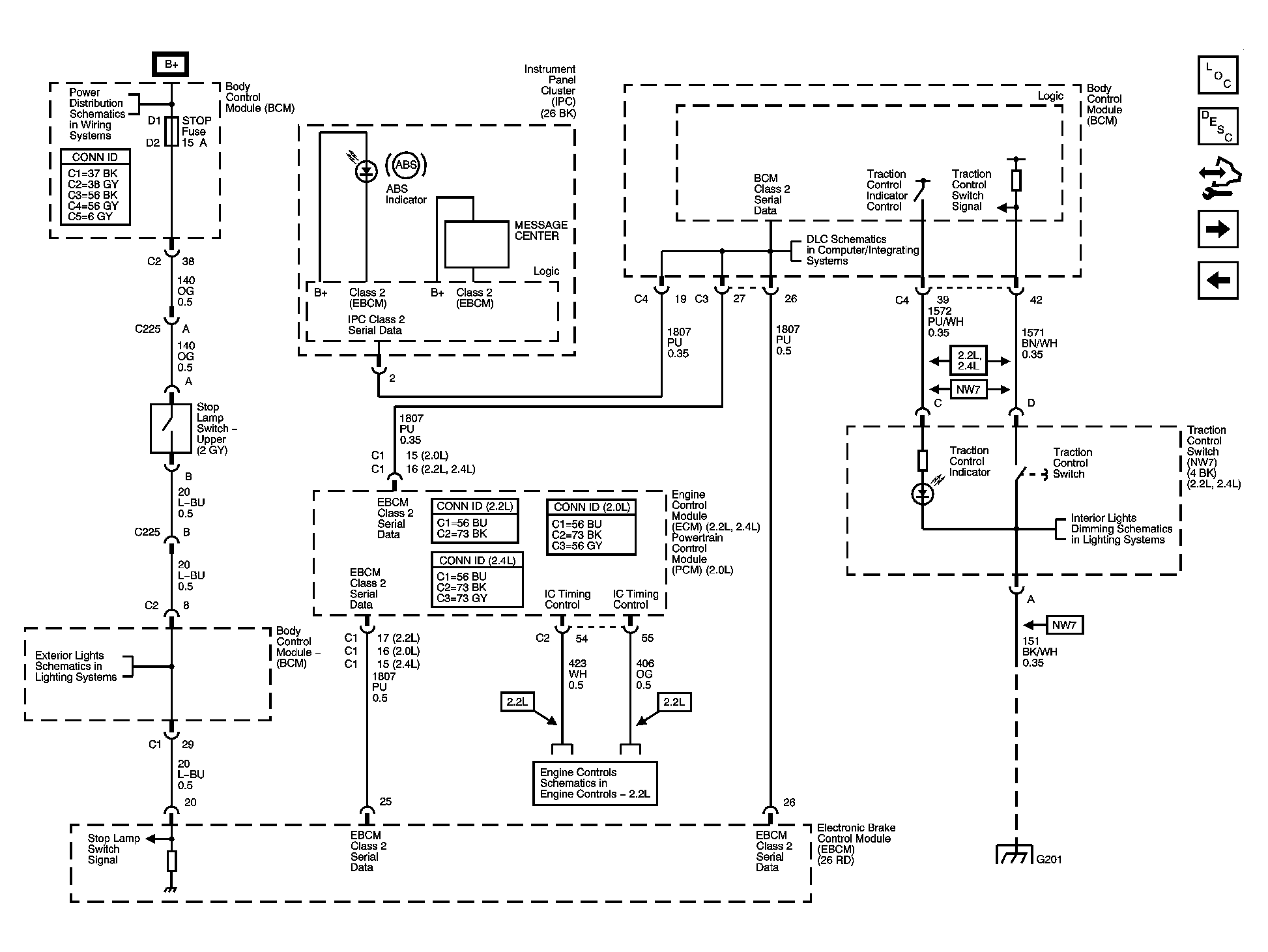

Fig 2: Traction Control, DLC and Indicators Schematic

GM1592461

Courtesy of GENERAL MOTORS CORP.

Fig 3: Wheel Speed Sensors Schematic

GM1470969

Courtesy of GENERAL MOTORS CORP.
