Driver Information Center Replacement

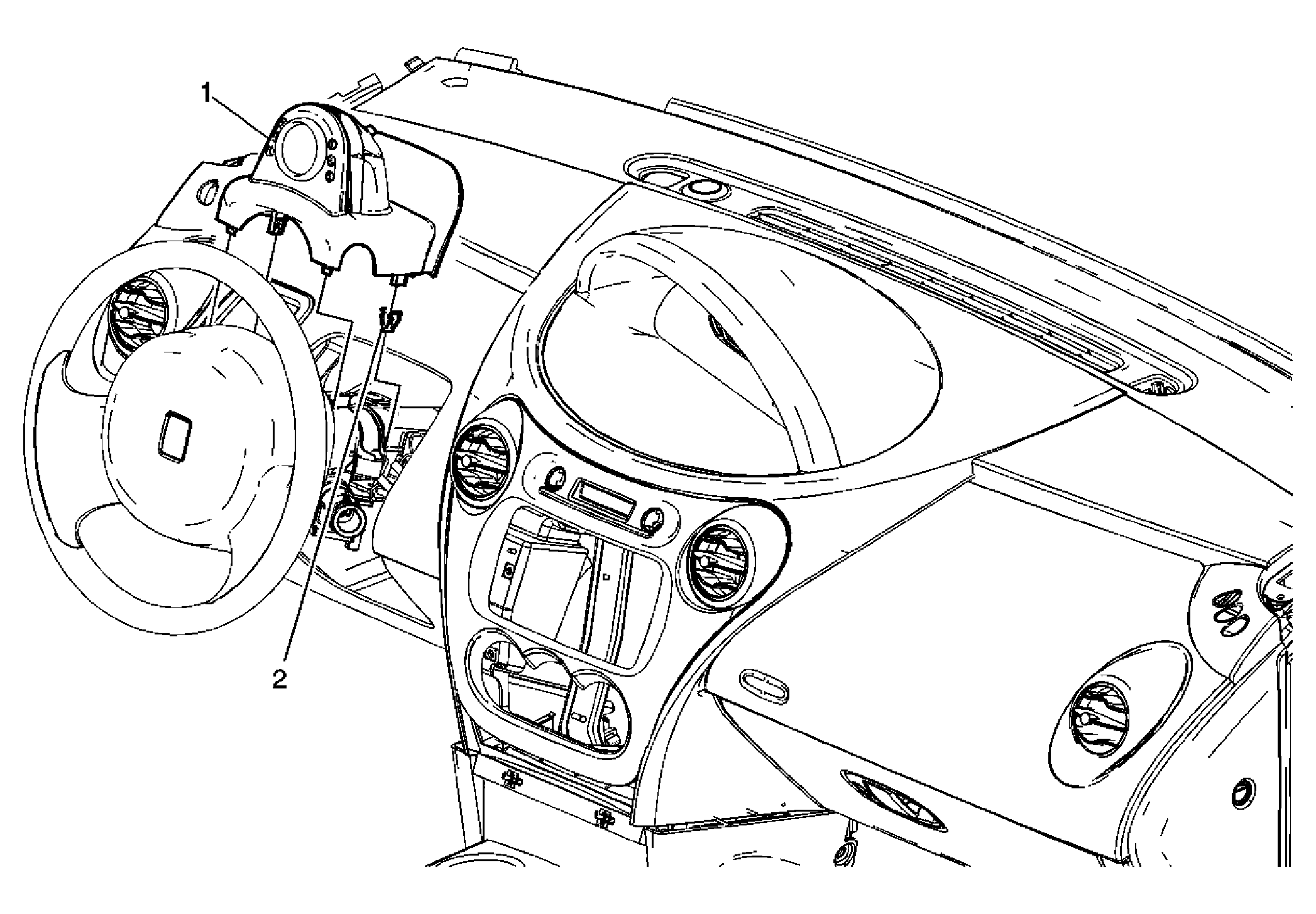

Fig 1: IdentifyingDriver Information Center

Courtesy of GENERAL MOTORS CORP.

Driver Information Center Replacement

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Driver Information Display Assembly Tip:  Pull the display assembly upward to disengage the retainers. Disconnect the electrical connector.
2	Retainer Clip (Qty:4)
