Engine Controls Schematics

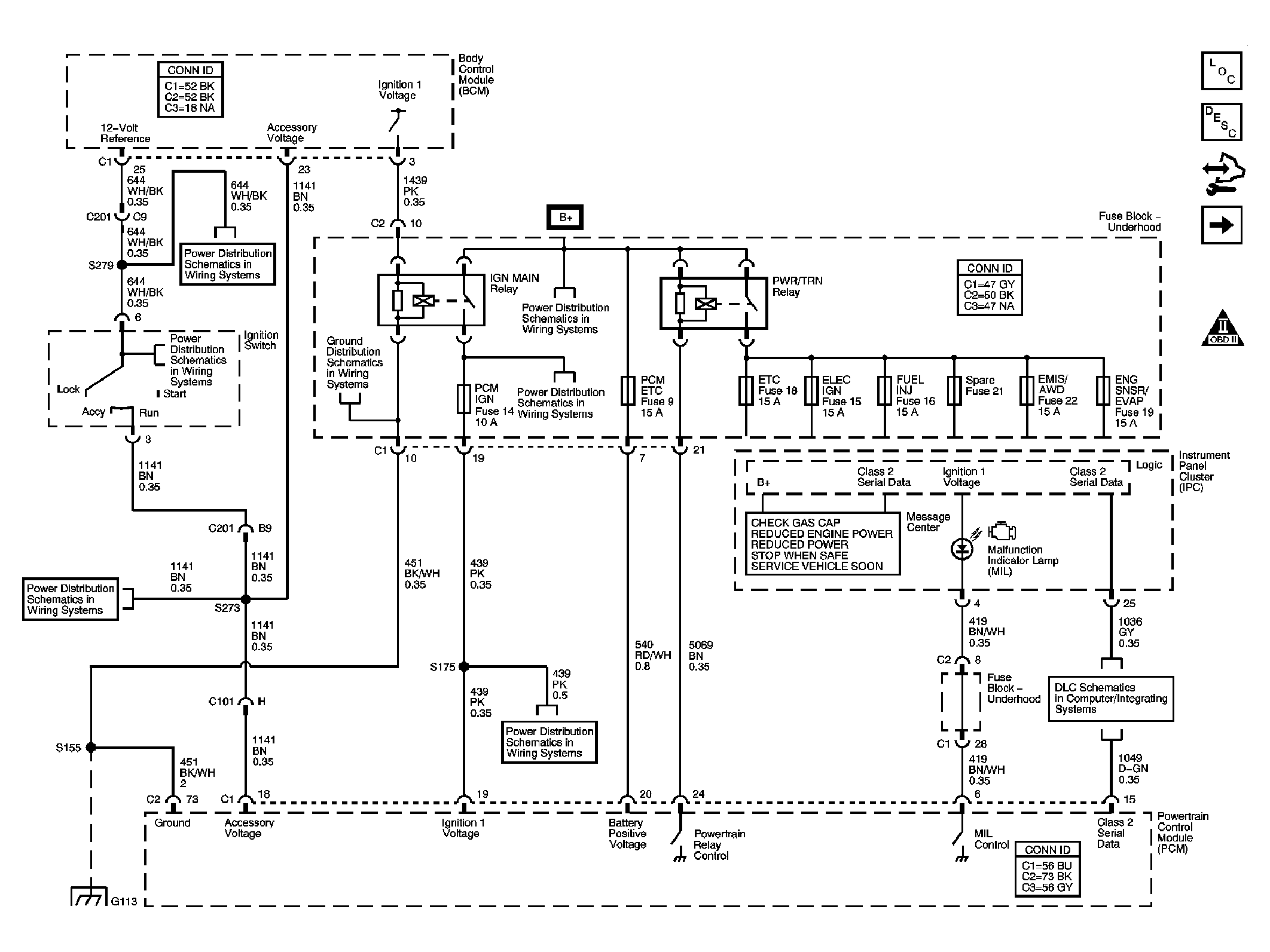

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

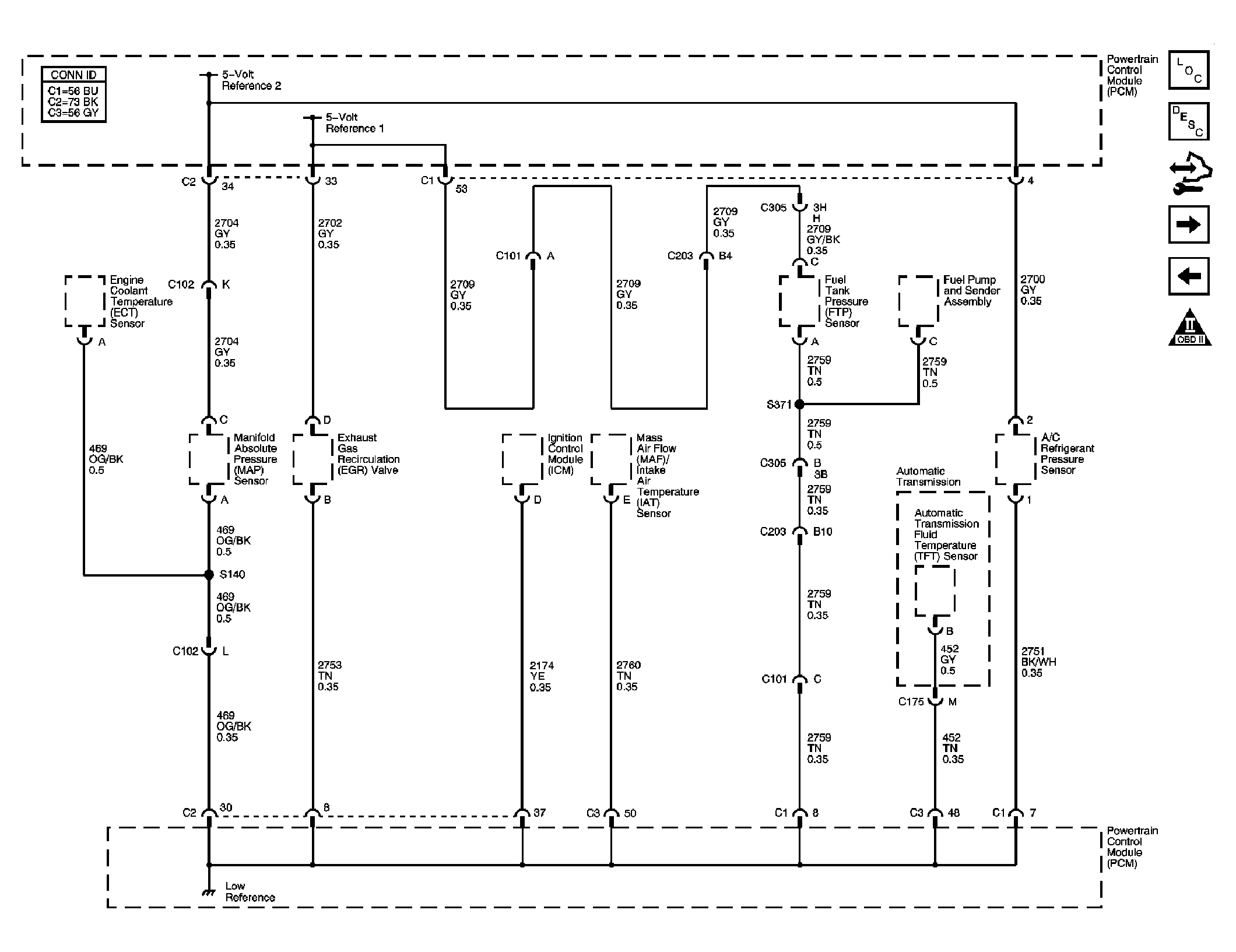

Fig 2: Engine Data Sensors Schematic - 5-Volt & Low Reference

Courtesy of GENERAL MOTORS CORP.

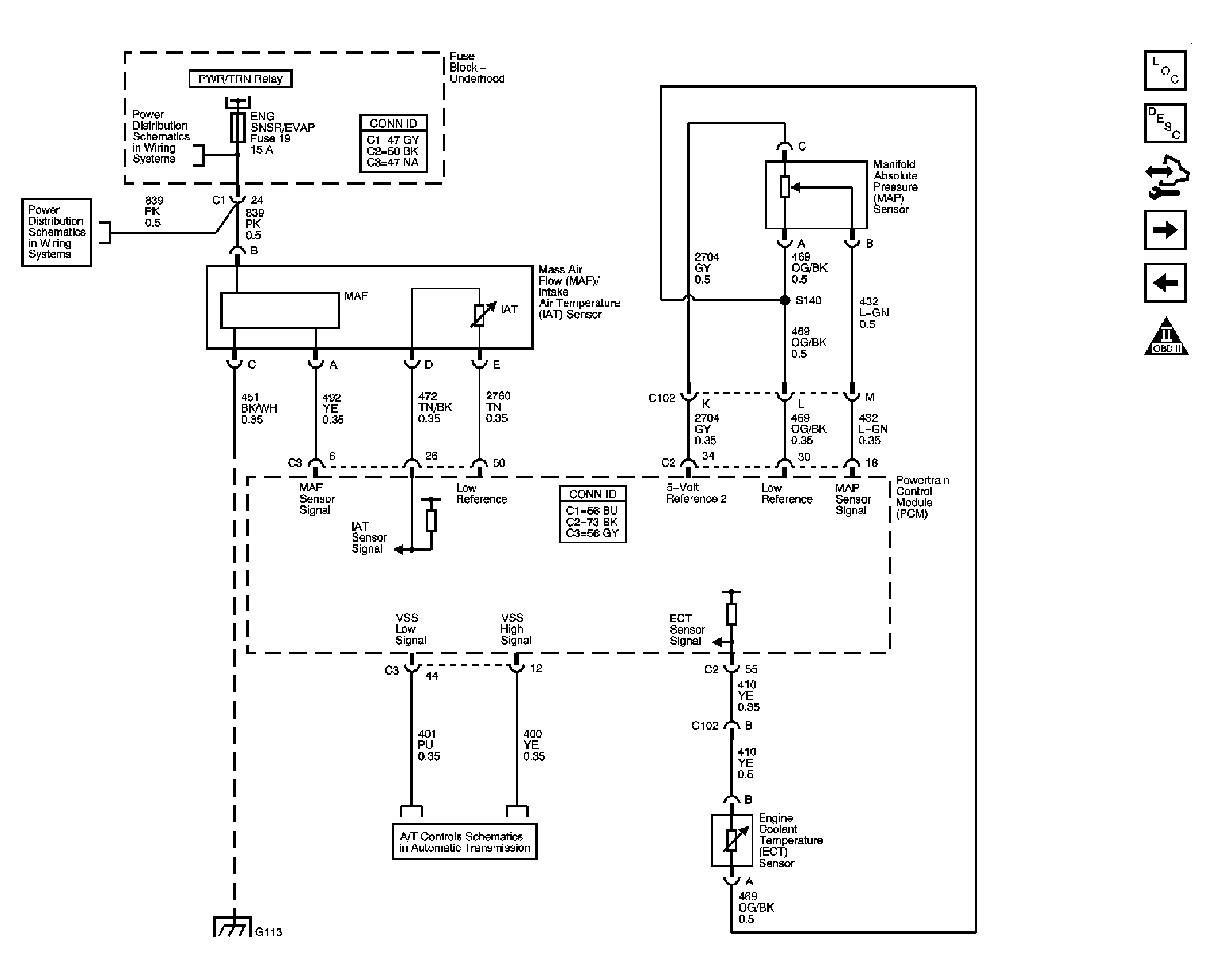

Fig 3: Engine Data Sensors Schematic - MAF, Pressure, Temperature & VSS

Courtesy of GENERAL MOTORS CORP.

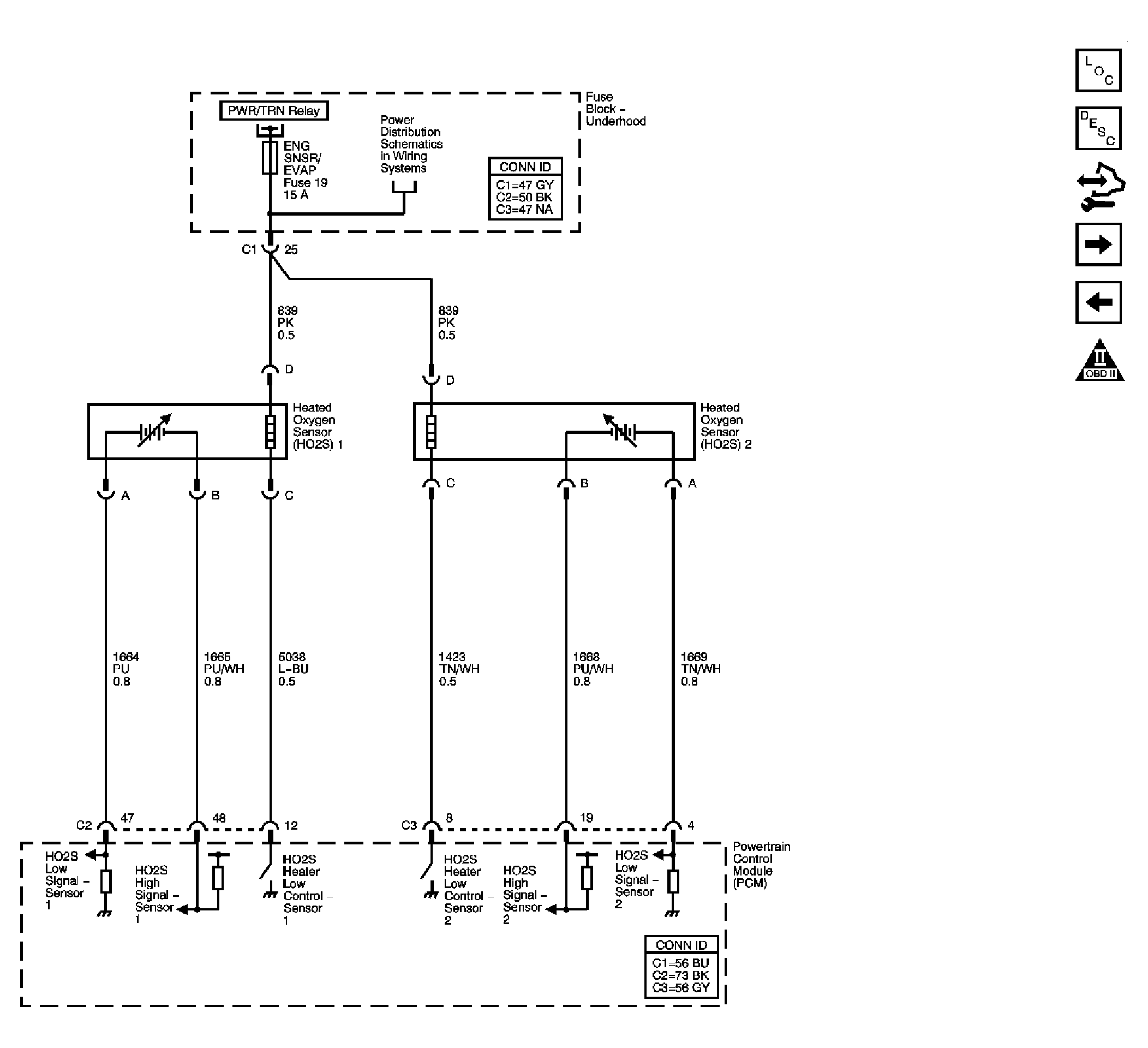

Fig 4: Engine Data Sensors Schematic - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

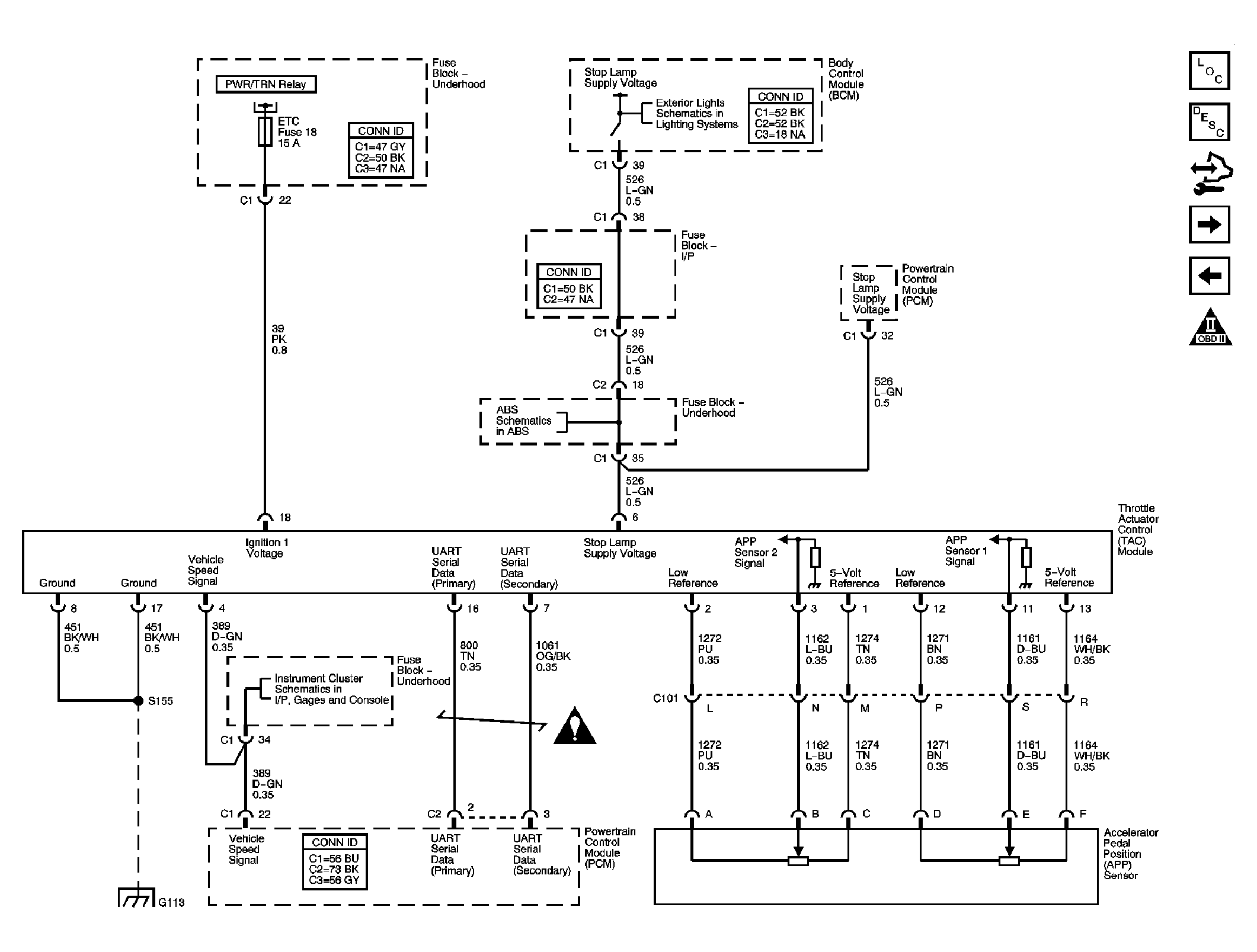

Fig 5: Engine Data Sensors Schematic - Throttle Actuator Controls

Courtesy of GENERAL MOTORS CORP.

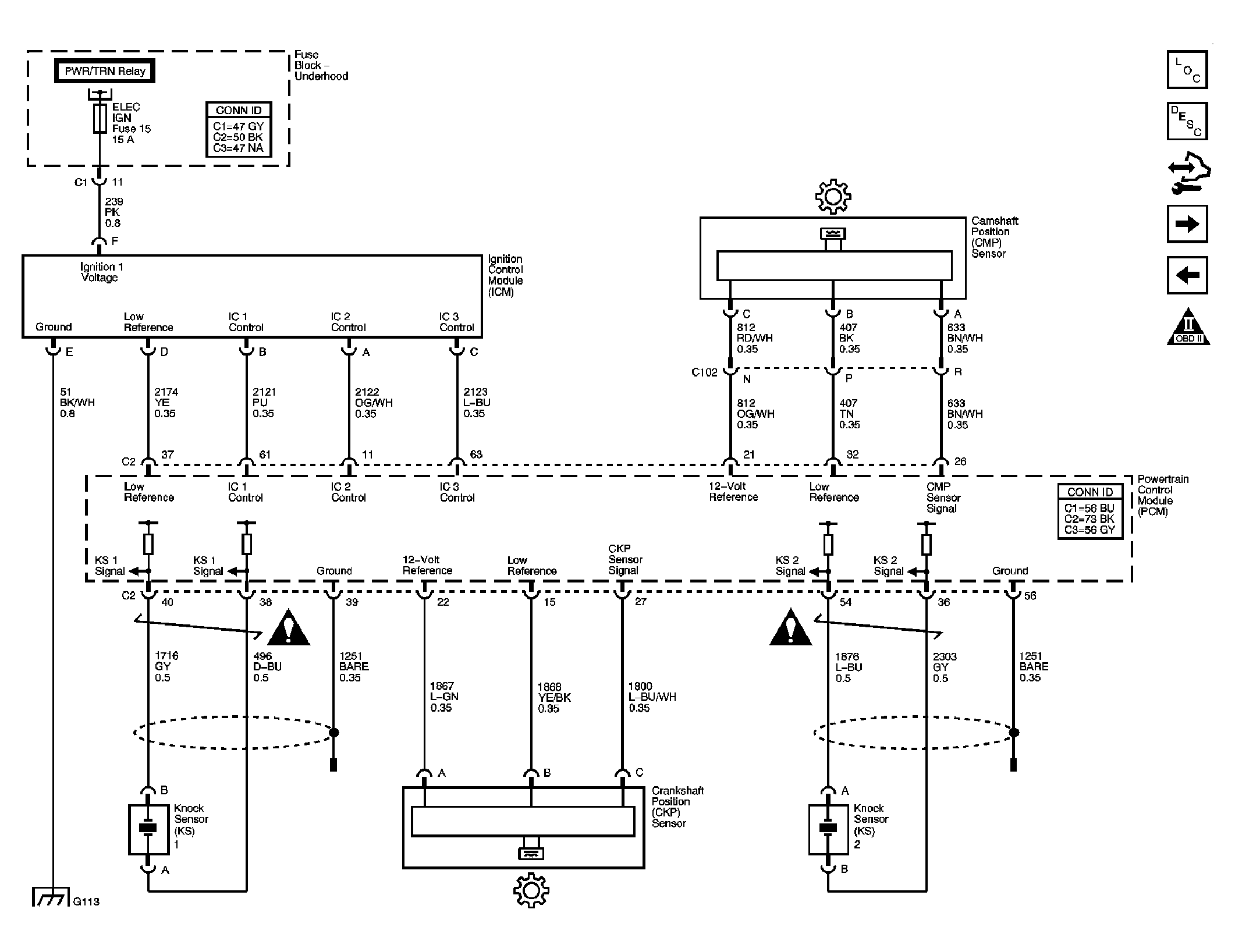

Fig 6: Ignition Controls Schematic - Ignition System

Courtesy of GENERAL MOTORS CORP.

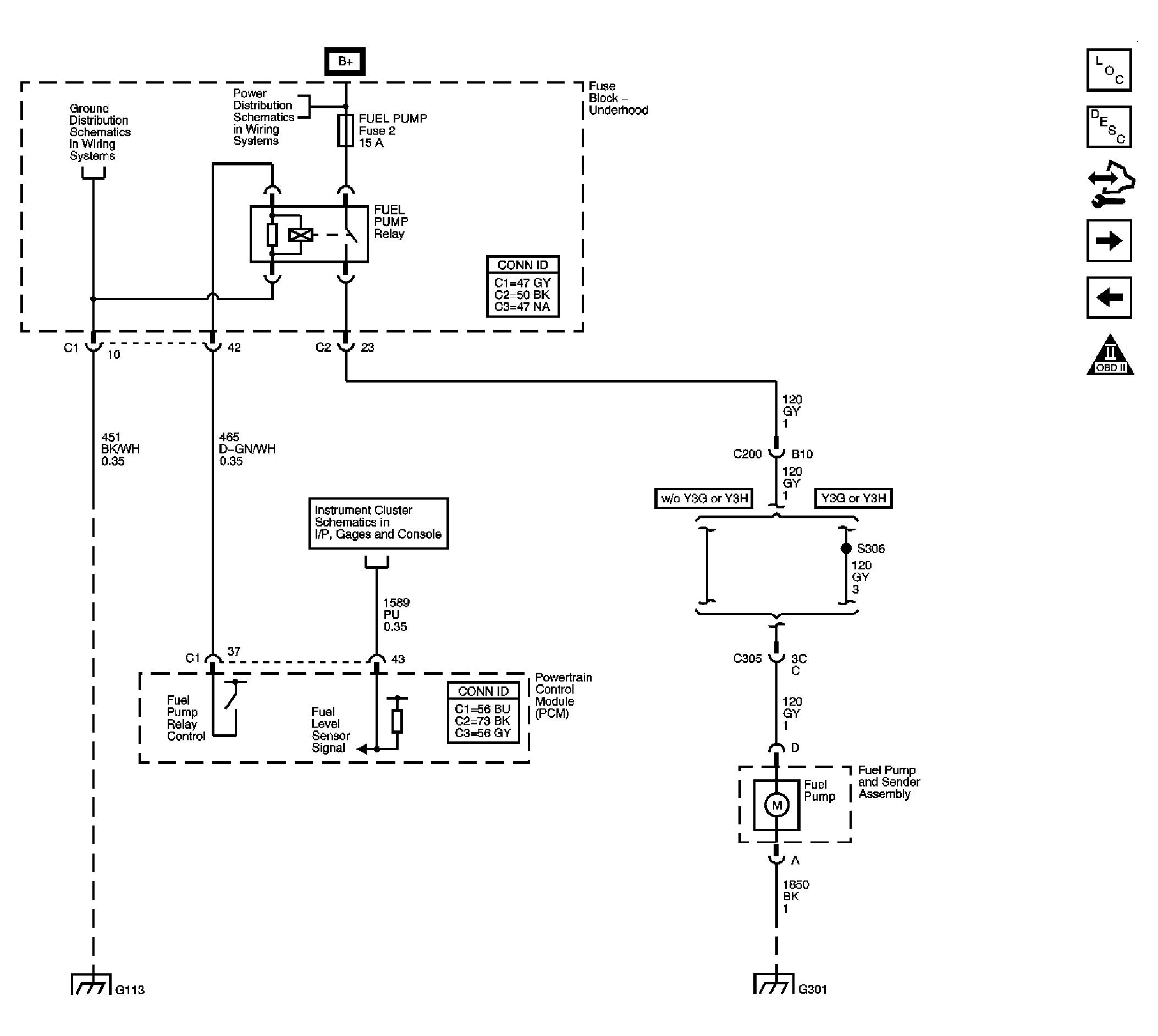

Fig 7: Fuel Controls Schematic - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

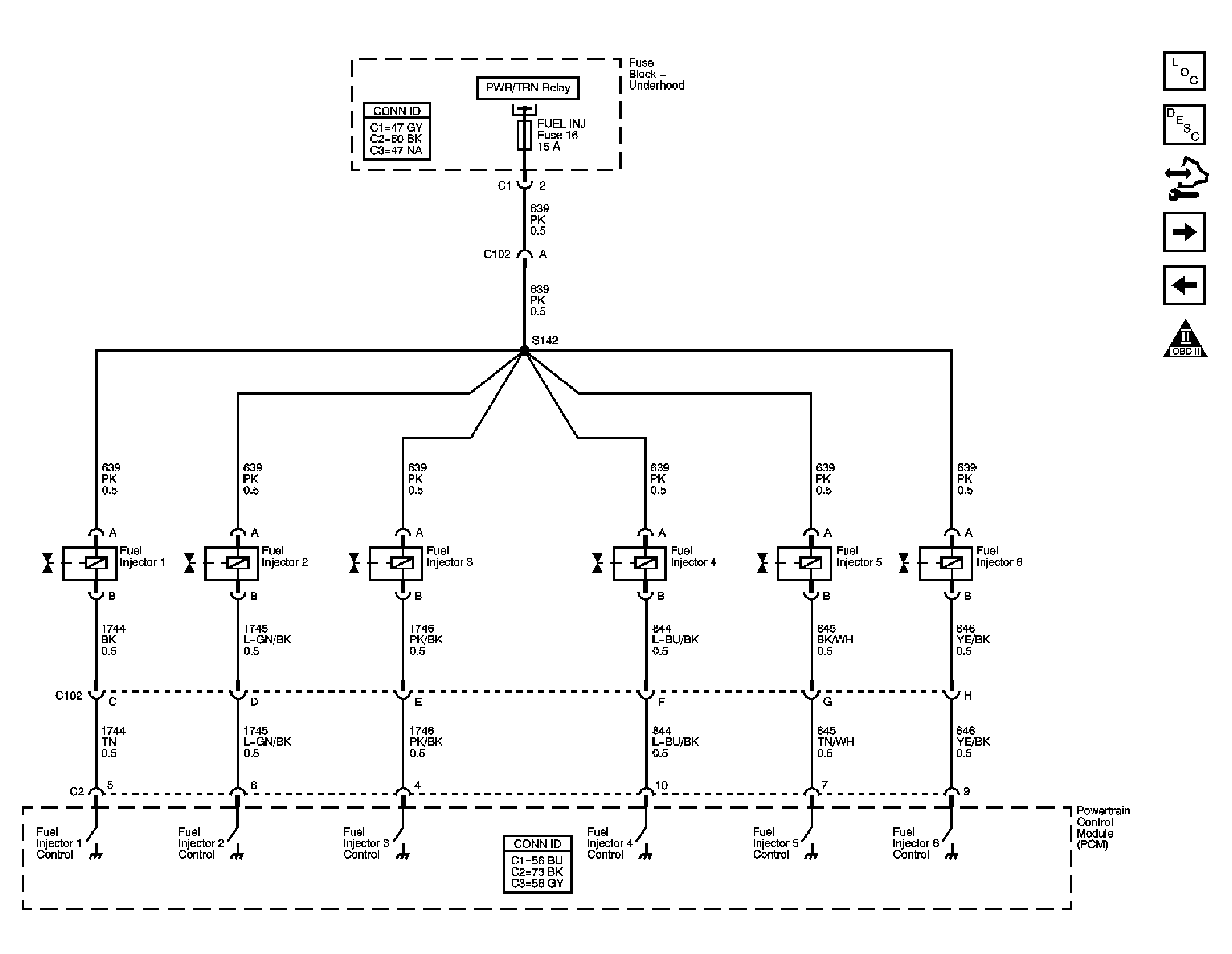

Fig 8: Fuel Controls Schematic - Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

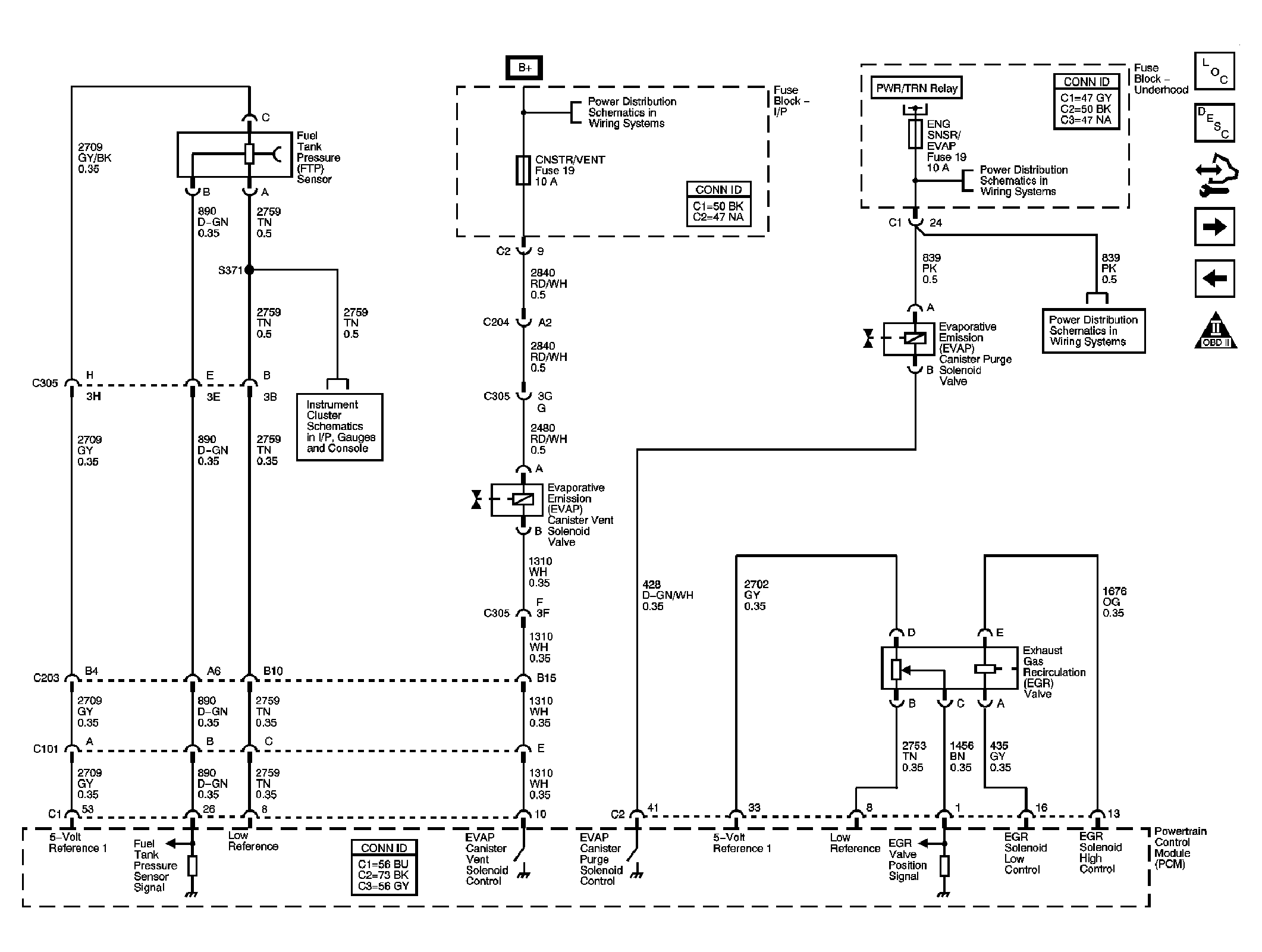

Fig 9: Fuel Controls Schematic - EVAP Controls

Courtesy of GENERAL MOTORS CORP.

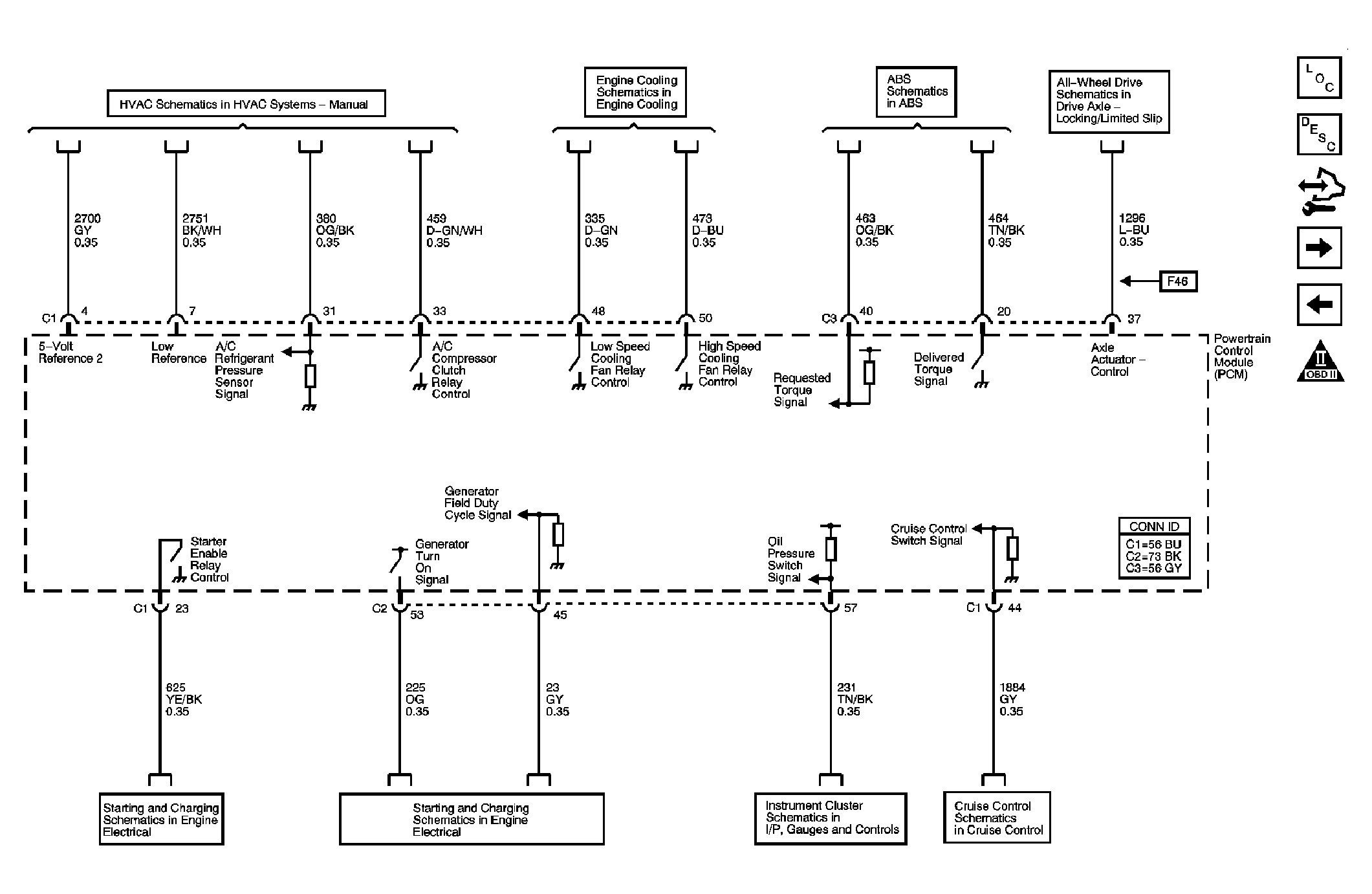

Fig 10: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.

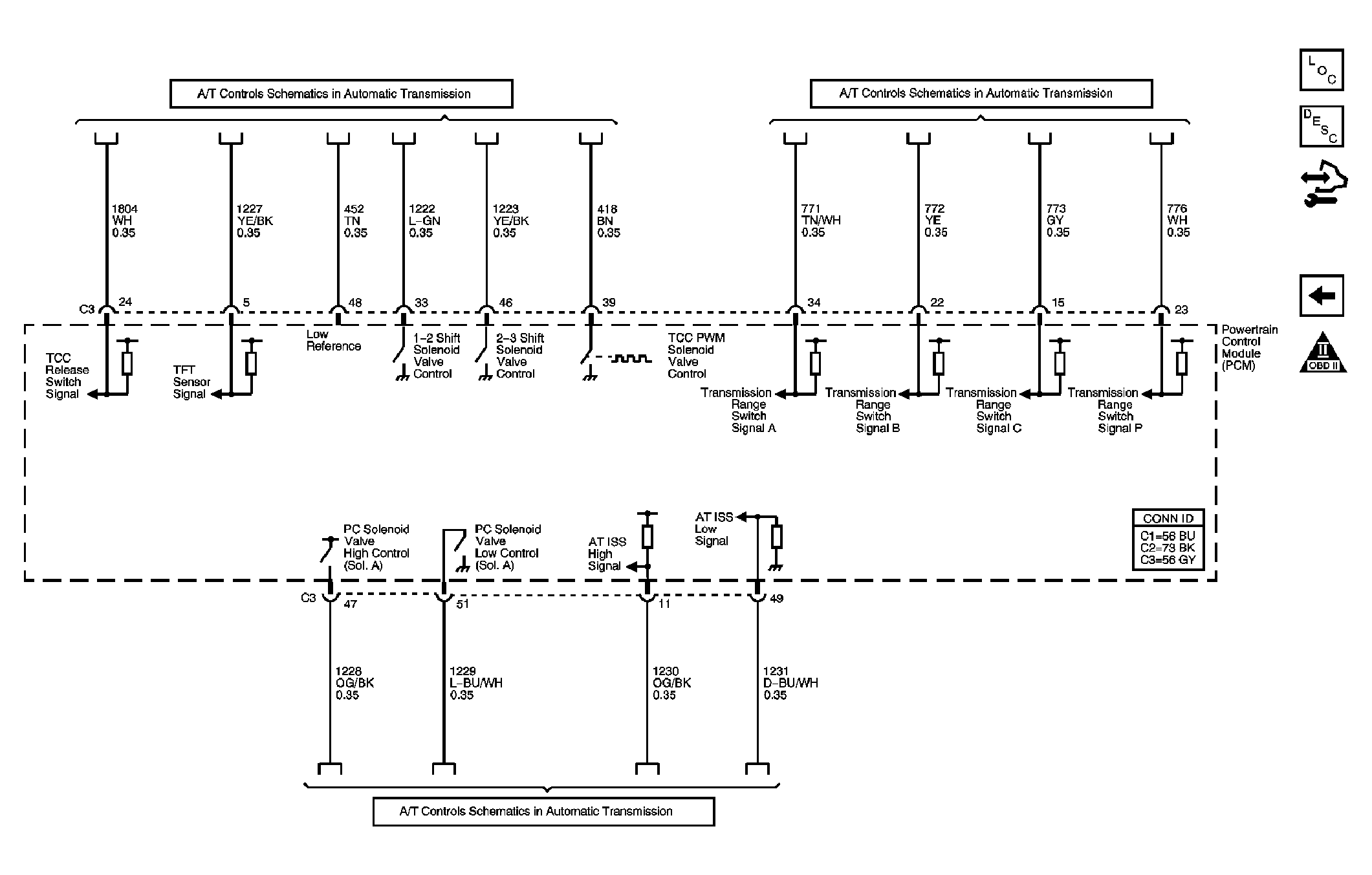

Fig 11: Transmission Controlled References Schematic

Courtesy of GENERAL MOTORS CORP.
