Object Detection Schematics
Object Detection Schematics

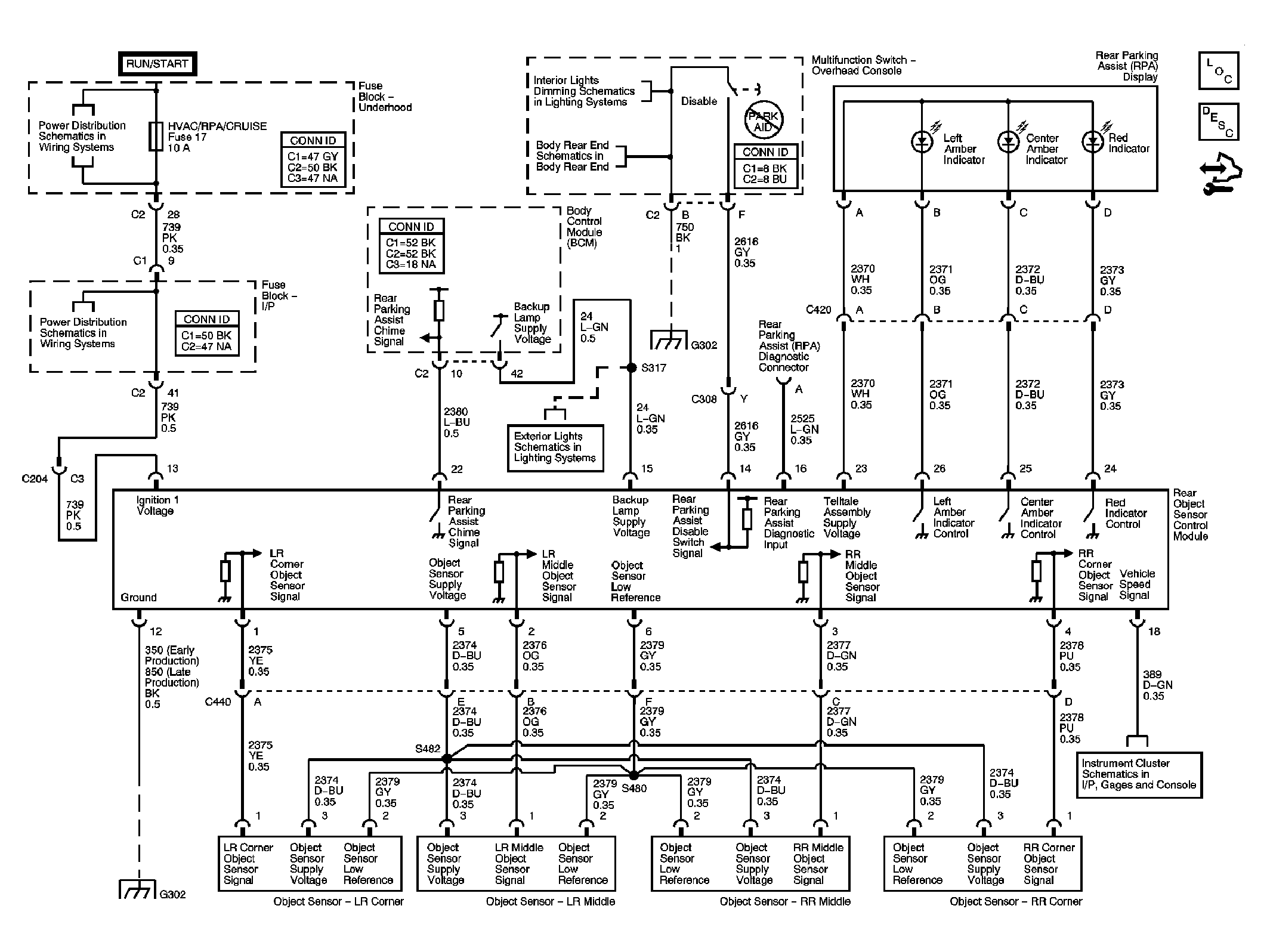

Fig 1: Rear Parking Assist Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
