Data Link Connector Replacement
Data Link Connector Replacement

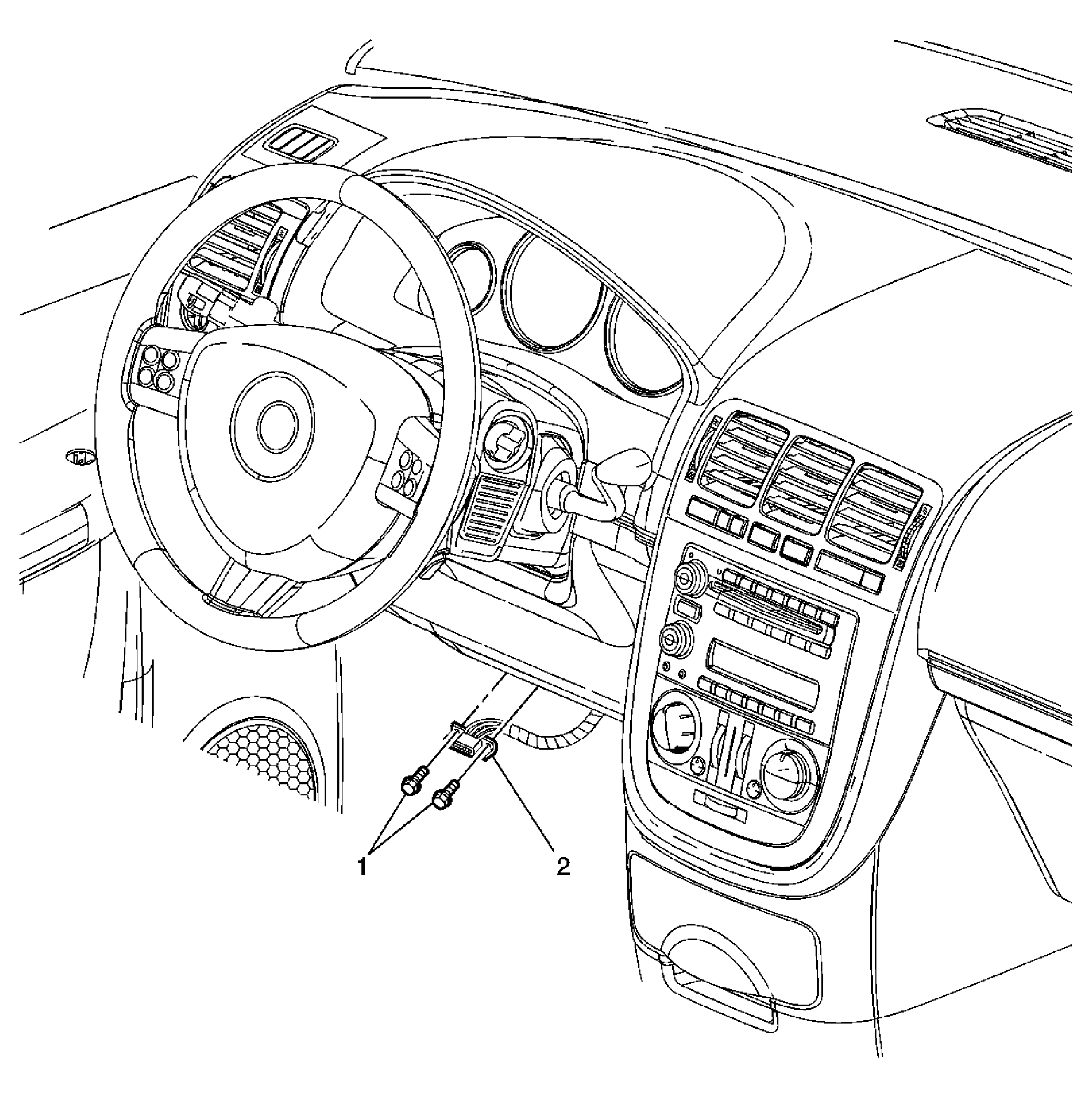

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the driver side instrument panel (I/P) insulator. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel
in Instrument Panel, Gages, and Console. |
|
| 1 | Screws, Data Link Connector (Qty: 2) Tighten: 2 N.m (18 lb ft) |
| 2 | Connector, Data Link |
